13.2 Operating Panel Assembly

(NEMA 4/NEMA 12 Operation Panel - Standard)

-O

3.125(79)

0.094(2)X
Typ. both
sides

liX

7.125

- (181)

6.438

(164)

-0.344(9)

Typ. both
sides

3.313(84)

O

TYP (4) 0.203(5)

CUTOUT FOR TOUCH-PAD

OPERATION PANEL IN DOOR

(FRONT VIEW)

Connect to
terminal CN11
on the controi
board

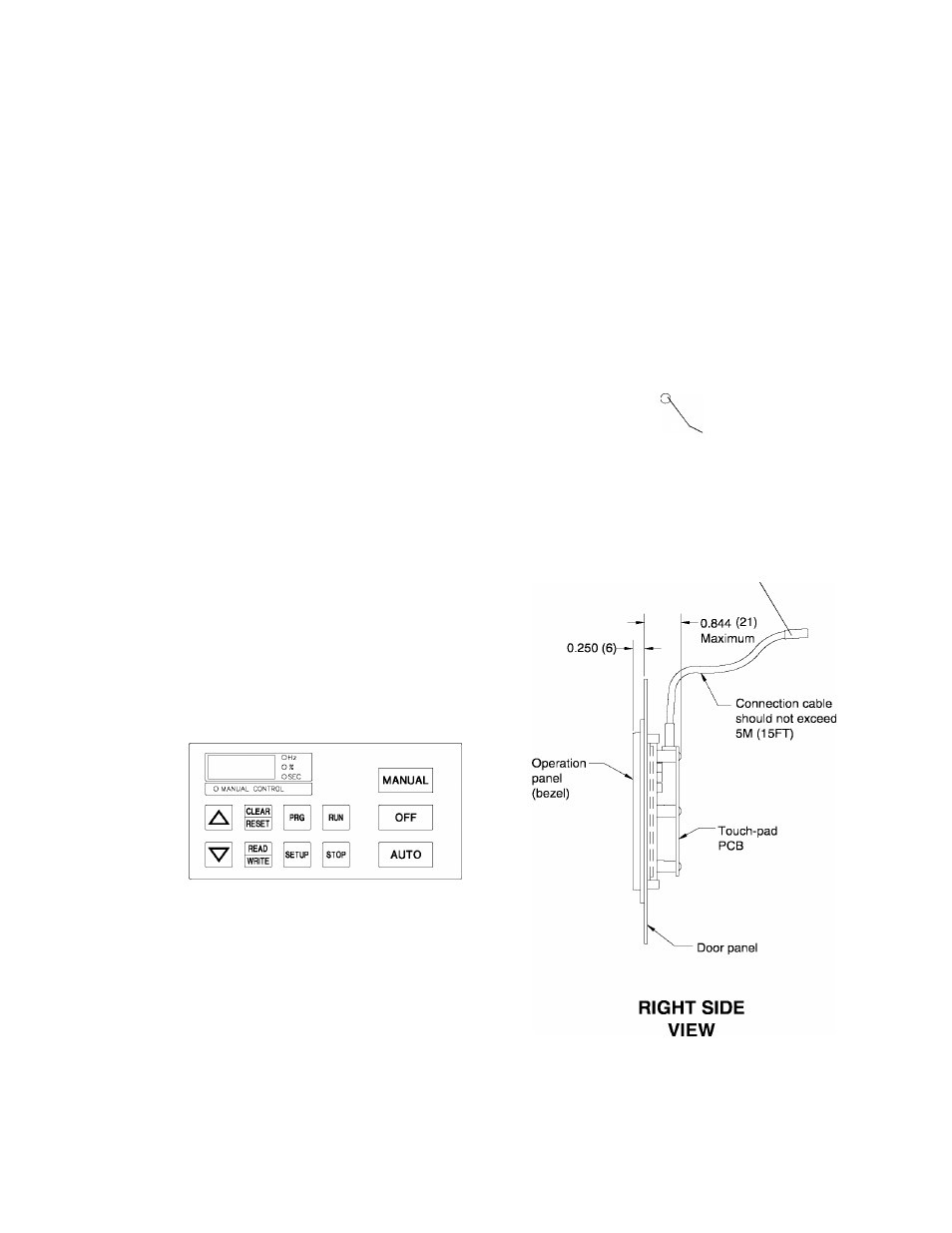

FRONT VIEW OF

TOUCH-PAD

OPERATION PANEL

DIMENSIONS ARE IN INCHES(MILLIMETERS)
