TOSHIBA

4.0 Wiring

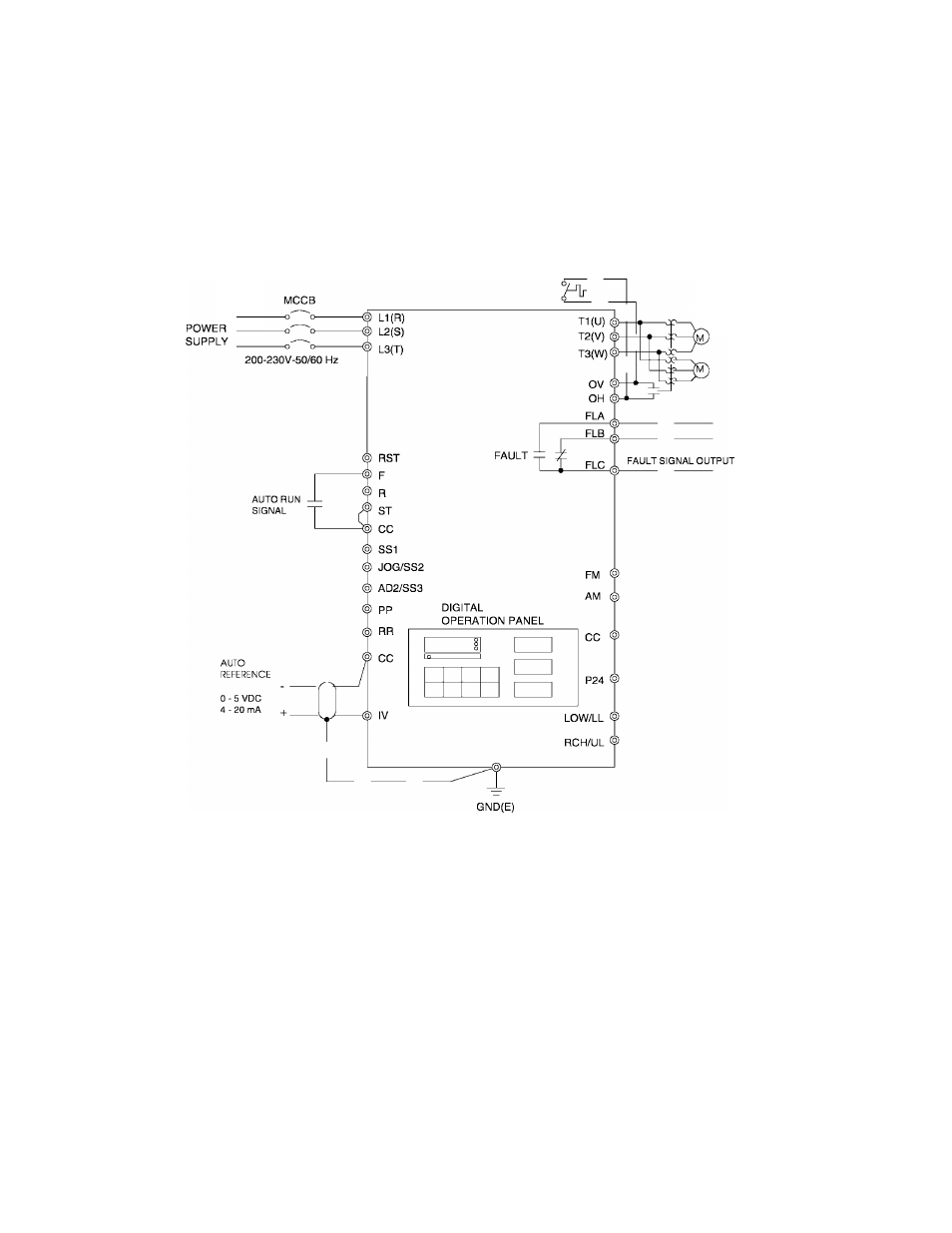

4.1 Simple Connection Diagrams

Q-FLOWSAVER II

STANDARD CONNECTION

MODEL 2035 TO 2330

Notes:

1)

For control/driver terminal block layout see Page 5-5.

2)

For recommended wire sizes see Page 4-3.

3)

For terminal connections and functions see Page 5-6 through 5-8.

4)

Contact Toshiba when interfacing with a process controller.

4 - 1
