A-1 Specifications
-3
Ap
pend
ices
‹ Keyboard
Keyboard input cannot be accepted while reading the barcode
‹ RS-232C

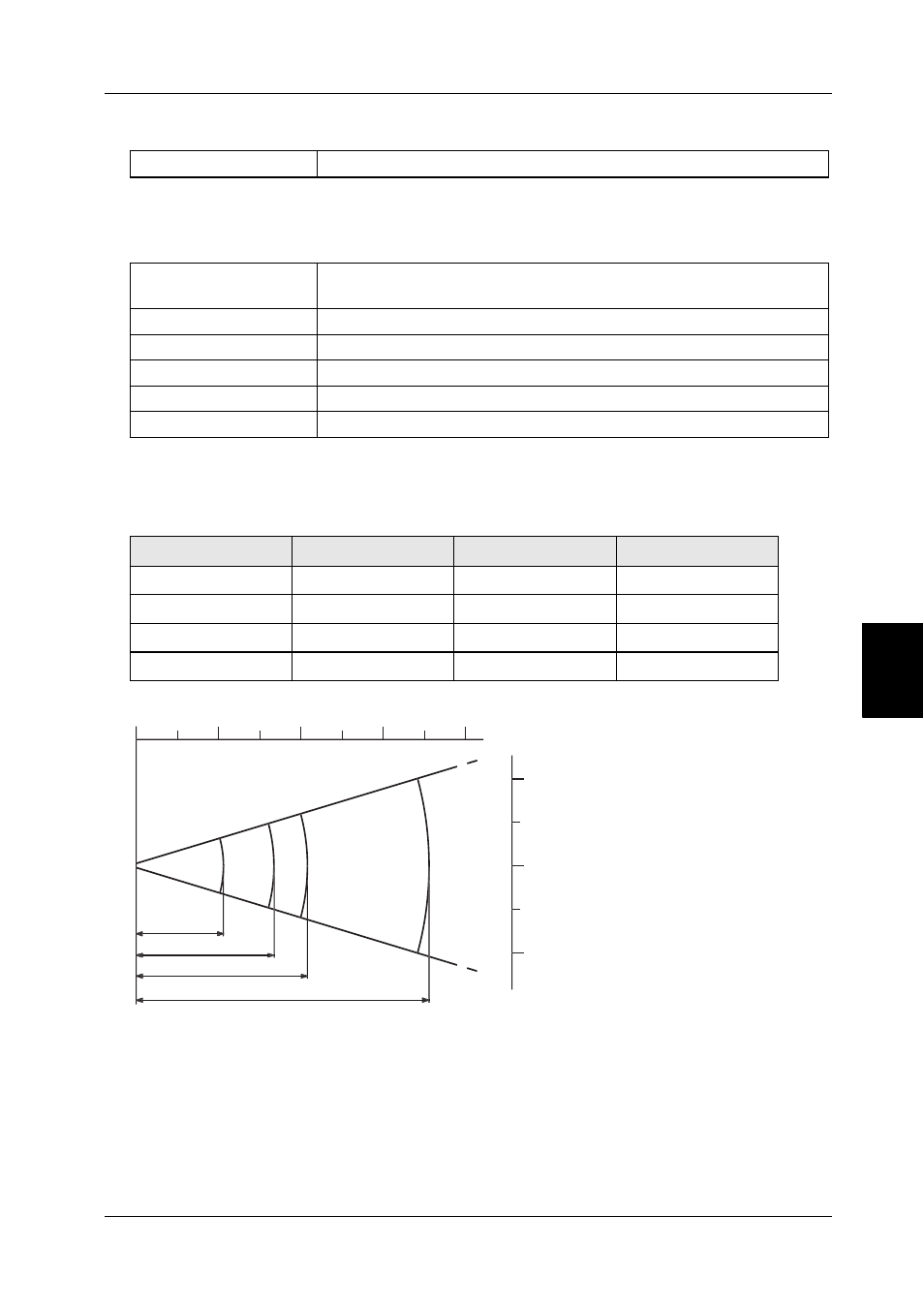

z Reading range characteristics (typical)
(units: mm)
‹ Measurement condition
• Measured using the Keyence standard barcode
• Ratio of narrow bar to wide bar = 1:2.5
• Skew : 15
°
• Pitch : 0
°
• Tilt : 0
°
Compliant languages 106 Japanese, 101 English
Synchronization
method
Start-stop synchronization
Transmission code ASCII code
Baud rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 bit/s
Data length 7/8 bit
Parity check None/Even/Odd
Stop bit 1/2 bit
Code type Code type Narrow bar width Reading distance
A CODE39 0.125 53
B CODE39 0.19 83
C CODE39 0.25 104
D CODE39 0.66 178
0 50 100 150 200
100
0
100
A
B
C
D
Reading
distance (mm)
Reading width (mm)
