2-2
2
Conne
ct
ion
s

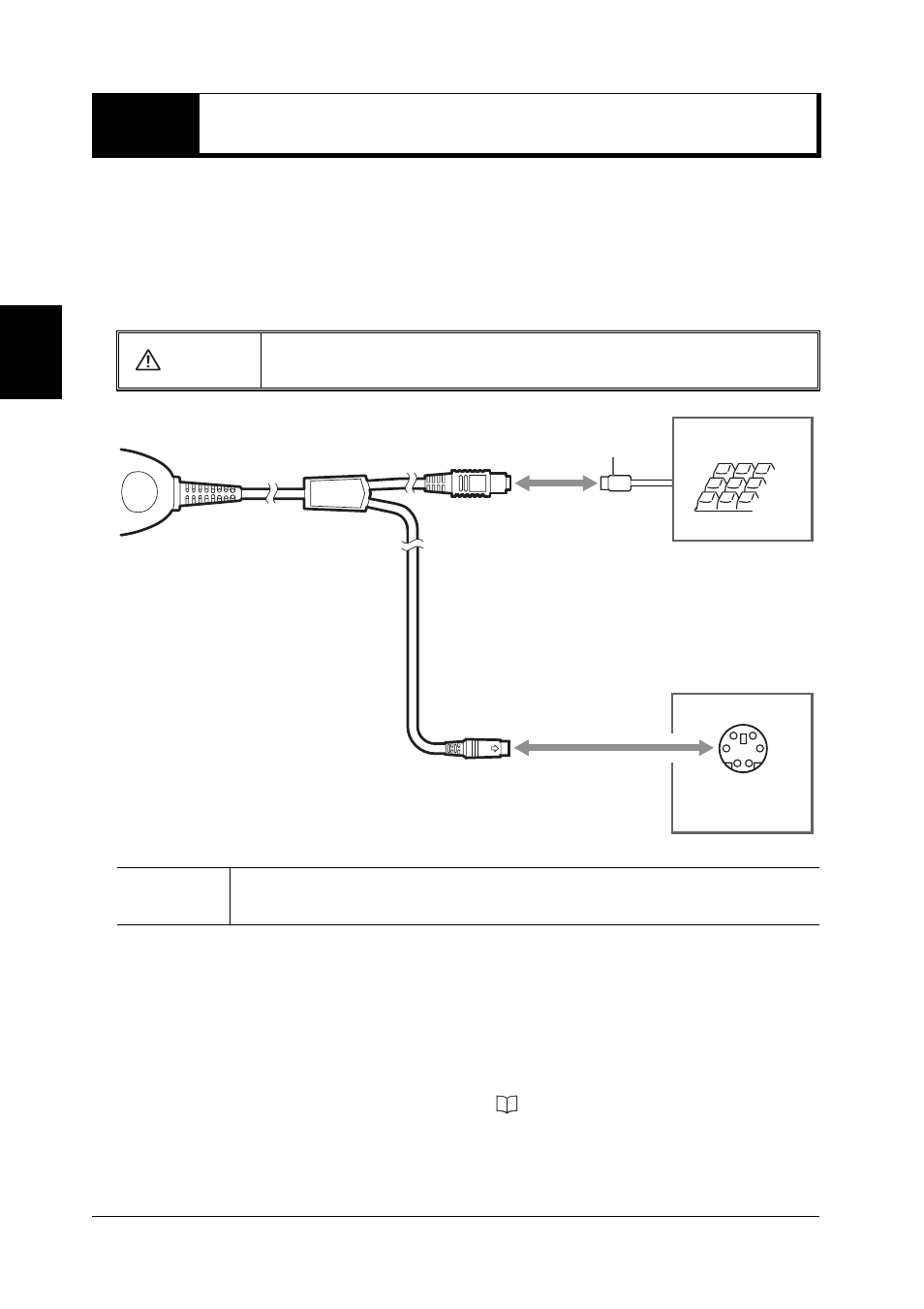

2-1 Connecting the BL-N70V E
Turn off main power to the PC before proceeding.
Power for the BL-N70VE will be supplied through the computer's keyboard receptacle.
(BL-N70VE is compatible with PC's running Windows Vista, XP, 2000 or 98)
Connect the 6 pin Mini DIN plug (A) to the computer's Keyboard receptacle.
Connect the 6-pin Mini DIN receptacle (B) to the plug from a Keyboard (if desired).
z Precautions when using the computer
• DO NOT USE THE KEYBOARD WHEN SCANNING BARCODES ! Typing while scanning
barcodes will corrupt the data string.
• If the computer has multiple language settings, make sure that the input mode is set for
half-width alphanumeric characters.
• The keyboard specifications can be selected ( page 3-7).
CAUTION
Do not remove the cables while the computer is turned on as this may cause
the computer or BL-N70VE to malfunction.
Reference
When connecting a keyboard connector plug to an AT connector, use a commercial
AT to PS/2 keyboard conversion adapter for the connection.
PS/2 connector
(Mini DIN 6-pin)
BL-N70VE
PS/2 connector
To computer
To keyboard
(B)
(A)
