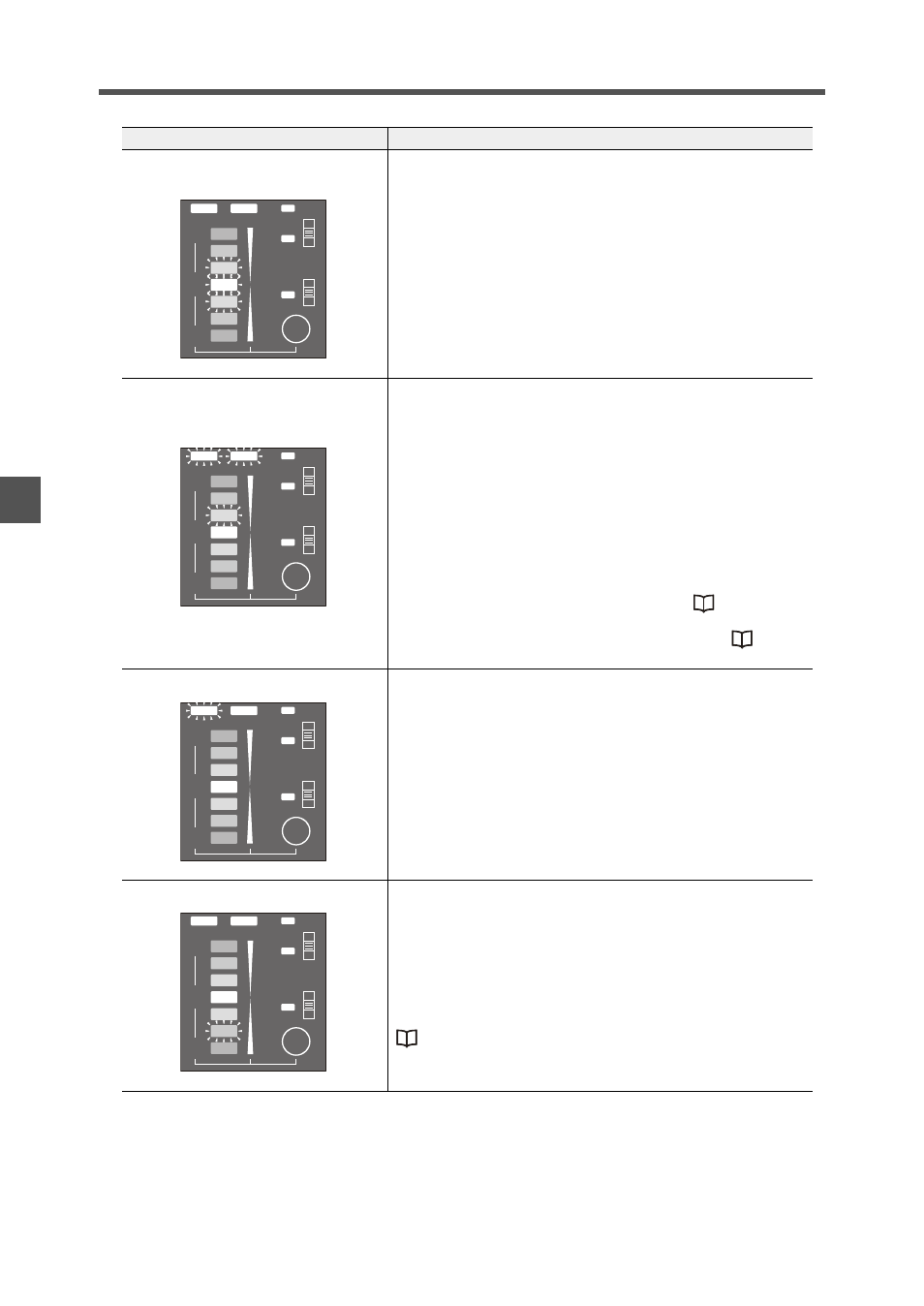

2 Table of Indicated States
A-4
Appe
ndi
ces
The three center LEDs of the ion monitor
blink (red).
Static elimination stop input (operation/display section)
The three center LEDs of the ion monitor blink (red) when the two
ion balance adjustment keys are pressed and held down at the
same time for about three seconds to stop static elimination.
The state (charged level indication or ion
level indication) that was active before
static elimination stop input is displayed. Static elimination stop input cancel (operation/ display
section)
Static elimination stop input is canceled when the static
elimination stop input signal is input from the Controller Unit
(operation/display section) and the two ion balance adjustment
keys are both held down for about three seconds. When this
operation is performed, the state (charged level indication or ion
level indication) that was active before static elimination stop input
is returned to.
Note, however, that in an alarm state, the LEDs blink according to
the cause of the alarm.
For details on how to input static elimination stop from the
Controller Unit (operation/display section), see
"Static
elimination stop input (operation/display section)" (page A-4).
For details on the display when an alarm occurs, see
"During
an alarm (levels 1, 2)" (page A-6).
The ion balance indicator blinks.
Start ion balance manual setup
Ion balance manual setup is started and the ion balance indicator
blinks by holding down the display selector key for about three
seconds.
One of the ion monitor LEDs lights.
Ion balance manual setup
During ion balance manual setup, press the ion balance
adjustment key to set the zero point.
During this operation, the LED on the ion monitor
corresponding to the set value lights.
For details on how to start ion balance manual setup, see
"Start ion balance manual setup" (page A-4).
Lit State Description
+
–
0
BALANCE ION
ION
LEVEL
COND
DISP
ALARM
H
M
L
H
M
L
+
–
0
BALANCE ION
ION
LEVEL
COND
DISP
ALARM
H
M
L
H
M
L
+
–
0
ION
ION
LEVEL
COND
DISP
ALARM BALANCE
H
M
L
H
M
L
+
–
0
BALANCE ION
ION
LEVEL
COND
DISP
ALARM
H
M
L
H
M
L
