1-3 Names and Functions of Parts
1-5
Ab
out
t
he
Stat
ic
Eli
mi
nat
ion
Blo
w
er
Un
it
SJ-F1
00W/
100
/01
0
1
Controller Unit (operation/display section)
+
–
0
BALANCE ION
ION
LEVEL
COND
FAN SPEED
SLOW
24V DC OV ALARM
CONDITION INTERRUPT ION LEVEL
FAST
DISP
H
M
L
H
M
L
ALARM
SJ-F100W
ION BALANCE
ADJUST

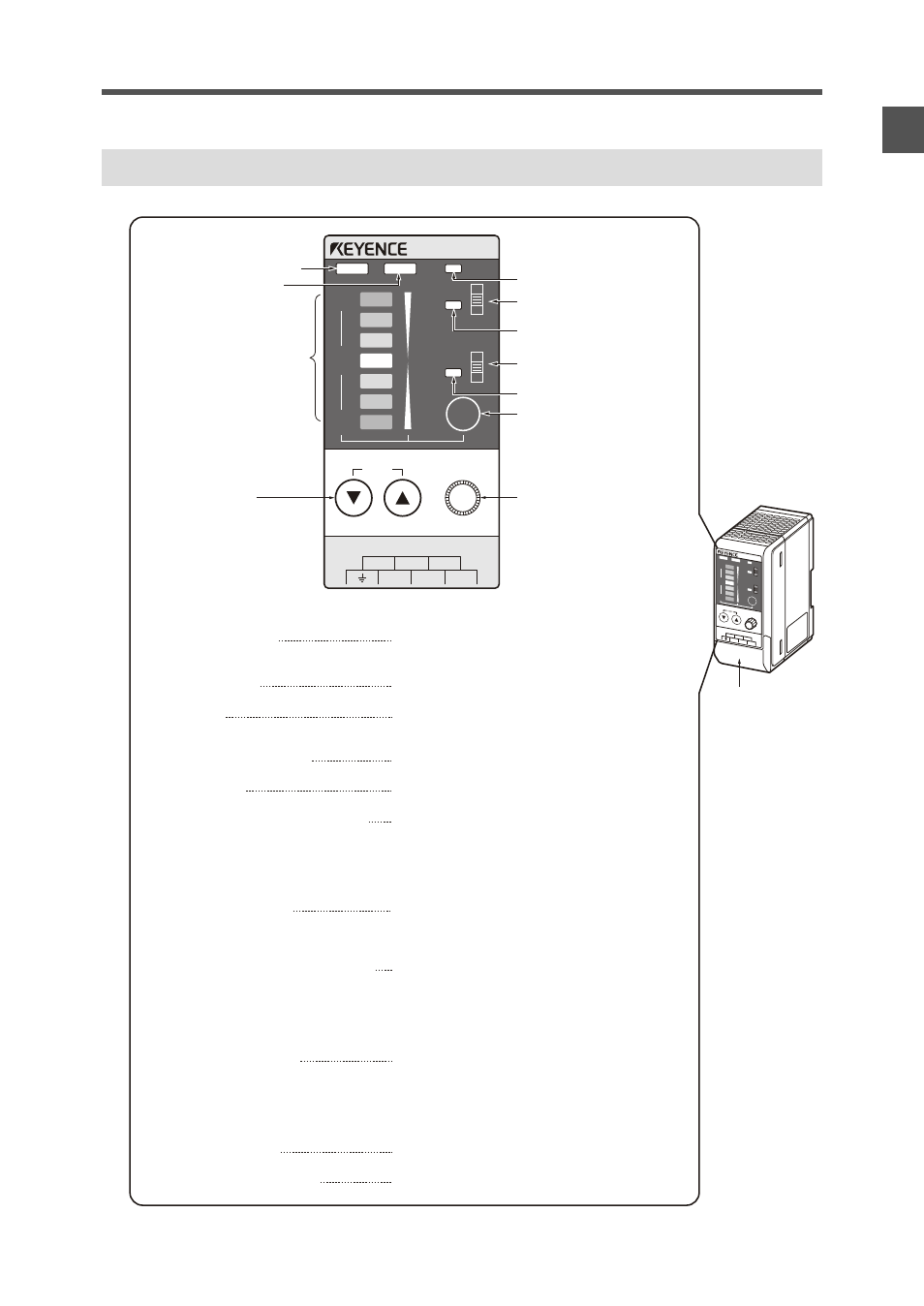

Enlarged view of front panel display
Terminal plate cover
+
–
0
BALANCE ION
ION LEVEL
COND
FAN SPEED
SLOW
24V DC OV ALARM
CONDITIO N INTERRUP T ION LEVE L
FAST
DISP
H M L
H M L
ALAR M
SJ-F100W
ION BALANCE ADJUST
(1) Ion balance indicator Lights when the charged level of the target object is
displayed.
(2) Ion level indicator Lights when the ion emission level is being displayed.
(3) Ion monitor Indicates the charged level of the target object. Also,
indicates the ion emission level.
(4) Ion balance adjustment key Used for adjusting the ion balance.
(5) Alarm indicator Blinks when an alarm occurs.
(6) Ion level alarm sensitivity setup switch Changes the threshold at which the ion level alarm is
output.
H: High sensitivity
M: Medium sensitivity
L: Low sensitivity
(7) Ion level alarm indicator Blinks when the ion emission level has fallen below
the set value due to dirt or wear of the electrode
needles.
(8) Condition alarm sensitivity setup switch Changes the threshold at which the condition alarm is
output.
H: High sensitivity
M: Medium sensitivity
L: Low sensitivity
(9) Condition alarm indicator Blinks when static elimination performance is
influenced by the instability of the installation
environment (temperature, humidity, surrounding
metal objects, etc.), for example, when ions are being
absorbed by surrounding metal objects.
(10) Display selector key Selects the ion monitor display.
(11) Fan speed adjustment knob Adjusts the fan speed.
(1) Ion balance indicator
(5) Alarm indicator
(6) Ion level alarm sensitivity
setup switch
(7) Ion level alarm indicator
(8) Condition alarm sensitivity
setup switch
(9) Condition alarm indicator
(10) Display selector key
(11) Fan speed adjustment knob
(2) Ion level indicator
(4) Ion balance
adjustment key
(3) Ion monitor
