2-2 Connection and Installation
2-6
2
Co
nnect
ion and I
nst
all
at
io
n

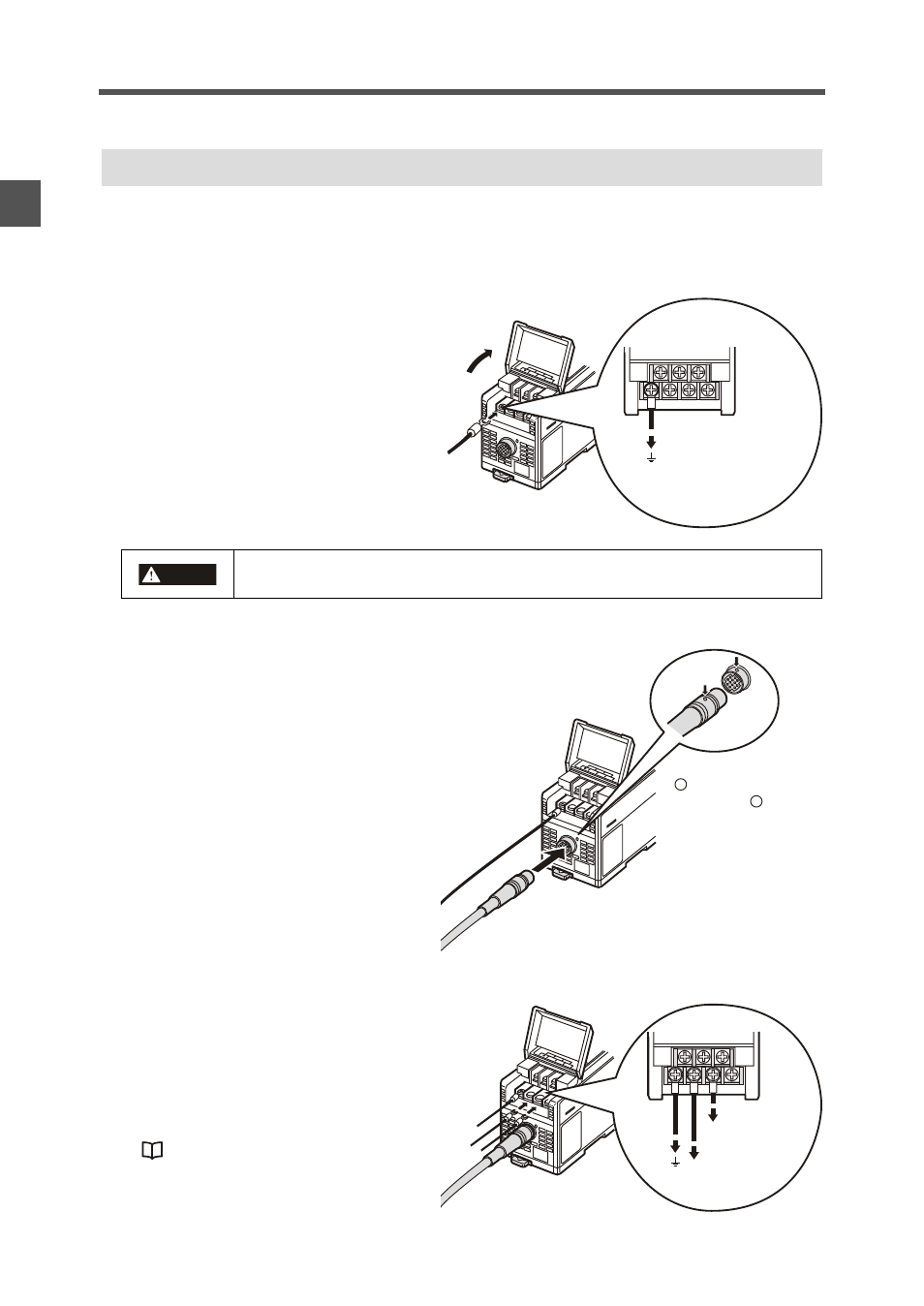

Connecting Cables
When you have finished installing the Static Elimination Blower Unit, connect the earth lead, Static
Elimination Blower Unit connector cable and power supply.
„ Connecting the earth lead
Open the terminal plate cover on the
Controller Unit, and connect the earth lead to
the GND connection terminal.
Be sure to connect a Class D earth
(maximum resistance of 100 Ohms).
„ Connecting the cable
Connect the Static Elimination Blower Unit
connector cable to the Controller Unit.
Connect this cable with the power turned OFF.
When installing the Controller Unit away from
the Static Elimination Blower Unit, use the
optional extension cable (SJ-C3).
Up to 3 cables can be connected.
„ Connecting the power supply
Connect the power supply according to either
of the following methods.
24 VDC power supply
Connect a 24 VDC output power supply
having sufficient power capacity margin to
the power terminals (terminals (5) and (6))
"Controller Unit (I/O terminal section)"
(page 1-6)
To prevent electric shock and to ensure accurate static elimination, be sure to
connect a Class D earth (maximum resistance of 100 Ohms).
FAN S PEE D
SLO W 24V DC OV AL AR M
CON DIT ION
INTE RRU PT
ION LE VEL FAS T
ION BALA NCE ADJ AST
Be sure to connect a
Class D earth
(maximum resistance
of 100 Ohms).
WARNING
FAN SPE ED
SLO W 24V DC OV AL AR M
CON DIT ION
INTE RRU PT
ION LE VEL FAST
ION B AL ANCE ADJ AST
Match and connect the
end of the connector
cable to the inlet on
the Controller Unit.
FAN SPE ED
SLO W 24V DC OV AL ARM
CON DIT ION
INTE RRU PT
ION LE VEL FAS T
ION BALA NCE ADJA ST
To 24 VDC
power supply
To 24 VDC
power supply
