KEYENCE SJ-F100W/100/010 - Manual (Page 23)

2-2 Connection and Installation
2-5
Co
nnect
ion and I
nst
all
at
io
n
2

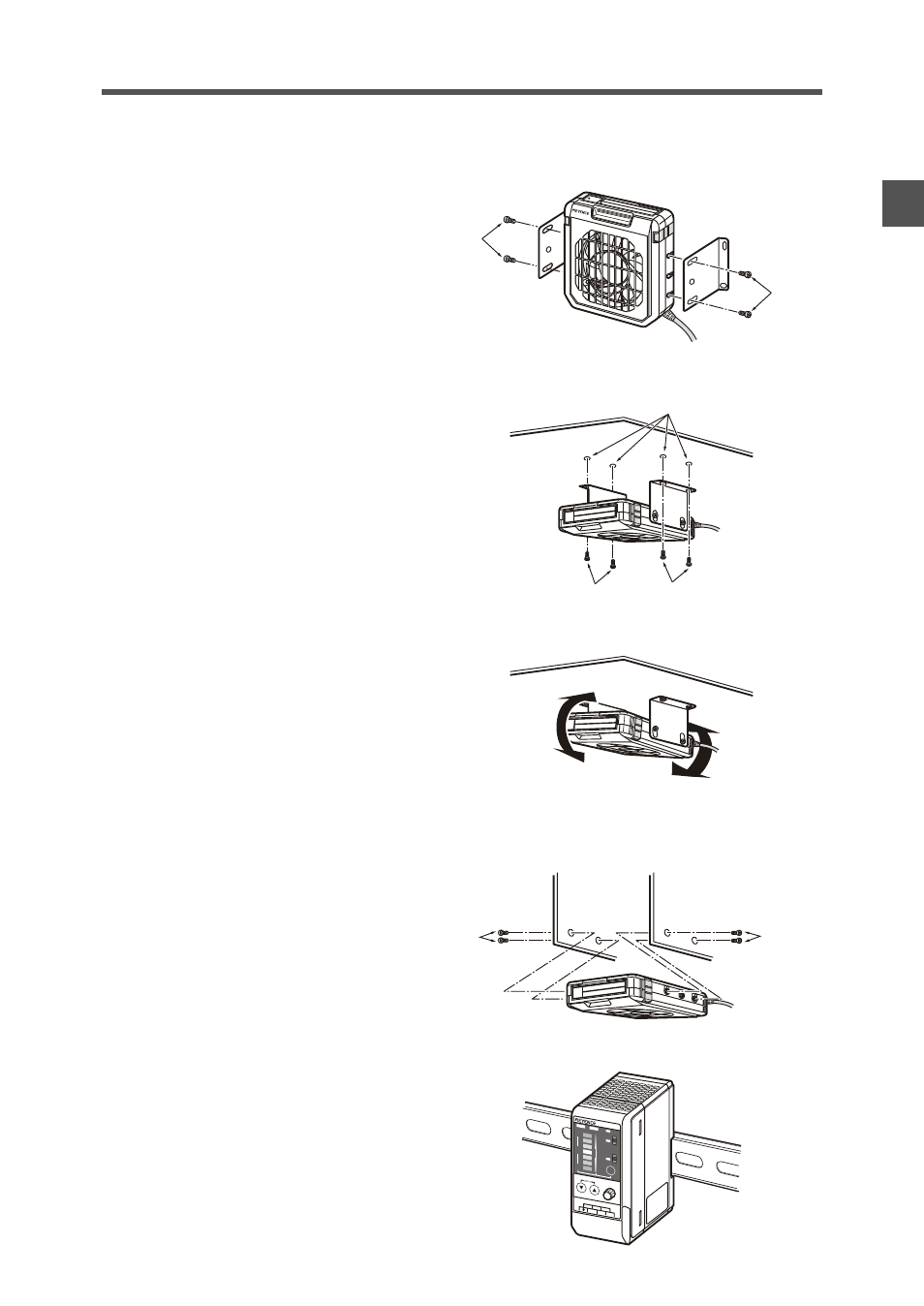

When using mounting fixture B:
1
Install mounting fixture B (OP-51410) on the Static Elimination Blower Unit.
M4 screws for fastening the Static
Elimination Blower Unit to mounting
fixture B are provided with mounting
fixture B.
2
Tap M4 screw holes where the Static Elimination Blower Unit is to be installed, and fasten
mounting fixture B (OP-51410) with the M4 screws.
M4 screws for fastening mounting
fixture B to the installation location must
be provided separately.
3
Loosen the screws mounted on the Static Elimination Blower Unit, and adjust the
installation angle. Then, fasten with the screws again.
When the mounting fixture is not used:
Drill holes of diameter 4.2 mm or more at the location where the Static Elimination Blower Unit is to be
installed, and fasten with the M4 screws.
The M4 screws must be provided
separately.
„ Installing the Controller unit
Mount the Controller Unit on the DIN rail.
SJ-F010
M4
screws
M4
screws
M4 screws M4 screws
M4 tapped holes
M4
screws M4
screws
+
–
0
BALANCE ION
ION LEVEL
COND
FAN SPE ED
SLOW
24V DC OV ALARM
CONDITIO N INTERRUPT ION LEVE L
FAST
DISP
H M L
H M L
ALARM
SJ-F100W
ION BALA NCE ADJAST
