5-1 Timing Charts
5-2
5
Spe
cif
ic
at
ion
s

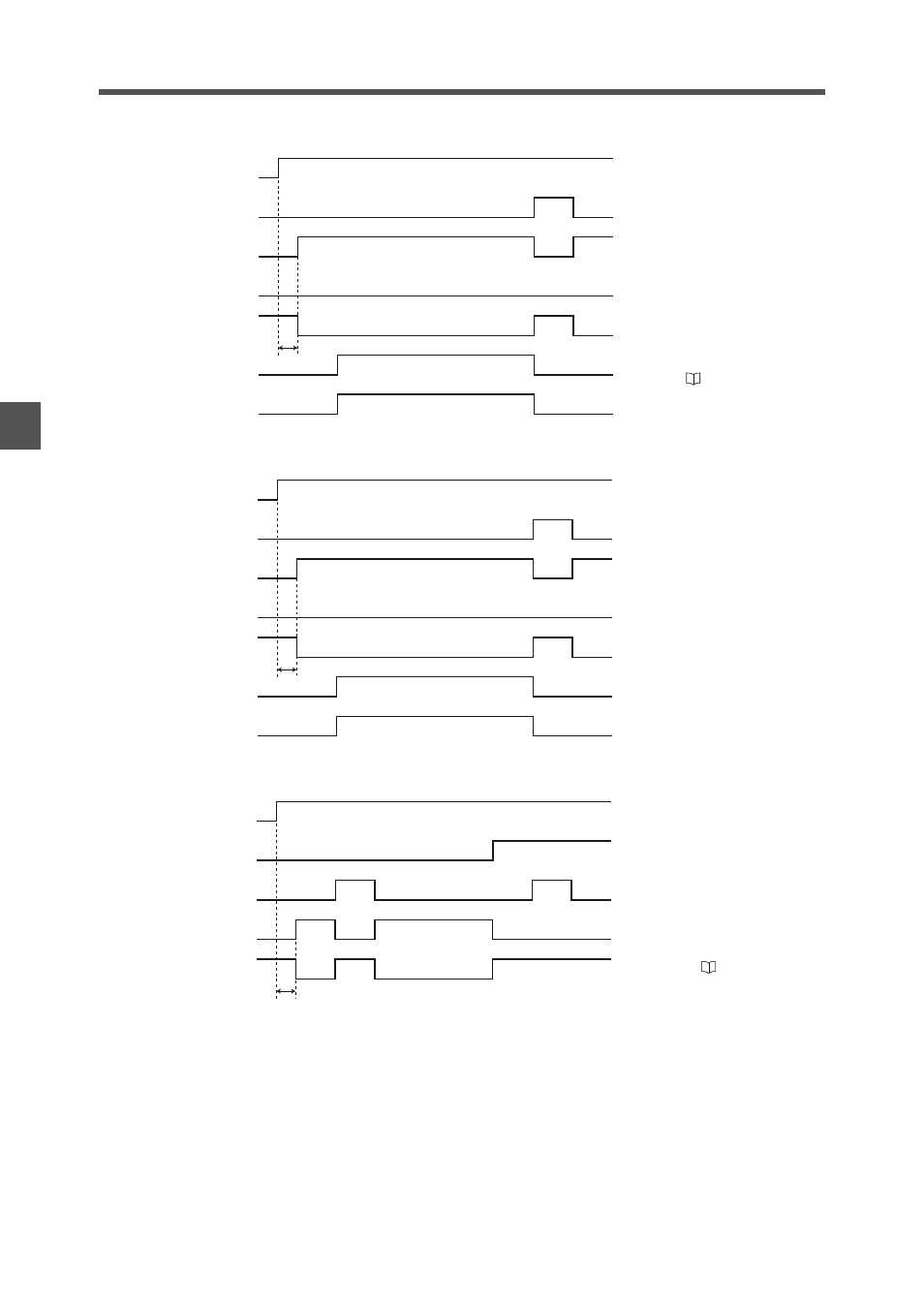

„ Ion level alarm output timing chart
„ Condition alarm output timing chart
„ Alarm output timing chart
Power
ON
OFF
Static elimination
stop input
ON
OFF
Alarm indicator
Blinking
OFF
Alarm output (N.C.)
ON
OFF
Ion emission
Emitting
No
emissions
Ion level indicator Max. 10s
Blinking
OFF
Ion level alarm
output (N.O.)
ON
OFF
When the ion level alarm is output,
removing the cause of the alarm
can restore the normal state. One
way of restoring the normal state is
to perform maintenance on the
electrode needles.
For details on electrode needle
maintenance, see "Performing
Maintenance on the Electrode
Needles" ( page 4-2).
Power
ON
OFF
Static elimination
stop input
ON
OFF
Alarm indicator
Blinking
OFF
Alarm output (N.C.)
ON
OFF
Ion emission
Emitting
No
emissions
Condition indicator
Blinking
OFF
Condition alarm
output (N.O.) ON
OFF
When the condition alarm is output,
removing the cause of the alarm
can restore the normal state. One
way of restoring the normal state is
to enhance the installation
environment.
Max. 10s
Power
ON
OFF
Static elimination
stop input
ON
OFF
Alarm indicator
Blinking
OFF
Alarm output (N.C.)
ON
OFF
Ion emission
Emitting
No
emissions
When the alarm is output, the
normal state can be restored by
performing one of the two available
restore methods depending on the
cause of alarm output.
For details on how to restore the
normal state, see "During an alarm
(levels 1, 2)" ( page A-6).
Max. 10s
