2-2
Connection and Installation
This section describes how to connect and install the Static Elimination Blower Unit and Controller Unit.
Installing the SJ-F100W/100/010
Install the SJ-F100W/100/010 at locations where static electricity is generated or is likely to be
generated.
„ Installing the Static Elimination Blower Unit
There are two ways of installing the Static Elimination Blower Unit, with or without the mounting fixtures.

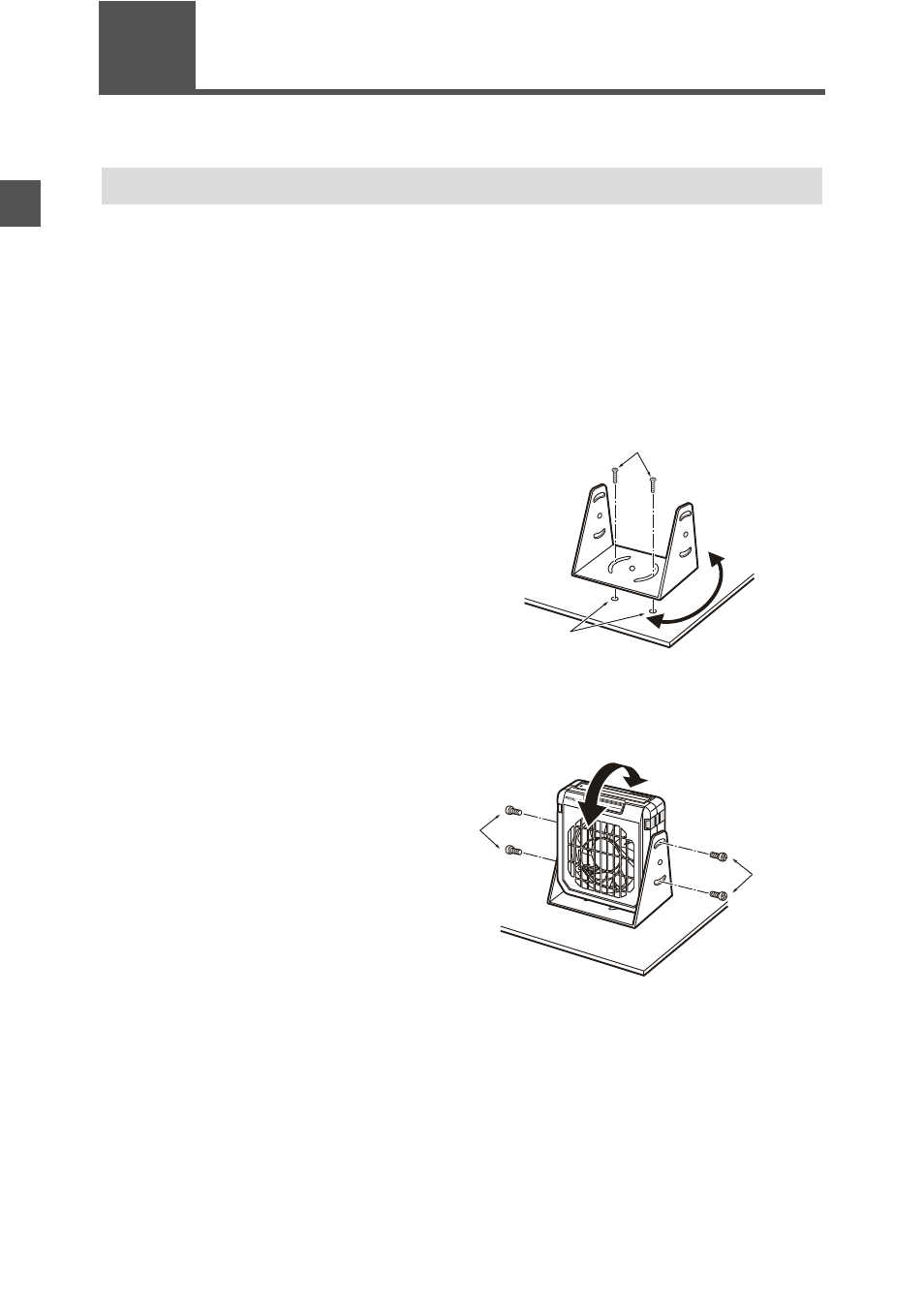

When using mounting fixture A:
1
Tap M4 screw holes where the Static Elimination Blower Unit is to be installed, and fasten
mounting fixture A (OP-51409) with the M4 screws.
You can adjust the horizontal angle of the
Static Elimination Blower Unit by using the
semi-circled cutout holes on the base of
mounting fixture A.
The M4 screws for fastening mounting
fixture A at the installation location must
be provided separately.
2
Install the Static Elimination Blower Unit on mounting fixture A.
You can adjust the vertical angle of the Static Elimination Blower Unit by using the semi-circled
cutout holes on the base of mounting fixture A.
The M4 screws for fastening mounting fixture A to the Static Elimination Blower Unit are provided
with mounting fixture A.
M4 screws
M4 tapped holes
SJ-F010
M4 screws
M4 screws
