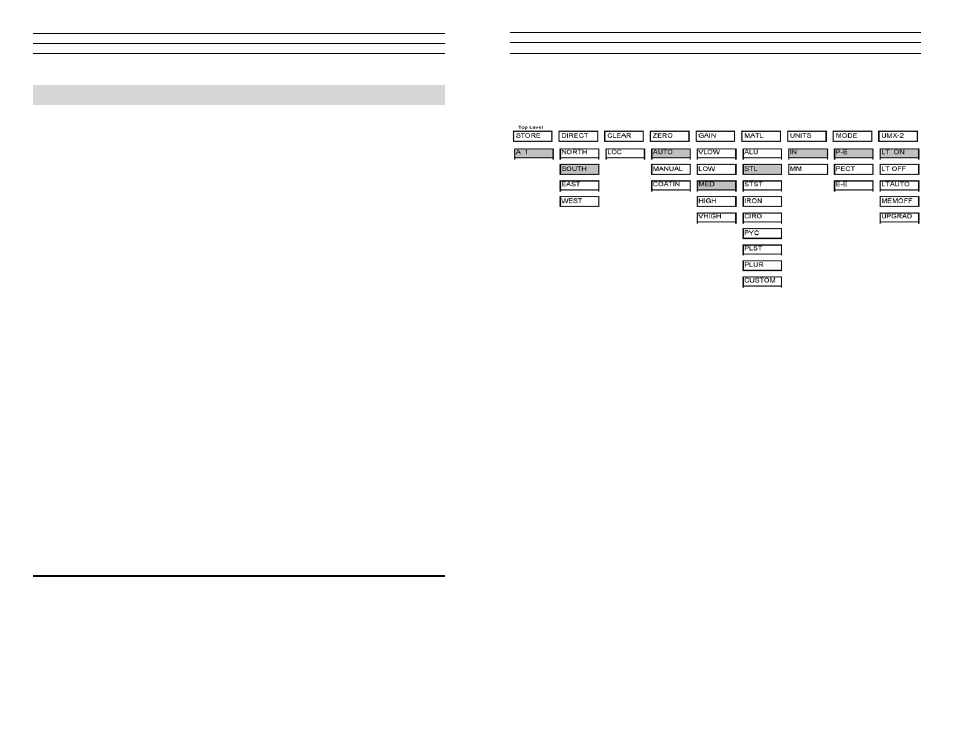

2.3 factory set-up Parameters (dual element Menu structure)

2.4 Quick start (dual element)

1. Attached the transducer to the TI-UMX2.

2. Press and release the single button located on the end of the TI-UMX2. The displays

should illuminate, and led lights will begin flashing.

3. The smaller of the two displays will begin scrolling the current configuration settings

of฀the฀TI-UMX2,฀and฀an฀auto฀zero฀will฀be฀performed.

4. The TI-UMX2 is ready to begin making measurements.

– 52 –

15.0 sPeCIfICaTIons

IMPORTANT Information about dual element transducers:

Inherent in ultrasonic thickness measurement is the possibility that the instrument will use the
second rather than the first echo from the back surface of the material being measured. This may
result in a thickness reading that is TWICE what it should be. Responsibility for proper use of the
instrument and recognition of this phenomenon rest solely with the user of the instrument. Other
errors may occur from measuring coated materials where the coating is insufficiently bonded to
the material surface. Irregular and inaccurate readings may result. Again, the user is responsible for
proper use and interpretation of the measurements acquired.

Range in Steel 0.025-19.99” (0.63 - 508.0 mm)

Note

: exact range depends on probe used

Resolution .001”

(0.01 mm)

Display

4½ - Digit, 0.5” Backlit LCD

Velocity Range

6,500-33,000฀ft./sec฀(2000-10,000฀m/sec.)฀

Probe

STANDARD:฀Underwater฀Type,฀1/2”-5MHz฀Dual-Element฀฀

HD-Coating฀Probe

OPTIONAL:฀Underwater฀Type,฀1/2”-3.5MHz฀Dual-Element฀฀

HD-Coating฀Probe

MEMBRANE: Inquire

Cable

4 ft. (1.2 m)฀waterproof฀cable฀with฀non-polarized,฀quick-฀ ฀

disconnect connectors. Optional lengths up to 50 ft. (15 m).

Temp. Limits

Ambient: –20 to 120° F (–30 to 50° C)

Material

–0 to 200° F (–20 to 100° C) Special high temperature probes

are optionally available.

Battery Type

Two AA batteries

Battery Life

200 hours

Weight

2.8 pounds

Size

3.5 x 7.5 x 2.75” (63.5 W x 190.5 H x 69.85 D mm)

Accessories Included

฀ Probe/cable฀assembly.฀4฀oz.฀bottle฀of฀coupling฀luid,฀NIST฀฀

Calibration Certificate, 2 AA batteries, operating instructions,

hard-plastic carrying case.

Warranty

Gauge:

3 Years

Probe:

90 Days

Operating Modes

PE: Pulse-Echo

PECT: Pulse-Echo Coating

EE: Echo-Echo

EEE: Triple Echo TCG
