The procedures to adjust the Gain are outlined below:
1. Press and hold the single TI-UMX2 button, located on the top end cap, until the top
level menu options begin scrolling on the alpha display. Once this occurs, the button
can now be released. The menu options will scroll one to the next in a time delayed
sequence, and will display all the menu options in a continuous loop.

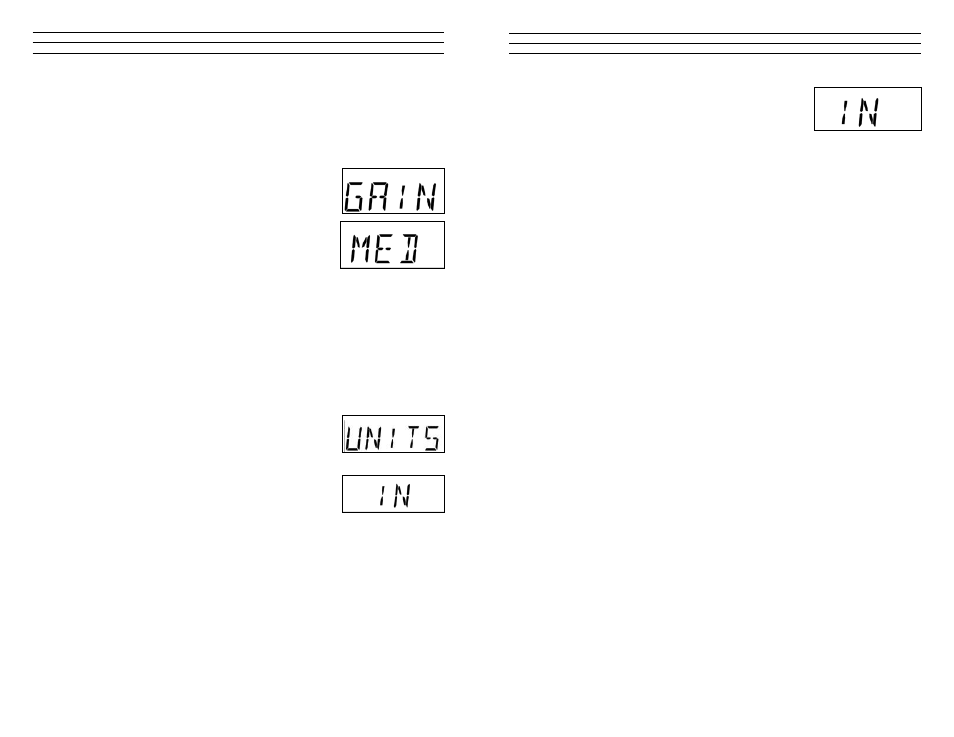

2. When GAIN is displayed, immediately press and release
the button to enter the sub menu options. Again, the
options will begin scrolling in a continuous loop (VLOW,
LOW,฀MED,฀HIGH,฀VHIGH).
3. When the desired gain setting is displayed, immediately
press and release the button to set the gain in the
TI-UMX2. For this example, MED has been selected.
4. Press and hold the button to escape out of the sub menu options at any time.
8.3 units (in/mm)
The TI-UMX2 can be set to either English or Metric units. The procedure below outlines
how to set the units in the TI-UMX2:
1. Press and hold the single TI-UMX2 button, located on the top end cap, until the top
level menu options begin scrolling on the alpha display. Once this occurs, the button
can now be released. The menu options will scroll one to the next in a time delayed
sequence, and will display all the menu options in a continuous loop.
2. When UNITS is displayed, immediately press and release
the button to enter the sub menu options. Again, the
options will begin scrolling
in a continuous loop (IN, MM).
3. When the desired units are displayed, immediately press
and release the button to set the units in the TI-UMX2. For
this example, IN has been selected.
4. Press and hold the button to escape out of the sub menu options at any time.
Setting Light Option
1. Press and hold the single TI-UMX2 button, located on the top end cap, until the top
level menu options begin scrolling on the alpha display. Once this occurs, the button
can now be released. The menu options will scroll one to the next in a time delayed
sequence, and will display all the menu options in a continuous loop.
2. When TI-UMX2 is displayed, immediately press and release the button to enter the
sub menu options. Again, the options will begin scrolling in a continuous loop (LT
ON,฀LT฀OFF,฀LAUTO,฀MEM฀ON/OFF,฀UPGRAD).฀
– 29 –
3. When the desired light option is displayed, immediately
press and release the button to set the option in the
TI-UMX2. For this example, LT ON has been selected.
4. Press and hold the button to escape out of the sub menu
options at any time.
