Checkline TI-UMX2 User Manual

Page 4

– 4 –

2.0 QuICK sTarTuP GuIde

The TI-UMX2 is pre-configured at Electromatic Equipment Company with a
specific and common setup. As a result, the gauge should be ready to measure once
the transducer has been connected. The TI-UMX2 can use two different styles of
transducers; dual element and single element membrane. As a result, the gauge will be
configured according to the transducer style purchased, as follows:

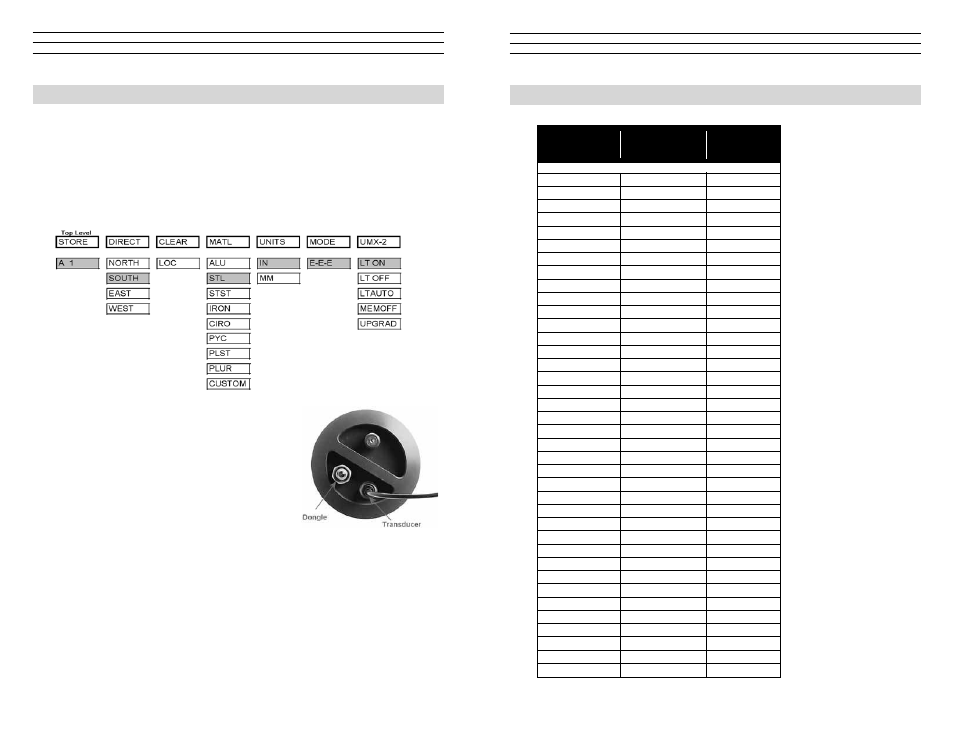

2.1 factory setup Parameters (single element Menu structure)

2.2 Quick start (single element)

1. Referring to the diagram above, be sure the dongle

and transducer are connected as illustrated.

noTe: In฀order฀for฀the฀TI-UMX2฀to฀recognize฀the฀

transducer that has been attached, it
must be in the proper channel location.

2. Press and release the single button located on

the end of the TI-UMX2. The displays should
illuminate, and led lights will begin flashing.

3. The smaller of the two displays will begin scrolling the current configuration

settings฀of฀the฀TI-UMX2฀in฀the฀following฀order:฀TI-UMX2,฀BATT฀(LO,฀ME,฀HI),฀
Probe฀Type฀(1/2฀2S฀or฀5S)…etc.฀If฀‘NO฀PRB’฀is฀displayed,฀the฀dongle฀has฀been฀
plugged into the wrong channel. Press and hold down the button for approximately
30 seconds, or until the TI-UMX2 powers off. Repeat steps 1 – 3 until the probe has
been identified.

4. The TI-UMX2 is ready to begin making measurements.

– 53 –

Material

Sound velocity

in/us

m/s

Aluminum

0.2510

6375

Beryllium

0.5080

12903

Brass

0.1730

4394

Bronze

0.1390

3531

Cadmium

0.1090

2769

Columbium

0.1940

4928

Copper

0.1830

4648

Glass (plate)

0.2270

5766

Glycerine

0.0760

1930

Gold

0.1280

3251

Inconel

0.2290

5817

Iron

0.2320

5893

Cast Iron

0.1800 (approx)

4572

Lead

0.0850

2159

Magnesium

0.2300

5842

Mercury

0.0570

1448

Molybdenum

0.2460

6248

Monel

0.2110

5359

Nickel

0.2220

5639

Nylon

0.1060 (approx)

2692

Platinum

0.1560

3962

Plexiglas

0.1060

2692

Polystyrene

0.0920

2337

PVC

0.0940

2388

Quartz glass

0.2260

5740

Rubber vulcanized

0.0910

2311

Silver

0.1420

3607

Steel (1020)

0.2320

5893

Steel (4340)

0.2330

5918

Steel Stainless”

0.2230

5664

Teflon

0.0540

1372

Tin

0.1310

3327

Titanium

0.2400

6096

Tungsten

0.2040

5182

Uranium

0.1330

3378

Water

0.0580

1473

Zinc

0.1660

4216

Zirconium

0.1830

4648

16.0 aPPendIx a – VeloCITy Table
