6 Operation
61 K-375/376/377 Operation Manual, Version B
6 .2 .1 The title bar
The title bar is present on top of any screen and consists of the following components:

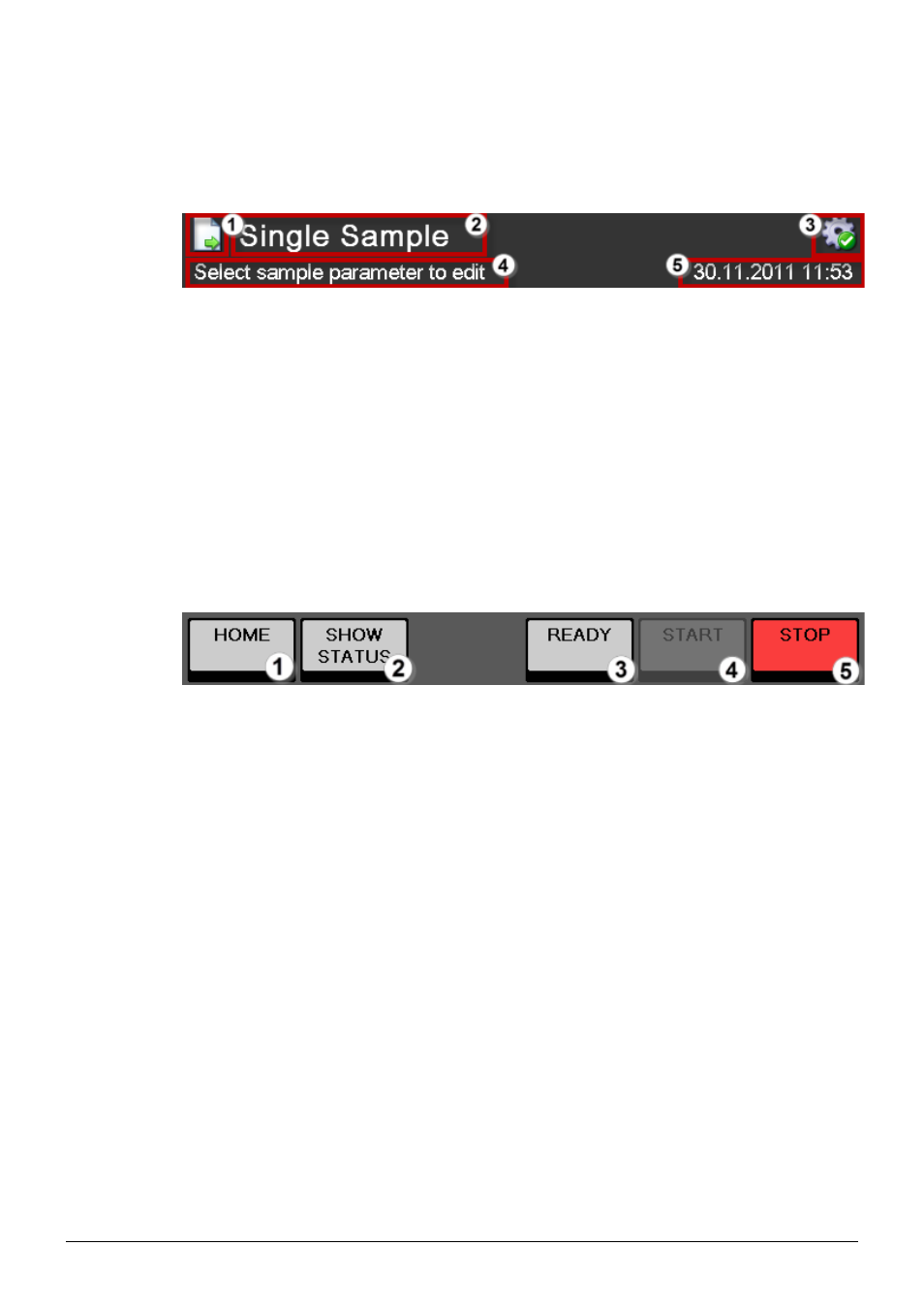

Fig. 6.2 Title bar
1 Icon of the current dialog
2 Title of the current dialog
3 System status icon
4 Options, hints or help for the current screen
5 Date & Time
6 .2 .2 The bottom bar
Like the title bar, the bottom bar is always present on any screen. It consists of 5 different buttons,
whose function will never change (there is one exception: the
START button will be switched to a
PAUSE button during a running sequence):
Fig. 6.3 Bottom bar
1 HOME – this button will bring you back to the home screen from any other screen
2 SHOW/HIDE STATUS – shows or hides the Status view
3 READY/STANDBY – toggles the system mode between standby and ready. In standby mode
the steam generator is powered off for energy saving reasons.
4 START/PAUSE – starts a task, or pause a running sequence
5 STOP – stops a task.
This button also acts as an
EMERGENCY STOP switch. If the device malfunctions or there is
an operating error, you can stop all current tasks by pressing the STOP button. (The current will
be switched off, resulting in the closure of all valves.)
