5 Putting into operation
47 K-375/376/377 Operation Manual, Version B
ቤ
ባ
ቢ
ብ

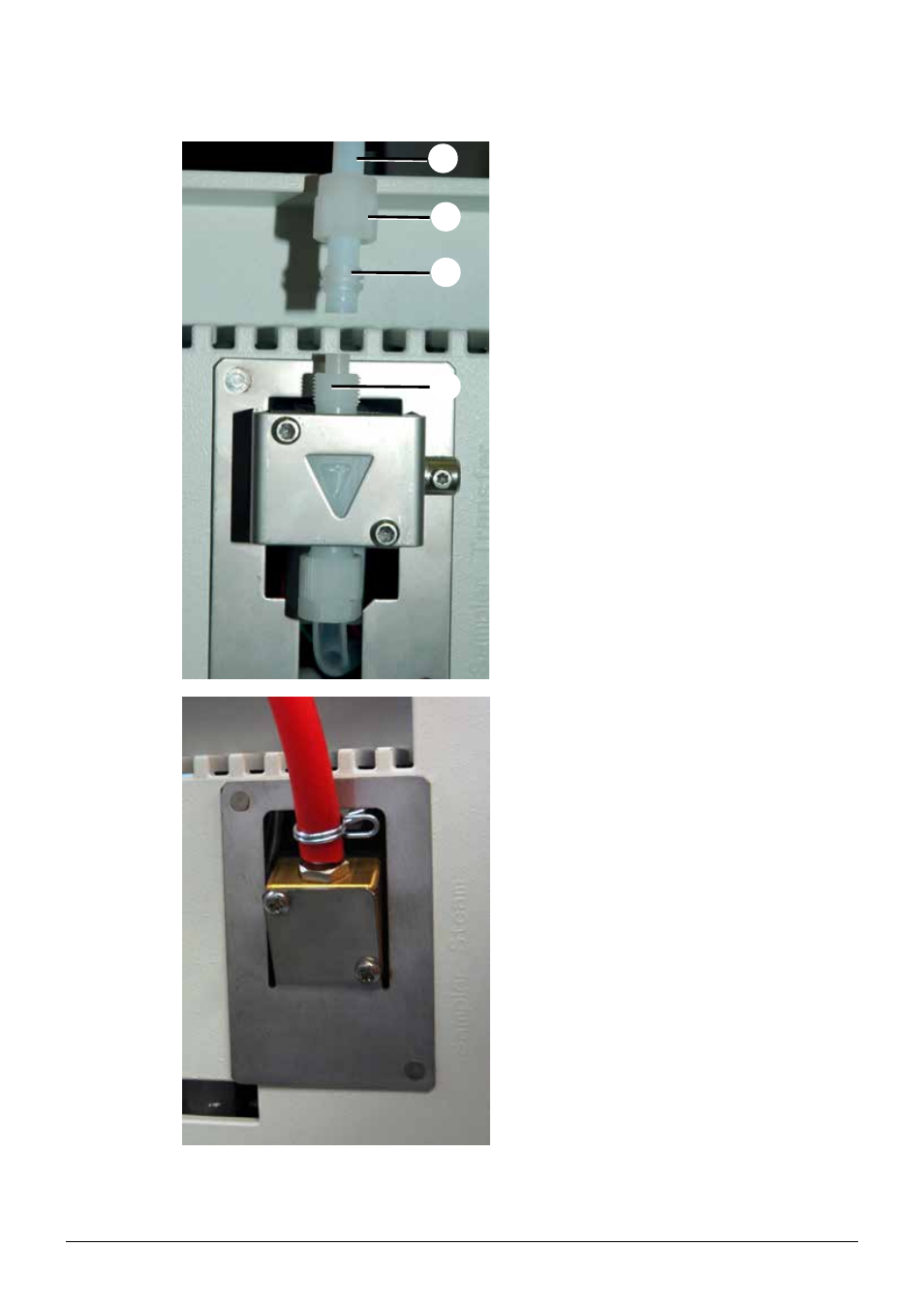

Fixing the transfer hose to the K-375
Mount the white transfer hose on the valve of the
K-375 (top right corner):
1. Unscrew the screw cap c from the
screw connection of the valve a (atten-
tion: 2 parts) and take out the cutting ring
b.
2. Slide the screw cap over the white hose
d.
3. Slide the cutting ring over the hose.
4. Plug the hose on the valve and fix it by
screwing the screw cap on the valve.
Fixing the steam hose to the K-375
Mount the red steam hose on the steam valve of
the K-375 (top right corner):
• Slide the red hose on the connector and
secure it with a hose clamp.
Fig. 5.4: Connection to the K-375
