5 Putting into operation
48 K-375/376/377 Operation Manual, Version B
Connect the K-375 and the K-376/K-377 with the corresponding/delivered RS232 cable (crossed)
• K-375: See b in picture 5.1
• K-376/K-377: see d in picture 5.2
! WARNING
Risk of burns by hot steam.
• Make sure to place a sample tube in the washing position(s) of the sampler.
Place an empty sample tube into the washing position of the sampler:
The washing position is on the rear right side of the tray.
For the K-376 this is the fixed position to the right of the express rack.
The K-377 provides two washing positions – one on the rear right side of each tray.

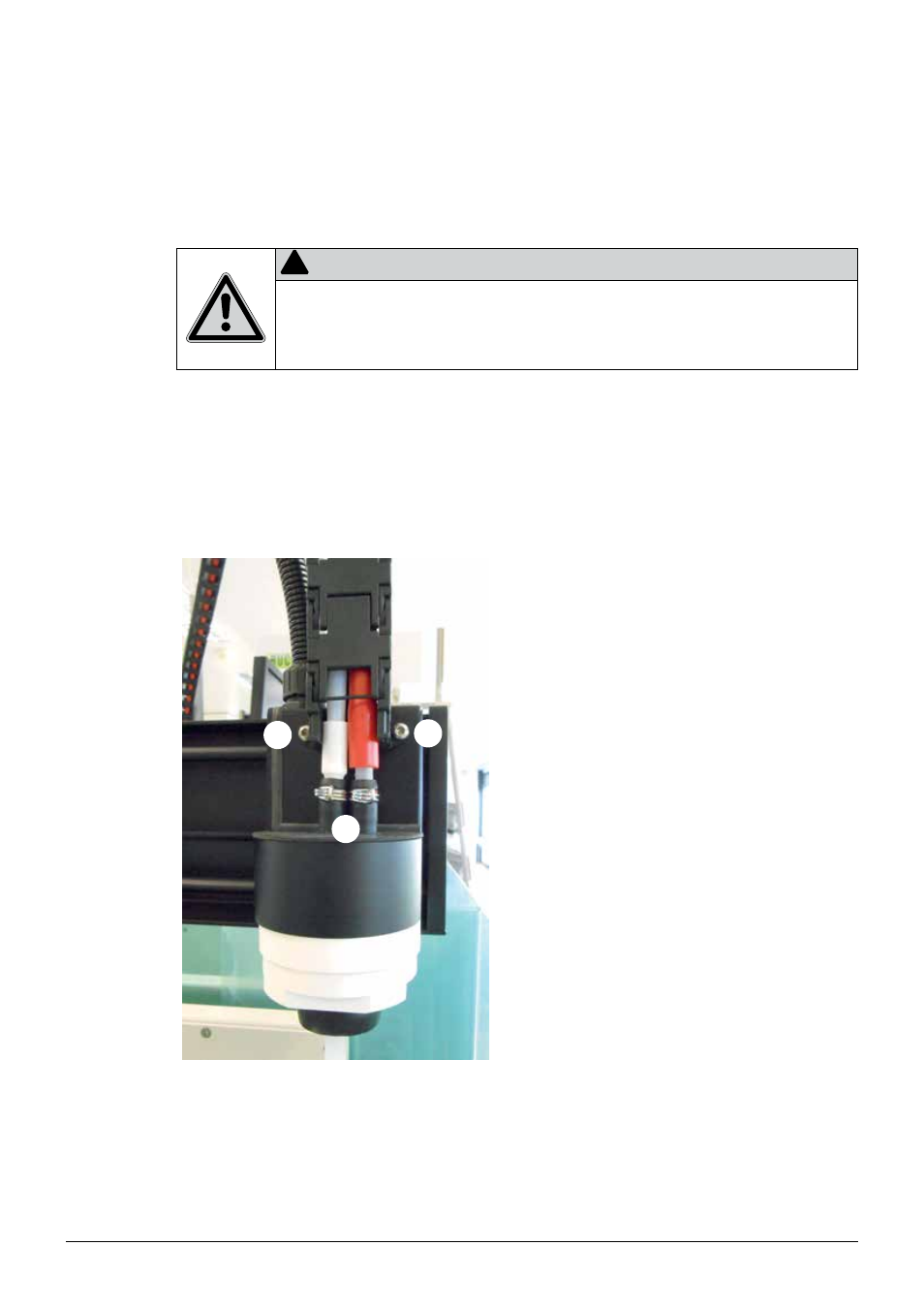

5 .3 .2 Connecting the transfer hoses of the K-377
ᕢ ᕢ
ᕡ
On the K-377
• Connect the transfer hose and the steam hose
to the two fittings on top of the sealing cap
on the sampler arm. Secure both connections
with hose clamps 1.
The red steam hose has to be fixed to the first
position (marked with a red ring) – pointing to
the front of the instrument!
• Fix the plastic cable channel with the two pro-
vided screws 2 on the sampler arm.
