34
CHAPTER 4 - PARAMETER DESCRIPTION

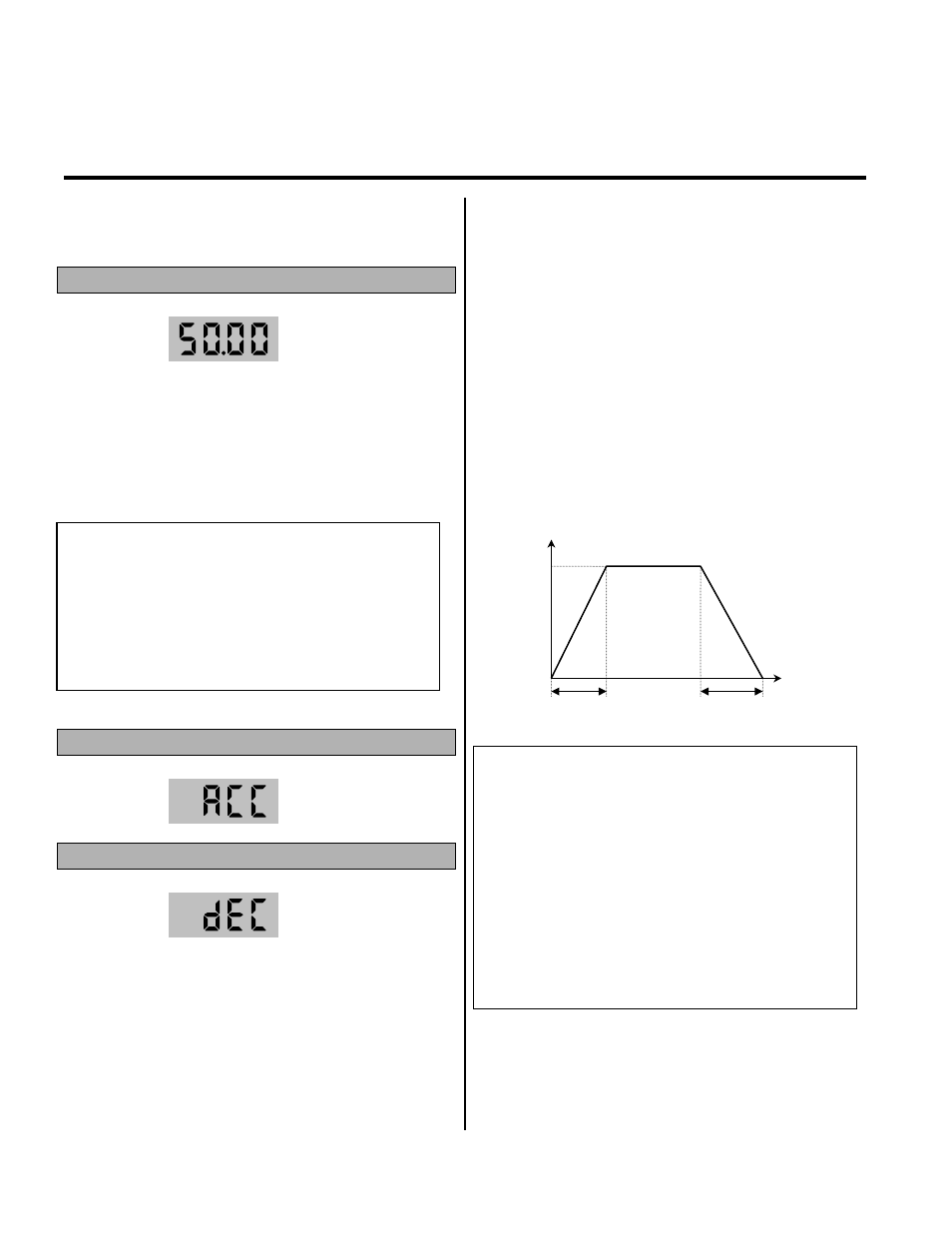

4.1 Drive Group [DRV]
DRV-00: Output Frequency
This code gives information regarding motor
direction set in DRV-13, and output or reference
frequency.
You can set the command frequency by pressing
[FUNC] key in this code.
DRV-01: Acceleration Time
DRV-02: Deceleration Time
The inverter targets the FU2-70 [Ref. Freq. for
Accel/Decel] when accelerating or decelerating.
When the FU2-70 is set to “Maximum Frequency”,
the acceleration time is the time taken by the
motor to reach FU1-20 [Maximum Frequency]
from 0 Hz. The deceleration time is the time taken
by the motor to reach 0 Hz from FU1-20.
When the FU2-70 is set to ‘Delta Frequency’, the
acceleration and deceleration time is the taken to
reach a targeted frequency (instead the maximum
frequency) from a frequency.
The acceleration and deceleration time can be
changed to a preset transient time via multi-
function inputs. By setting the multi-function inputs
(P1, P2, P3) to ‘XCEL-L’, ‘XCEL-M’, ‘XCEL-H’
respectively, the Accel and Decel time set in I/O-
25 to I/O-38 are applied according to the binary
inputs of the P1, P2, P3.
Related Functions: DRV-04 [Freq Mode]
FU1-20 [Max Freq]
I/O-01 to I/O-10 [Analog Reference Inputs]
DRV-04: Select the frequency setting method. [Keypad-1,
Kepad-2, V1, I, V1+I, Modbus-RTU]
FU1-20: Set the maximum frequency that the inverter can
output.
I/O-01 to I/O-10: Scaling the analog input signals (V1 and I)
for frequency reference.
Related Functions: FU1-20 [Max Freq]
FU2-70 [Reference Freq. for Accel/Decel]
FU2-71 [Accel/Decel Time Scale]
I/O-12 to I/O-14 [Multi-Function Input
Terminal P1, P2, P3]
I/O-25 to I/O-38 [Acc/Dec Time for Step
Frequency]
FU2-70: Select the frequency to be targeted for acceleration
and deceleration. [Max Freq, Delta Freq]
FU2-71: Select the time scale. [0.01, 0.2, 1]
I/O-12 to I/O-14: Set the terminal function of P1, P2, P3
terminal inputs.
I/O-25 to I/O-38: Preset the Accel/Decel time activated via
multifunction inputs (P1, P2, P3)
Output Frequency
Max. Freq.
Time
Acc. Time Dec. Time
