16
CHAPTER 2 - OPERATION
2.1 Keypad and Parameter Group Setting
2.1.1 Keypad
Description

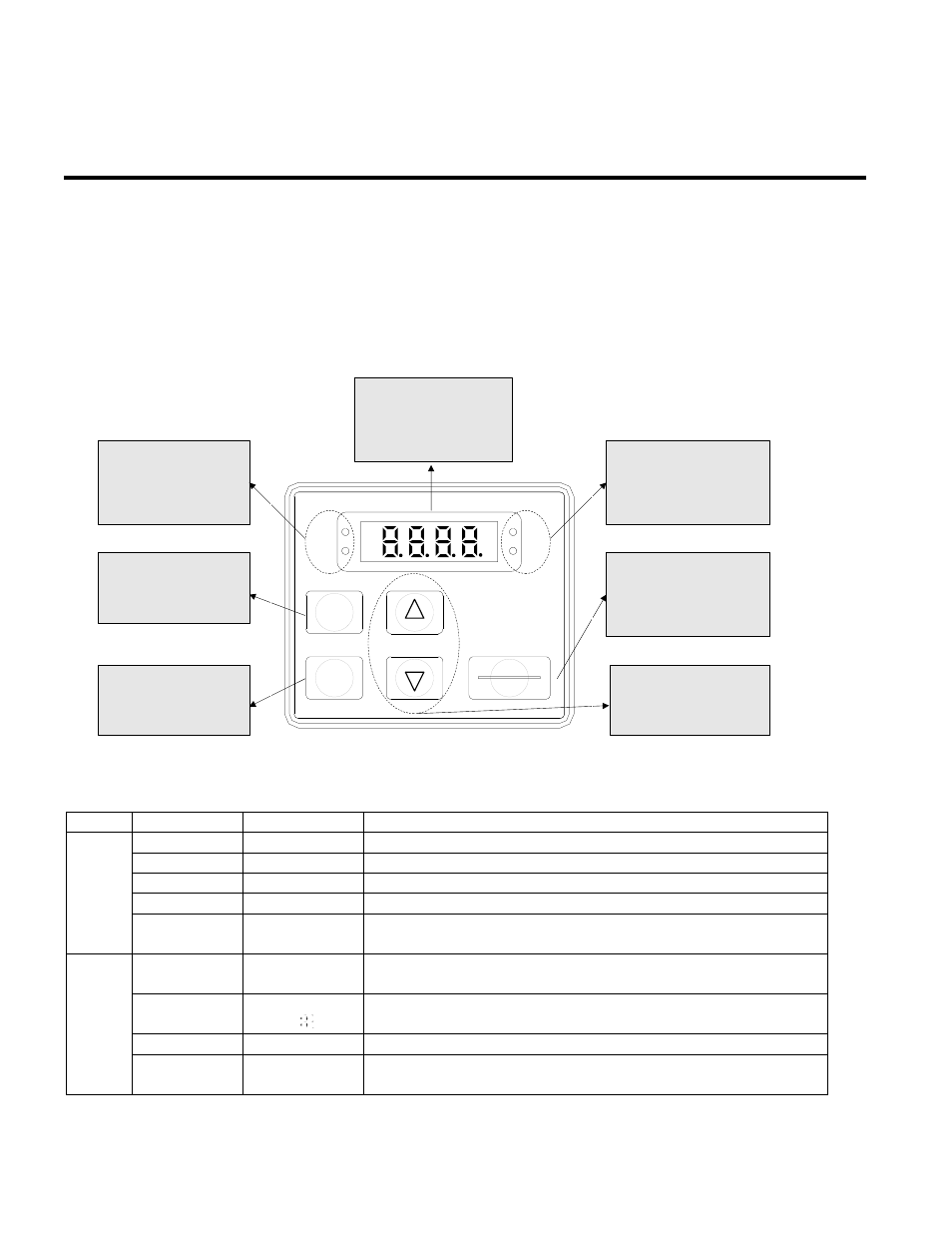

7-Segment keypad displays up to 4 letters and numbers, and the user can directly check various settings
of the inverter. The following is an illustration of the keypad and the functions of each part.
Class Display Name Description
FUNC Program Key Press to Change Parameter Setting.
▲ (Up) Up Key Press to Move Through Codes or To Increase Parameter Values.
▼ (Down) Down Key Press to Move Through Codes or To Decrease Parameter Values.
RUN Run Key Use to Operate Inverter.
Key
STOP/RESET STOP/RESET
Key
Press to Stop Inverter During Operation.
Press to Reset When a Fault Has Occurred.
REV
Reverse Run
Display
Lit During Reverse Run.
FWD
Forward Run
Display
Lit During Forward Run.
SET Setting Lit When User is Setting Parameters Using FUNC Key
LED
RUN Operating
Lit When at Constant Speed and Blinks When Accelerating or
Decelerating.
SET LED
RUN LED
UP/DOWN
Key
STOP/RESET
Key
FUNC Key
RUN Key
FWD LED
REV LED
SET
RUN
FWD
REV
FUNC
RUN
STOP
RESET
LE-100
DISPLAY
(7-Segment)
