50)- 5 «-^ S^VIOEO
■«»‘.«Off AVilWXJT PHotes

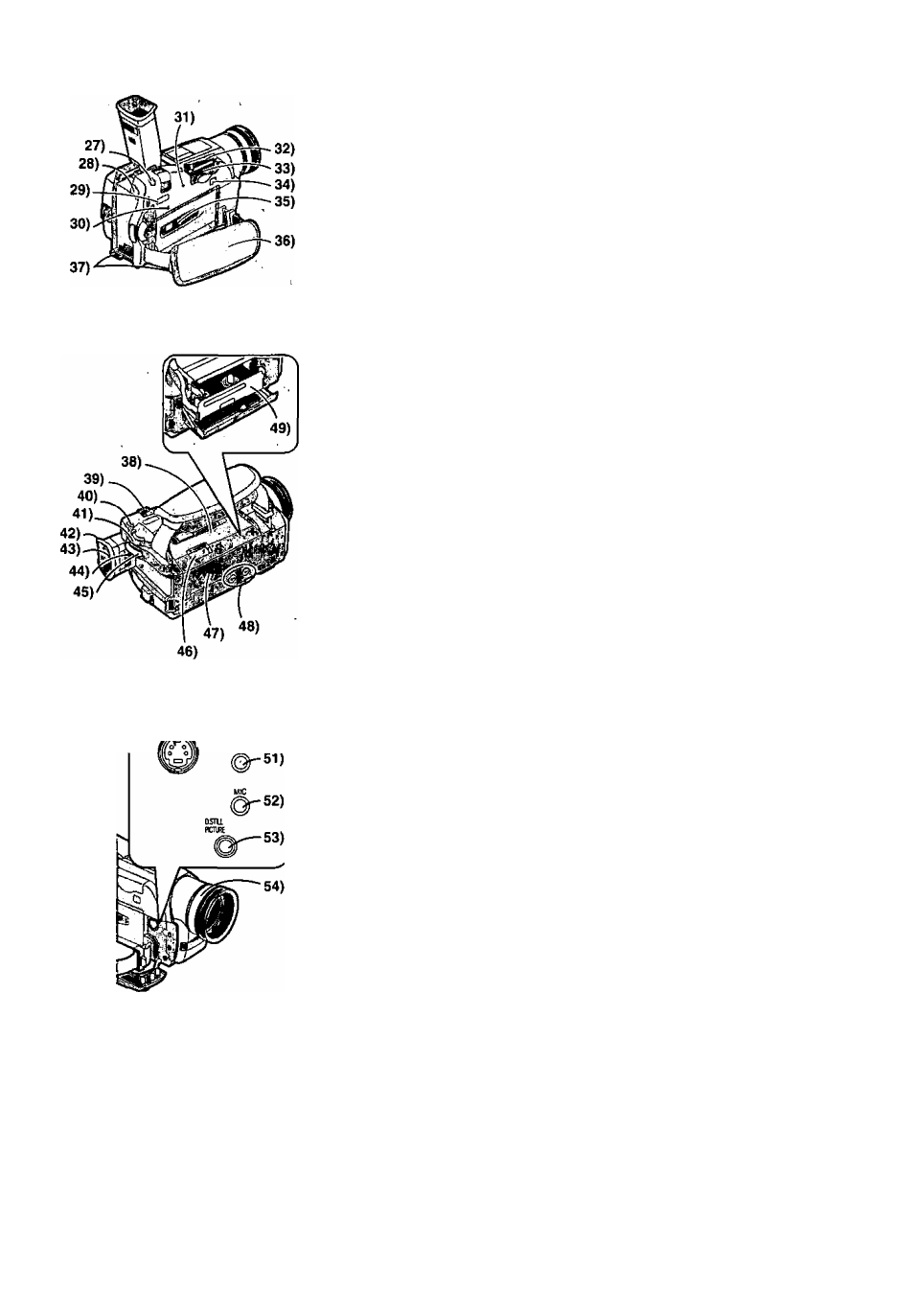

27) Photoshot Button [PHOTO SHOT] {-► 21, 34)
28) Battery Eject Button [BATT. EJECT] (-►12)
29) Tape/Card Photos hot Selector [TAPE/CARD] (-♦ 34)
30) Reset Button [RESET] (-» 61)
31) Card Access Lamp [ACCESS] (-► 34)
32) Card Slot Coyer (-► 34)
33) Card Slot (-».34)
34) Card Slot.Cover Open Lever [OPEN] (-♦ 34)
35) Cassette Compartment Window (-► 13)
36) Grip Belt (-►13)
37) Shoulder Strap Holders (^ 13)
38) Upper Cassette Compartment Cover (-► 13)
39) Zoom Lever [W/T] (-► 21, 22)
40) Operation Mode Lamps[CAMERA/VCR/CARD P.B] (-► 14, 20, 28, 35)
41) Power Off/On Mode Selector Switch [OFF/ON/MODE] (-► 14)
42) Eyecup
43) Viewfinder (-► 14)
• Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the Viewfinder screen. However, this is not
a malfunction and does not affect the recorded picture.
44) Eyepiece Corrector Knob (-► 14)
45) Recording Start/Stop Button (-► 20)
46) Cassette Eject Lever [OPEN/EJECT] (-► 13)
47) Lower Cassette Compartment Cover (^ 13)
48) Tripod Receptacle (Tripod Mounting Hole) >
■ »Used for mounting the Palmcorder on an.optional tripod.
49) Cassette Holder (■►IS)
50) S-Video Input/Output Jack [S-VIDEO IN/OUT}(-^ 33,40)
51) Audio-Video input/Output Jack [AV IN/OUT] (-^ 33, 40)
Headphone Jack [PHONES] (-► 53)
' »When a cable is connected to this jack, the built-in speaker of the
Palmcorder is disabled.
52) Microphone Jack [MIC] (-► 33; 53)
• Connect with an external microphone or audio equipment (When this
jack is in use, the built-in microphone does not function.)
53) Digital Still Picture Terminal [D.STILL PICTURE] (-► 42)
54) Focus Ring (-► 24)
.
9
