MAIN MENU SCREEN
If set up for internal GPS
use, Key 1 calls Screen
3, which is the GPS
Status Screen. The joy-
stick can be used on this
screen to switch the L-3
Communications WX-500
Stormscope
® interface
on and off. If
Stormscope
® is switched
on, Key 1 will be labeled
STORMSCOPE and will
cause the Stormscope
®
screens to be displayed.
GPS data screens can
still be accessed in this case through the INST & DIAGS key under
SETUP or by switching the Stormscope
® interface off using the joystick.
Key 2 calls Screen 7, which is the Flight Planning Mode Cover Screen
(not available in External GPS Mode). Key 3 will read NOTE PAD if
DEMO MODE was not selected on Screen 1. Pressing Key 3 will call
screen 62, which is the NOTE PAD display screen and will also give
access to Screen 57, which is the E6-B Calculator Cover Screen (Refer
to section on E6-B Calculator). If Demo Mode has previously been acti-
vated, Key 3 will read DEMO OFF. Pressing DEMO OFF will then switch
Demo Mode off and return to Screen 2 with Key 3 reading NOTE PAD.
Key 4 calls Screen 21, which is the Setup Cover Screen. Key 5 calls
Screen 38 or 47, which are Map Mode and Map Mode with NAV
Information Screens.
NOTE PAD SCREEN
The Note Pad Screen
(Screen 62) is accessed
by pressing Key 3 on
Screen 1 or Screen 2,
Main Menu Screen.
The Note Pad function
allows you to load up to
4000 characters of text
into your GPS unit from a
personal computer run-
ning suitable flight plan-
ning software. This text
can then be recalled on a
special Note Pad screen during flight.
Title and Help Screens

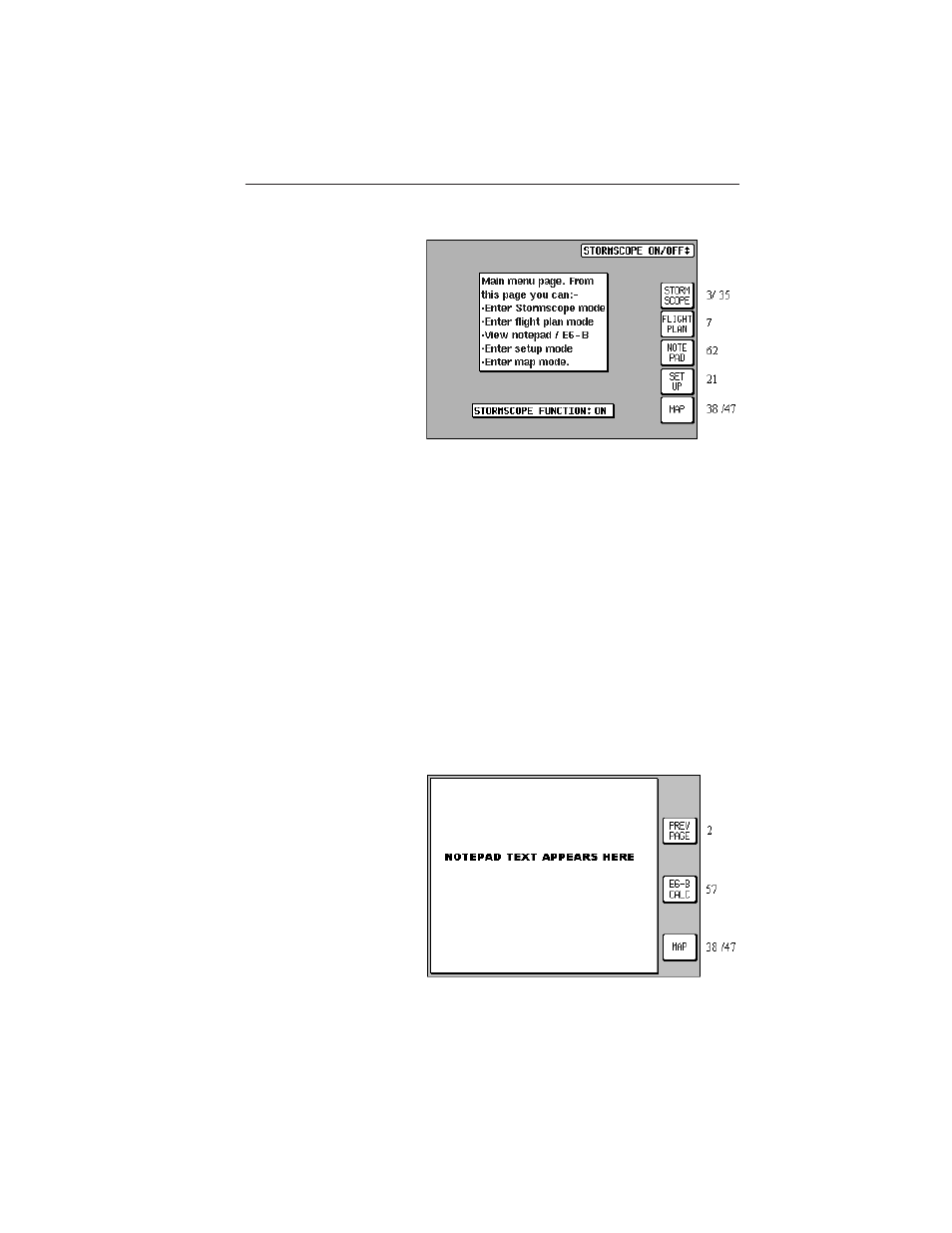

Screen 2: Main Menu Screen
Screen 62: Notepad Screen
