Rev 3 Aug/2004 KMD 150 Pilot's Guide
123
Aircraft Turns to Avoid Thunderstorms

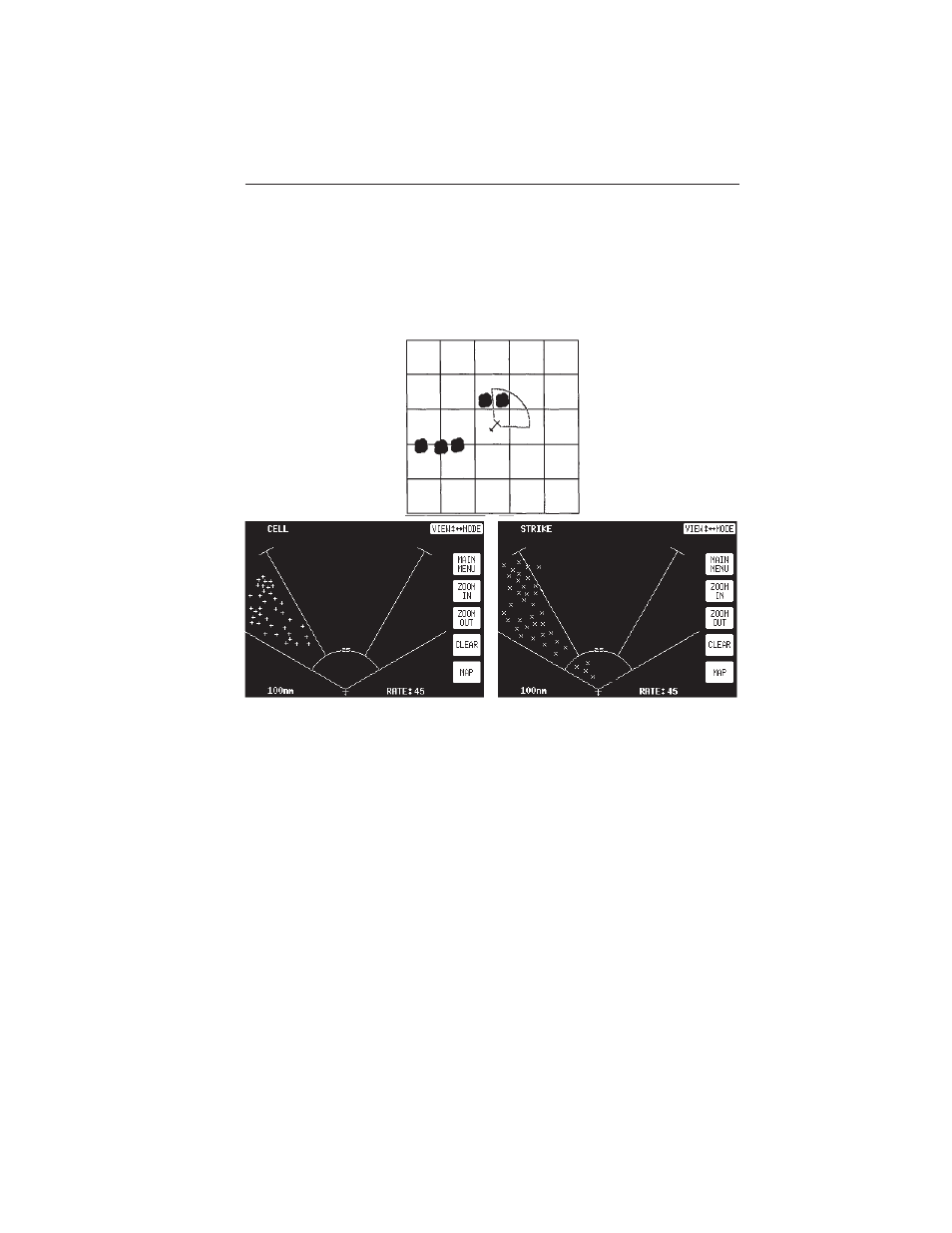

Figure 13-11 shows the Stormscope
®
screen a short time later after the
aircraft has turned to the right to avoid the thunderstorms. When con-
nected to a compatible heading system, the Stormscope
® system auto-
matically rotates the existing discharge points to their correct position rel-
ative to the new heading.
Figure 13-11 - Aircraft Turns To Avoid Thunderstorms
Stormscope ® Operation
