INSTALLATION AND DIAGNOSTIC SCREENS
This Screen is accessed
by pressing Key 4,
SETUP, in Main Menu
followed by Key 5, INST
& DIAGS, in Screen 21,
Setup Cover Screen.
Screen 28 gives you
access to all installation
and test-related Screens,
and will allow you to per-
form diagnostic checks
on the data input and
output lines.
You can also use this
Screen to gain full access
to the "time in service" logs and "last flight" log. It is used, in addition, to
enter four different "Memory Clear" routines, which are PIN-protected to
prevent inadvertent erasure to the unit's memory.
Key 1 returns you to Screen 21, Setup Cover Screen.
Key 2 calls Screen 63, Screen Position Setup Screen.
Key 3 calls Screen 30, Engineering Log Screen.
Key 4 calls Screen 32, Memory Clear Entry Screen.
Key 5 calls Screen 35, Data In/Out and Test Screen.
SCREEN POSITION SETUP
Screen 63 is for use during manufacture to position the picture centrally
in the viewable area of the display. This screen is also used to focus the
image on the display. It is not a Screen, which you as a user of the KMD
150 should need to access so it is protected by an engineering PIN code
to prevent accidental alteration of the factory settings.
Setup Screens

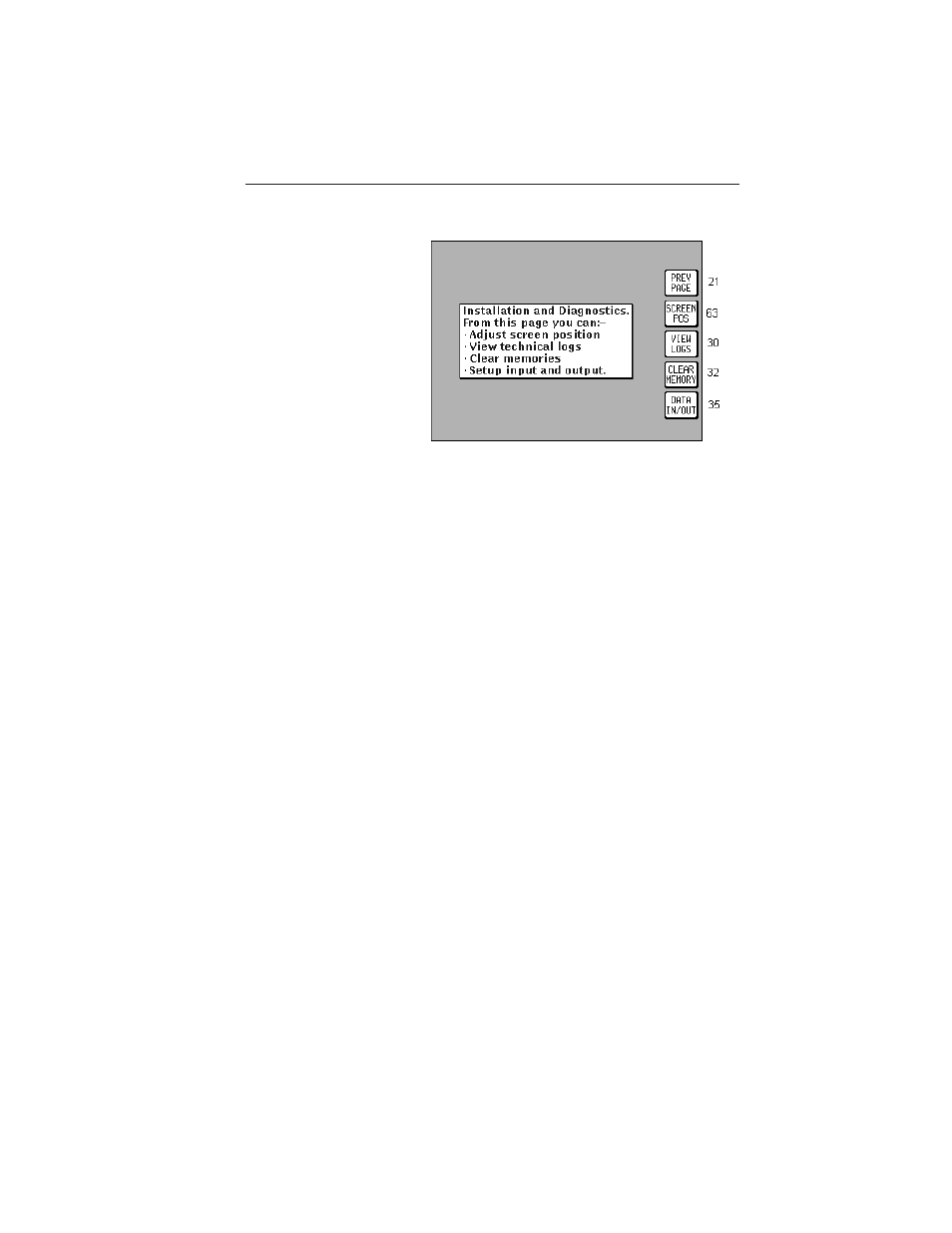

Screen 28: Installation and Diagnostics
Cover Screen
