Range Changes to 100 nm

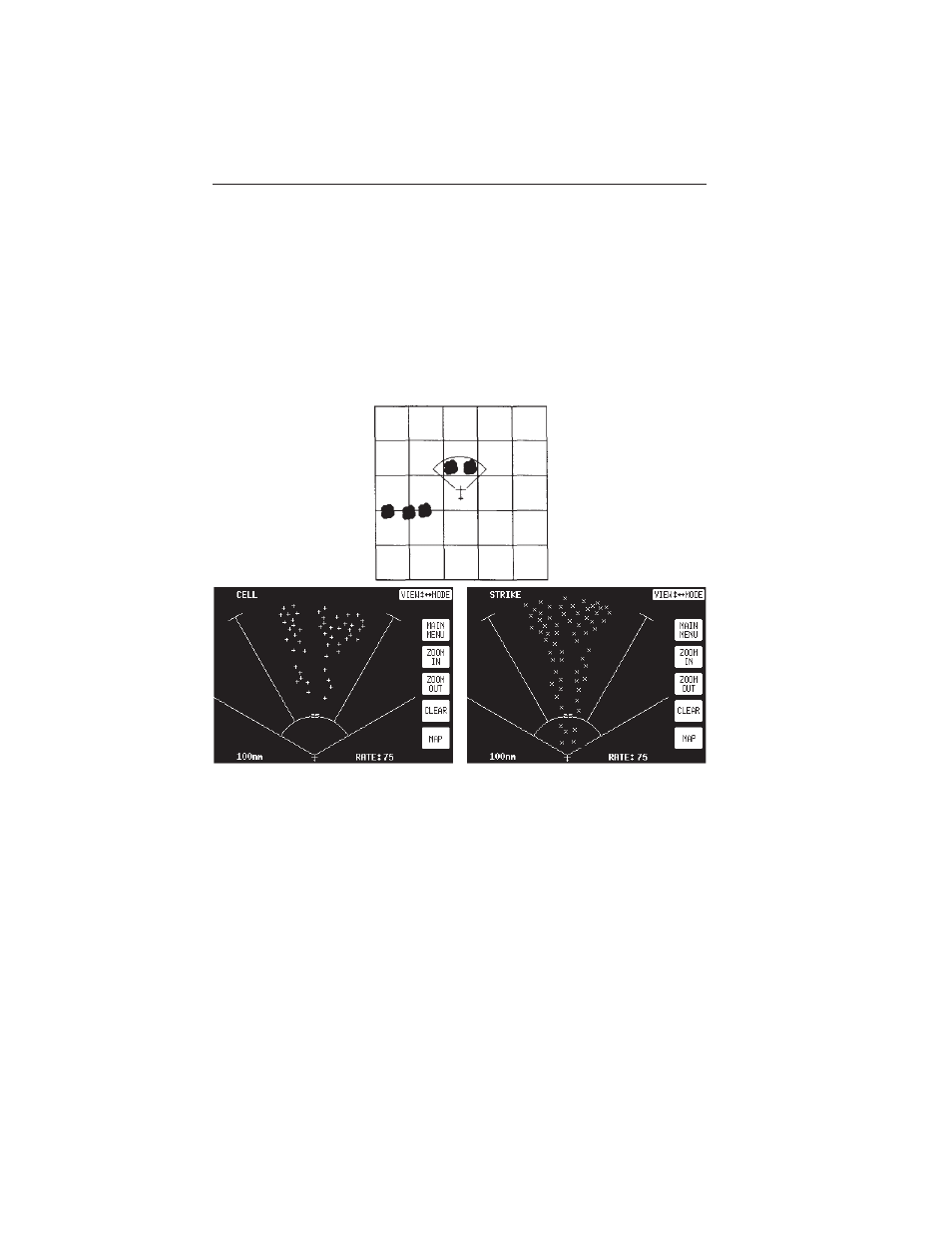

Figure 13-10 shows the Stormscope
®
screen a short time later in the
120° weather view at the 100 nm range. The thunderstorms at 8:30 are
not visible in this view but the thunderstorms off the nose of the aircraft
appear in greater detail as two separate thunderstorms. The thunder-
storms at 11:30 and 12:15 are centered 90 nm from the aircraft.
Information is now sufficient to map a Flight Plan around the thunder-
storms. The WX-500plots discharge points within the selected range
even if the points obscure the CELL or STRIKE display mode indicator
as they do in Figure 13-10.
Figure 13-10 - Range Changes to 100 nm
Stormscope ® Operation
