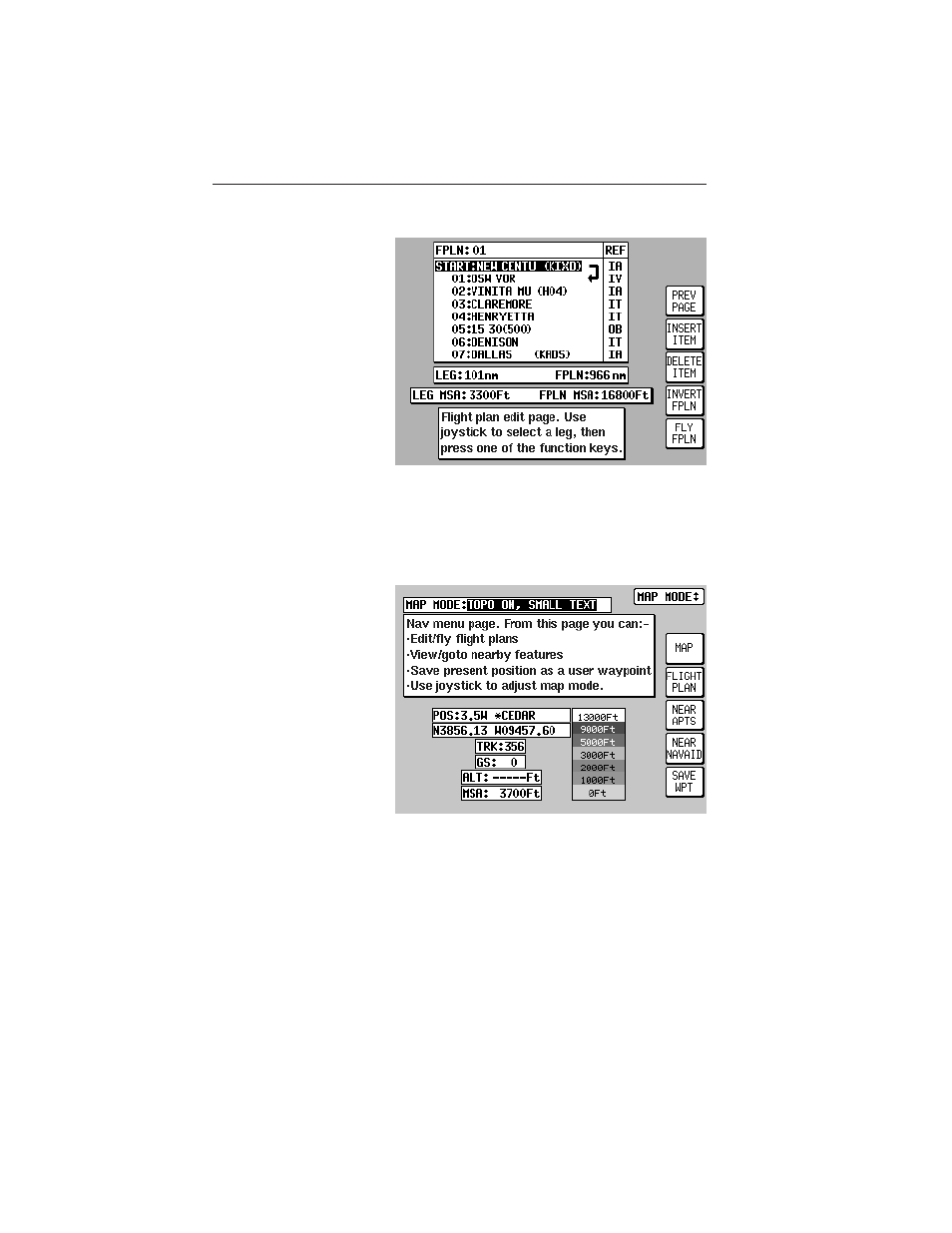

SELECTING A FLIGHT PLAN TO FLY

From MAIN MENU select
the MAP key, followed by
NAV MENU and FLIGHT
PLAN. Use the joystick
to select the desired flight
plan number and then
press the SELECT key.
Ensure that the leg arrow
is pointing at the initial leg
that is to be flown and
press FLY FPLN. The
unit will immediately
revert to map mode with
the navigation informa-
tion showing using the pre-selected MAP MODE. This function is not
available in External GPS Mode.

SELECTING A MAP MODE

The presentation in MAP
mode can be varied from
Small Text to Large Text
to a CDI (Pseudo HSI)
display. In all three MAP
MODES there are a fur-
ther two options which is
either TOPO ON or
TOPO OFF. In the
TOPO ON mode all
classes of data can be
set to a specific color. In
the TOPO OFF mode all
cartographic data is auto-
matically removed and the Jeppesen Nav Data is presented on a black
background. The MAP MODE can be changed at any time by pressing
the NAV MENU (or MAP MENU) key in MAP mode. The joystick can
then be toggled until the desired selection is shown in the MAP MODE
field. The new selection can be viewed by pressing MAP.

NOTE:

Large Text and CDI modes are only active when a DIRECT TO or flight
plan is running.
