PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

FORMWORK

Single Hole Deck Mounted Tub Fillers

INSTALLATION GUIDELINES

Page 4 of 4


4.17.2014

These guidelines have been prepared for the professional contractor to aid in the installation of:
FORMWORK DECK MOUNTED EXPOSED TUB FILLER (STYLE# FMXT30) AND DECK MOUNTED
EXPOSED TUB FILLER WITH HANDSHOWER (STYLE# FMXT50)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.

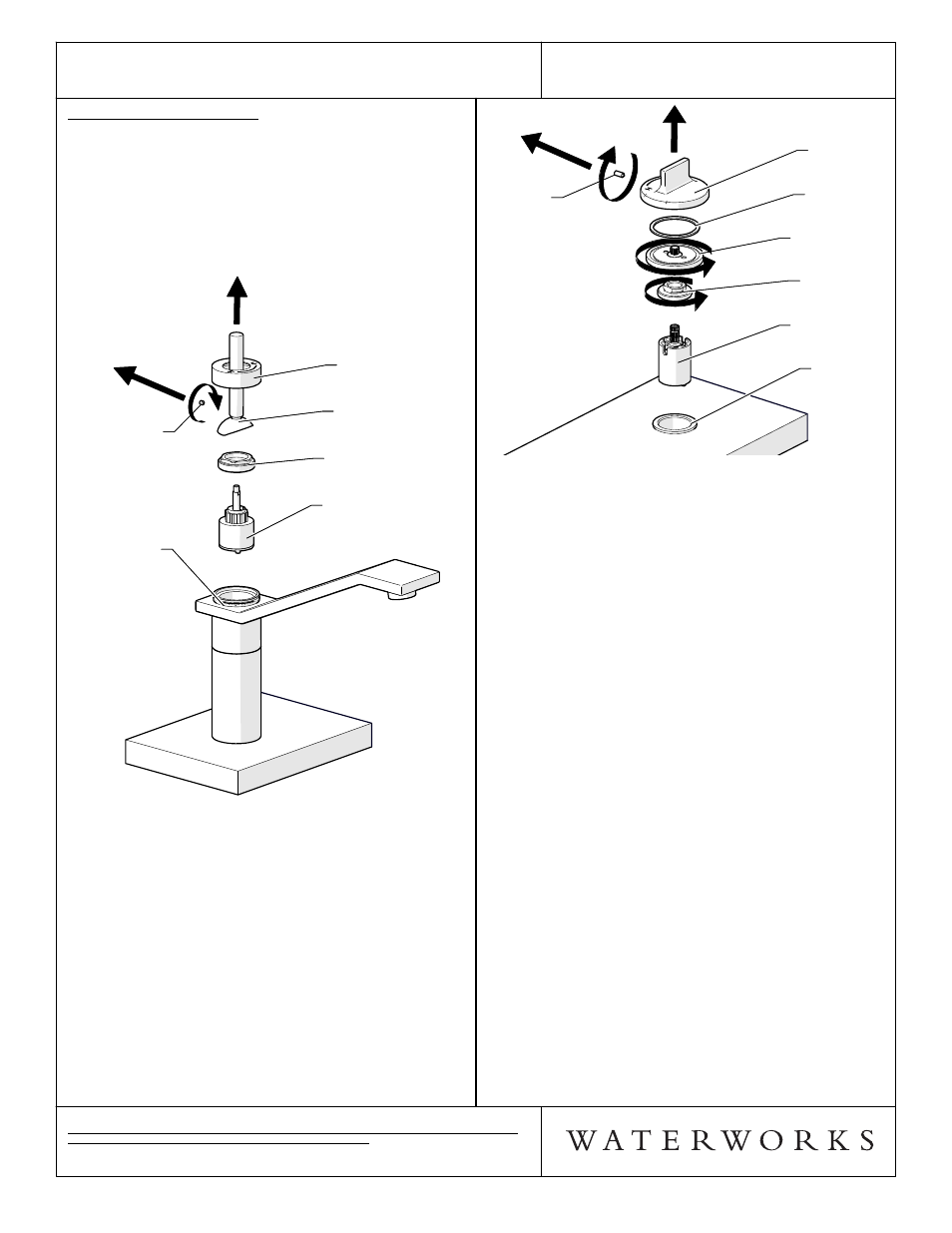

SERVICE THE CARTRIDGE:

¾ See Figure 6 for steps 21 & 22.

21. Remove the SET SCREW from the back of the

joystick HANDLE and lift handle to remove COVER
& HANDLE.

22. Unthread RETAINING COLLAR to remove

CARTRIDGE from SPOUT ASSEMBLY.

SPOUT

ASSEMBLY

CARTRIDGE

SET SCREW

RETAINING

COLLAR

HANDLE

COVER

SPOUT

ASSEMBLY

CARTRIDGE

SET SCREW

RETAINING

COLLAR

HANDLE

COVER

FIGURE - 06

¾ See Figure 7 for steps 23 - 26 (For FMXT50 only).

23. Remove and UNTHREAD the SET SCREW from the

back of the HANDLE and lift handle to remove.

24. Unthread the ESCUTCHEON from the VALVE BODY.

25. Unthread the RETAINING COLLAR from the VALVE

BODY to access PROGRESSIVE CARTRIDGE.

VALVE

BODY

PROGRESSIVE

CARTRIDGE

SET

SCREW

RETAINING

COLLAR

ESCUTCHEON

PLASTIC

WASHER

HANDLE

VALVE

BODY

PROGRESSIVE

CARTRIDGE

SET

SCREW

RETAINING

COLLAR

ESCUTCHEON

PLASTIC

WASHER

HANDLE

FIGURE - 07

(For FMXT50 only)


¾ If further assistance is required, please contact

Product Support at 1-800-927-2120 (8am-6pm EST).

¾ See service part document for parts ordering,

available on WATERWORKS.COM.

*

Putty contains oils and can cause permanent
discoloration on certain materials such as marble,
granite and any porous surface.
