LEGEND
1 — Lubricating Tube
2A — O-Ring
2B — O-Ring
3
— Seal Housing
4 — Coupling Guard Mounting Ring
5 — Plain 1 ⁄
2
-in. Washer (8 Required)
6 — Hex Head Bolt, 1 ⁄ 2 -13 × 4 lg (8 Required)
7 — Windage Baffle
8 — Shaft End Labyrinth
9 — Screw 1 ⁄
4
- 20 × 3 ⁄
4
lg (4 Required)
10 — Screw, 10-24 × 1 ⁄ 2 lg
11 — Key, Contact Sleeve
12 — O-Ring
13 — Compressor Shaft
14 — O-Ring
15 — Lock Nut
16 — Snap Ring (Service tool only; must be removed for operation)
17 — Spring Contact Sleeve
18 — Contact Sleeve
19 — Outer Carbon Ring
20 — Coupling (Connection to atmospheric oil chamber)
21 — Rotating Contact Ring
22 — Diaphragm Retainer
23 — Inner Seal Retaining Screw, 10-24 × 1 lg (14 Required)
24 — Gasket
25 — Diaphragm
26 — Inner Carbon Ring
27 — Inner Seal Spring
28 — Inner Seal Retainer
29 — Seal Gland Sleeve
30 — Spacer
31 — Journal Bearing Housing
32 — Journal Bearing
33 — Inner Seal Shim
34 — Inner Carbon Guide Ring
35 — O-Ring
36 — Inner Carbon Key
37 — Screw, 10-24 × 1 1 ⁄
4
lg (2 Required)
38 — Retaining Ring
39 — Seal Shoulder
40 — Compressor End Wall
41 — Thread Cut Screw, 8-32 × 1 ⁄
4
lg (3 Required)
42 — Screw, 5 ⁄ 16 -18 × 1 3 ⁄ 4 lg (2 Required)

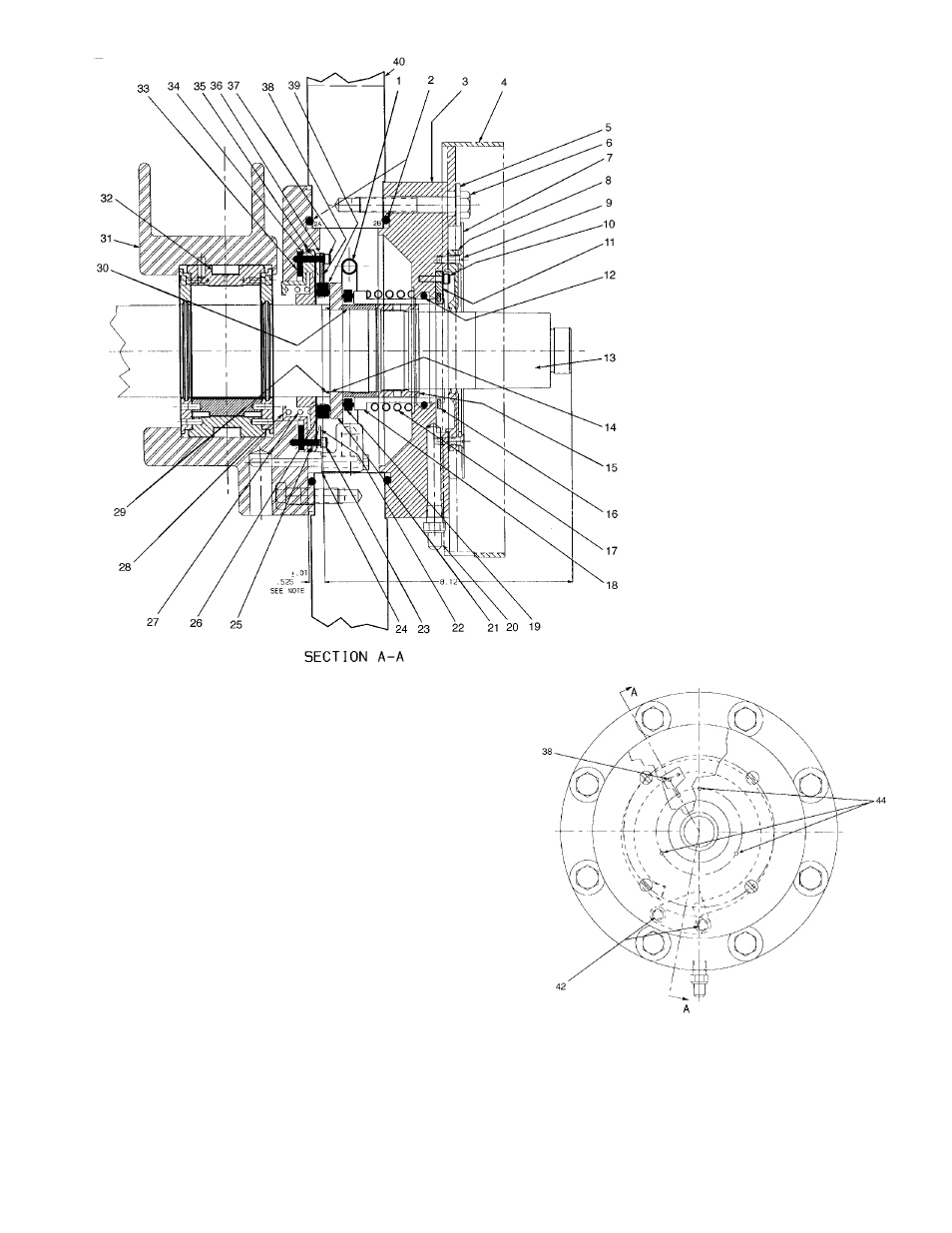

Fig. 36 — Contact Seal
NOTE: Adjust shims (Item 33) to main-
tain .525 ± .01 in. (13.3 ± .3 mm) dimen-
sion with shaft thrust toward drive and check
carbon for +.06 minimum travel.
