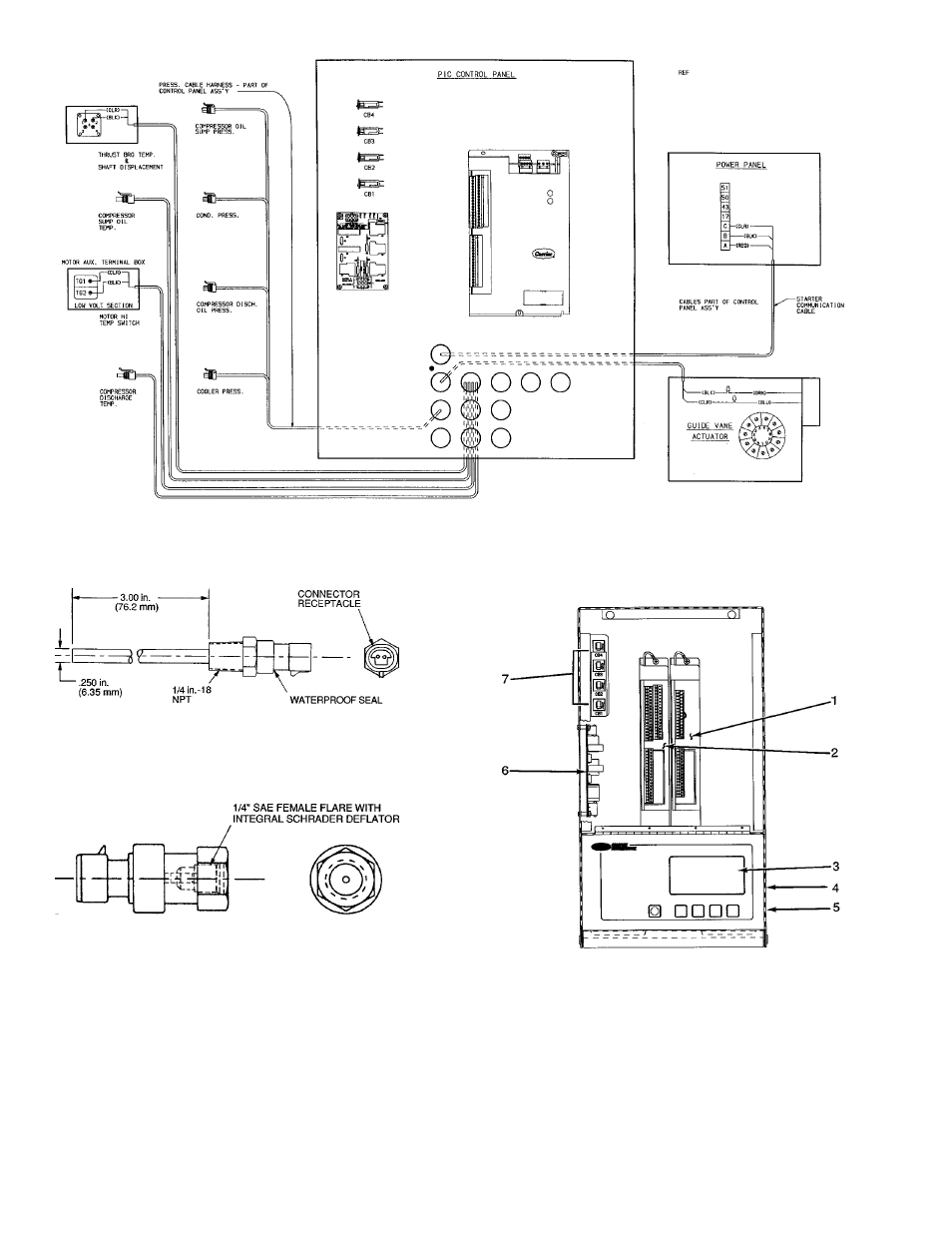

Fig. 6 — 17EX Controls and Sensor Locations (cont)
Fig. 7 — Control Sensors (Temperature)
Fig. 8 — Control Sensors
(Pressure Transducer, Typical)
LEGEND
LID — Local Interface Device
PIC — Product Integrated Controls
PSIO — Processor Sensor Input/Output Module
1 — Optional 8-Input Module for Spare Inputs to Control
Interface (One of Two Available)
2 — PSIO
3 — LID Input/Output Interface Panel Display
4 — Oil Differential Pressure/Power Supply Module (Hidden)
5 — LID Light (Hidden)
6 — 6-Pack Relay Board
7 — Circuit Breakers (4)
Fig. 9 — Control Center (Front View);
Shown with Options Module
