Connect the Xcelorin ESC and Sensorless Motor
There are three wires from the ESC a Black, Blue and White for the motor.

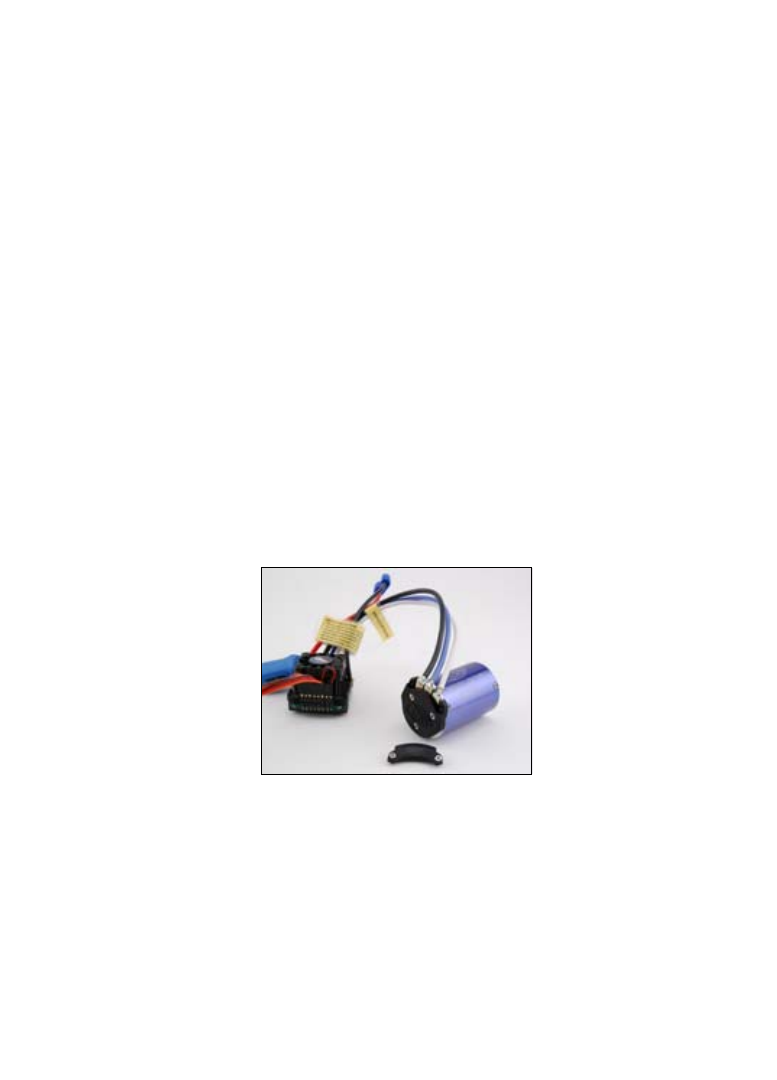

Below see an Xcelorin Sensorless Brushless motor with the Protection Cap
removed for easy access and wire installation
Each wire will be soldered to a single motor tab. Make certain there is not a
short across any of the motor connections. If shorted together, you will
damage the ESC when the batteries are connected.
If the motor you are using runs backwards after installation, you can correct
this in one of two ways:
•
Unsolder any two motor wires, switching the position on the motor and
re-solder.
•
Using the ESC Software, you can select the Reverse Rotation feature.
