LOSB9515 Xcelorin Electronic Speed Control v1.1 Page 12
Using the Quick Programming Card

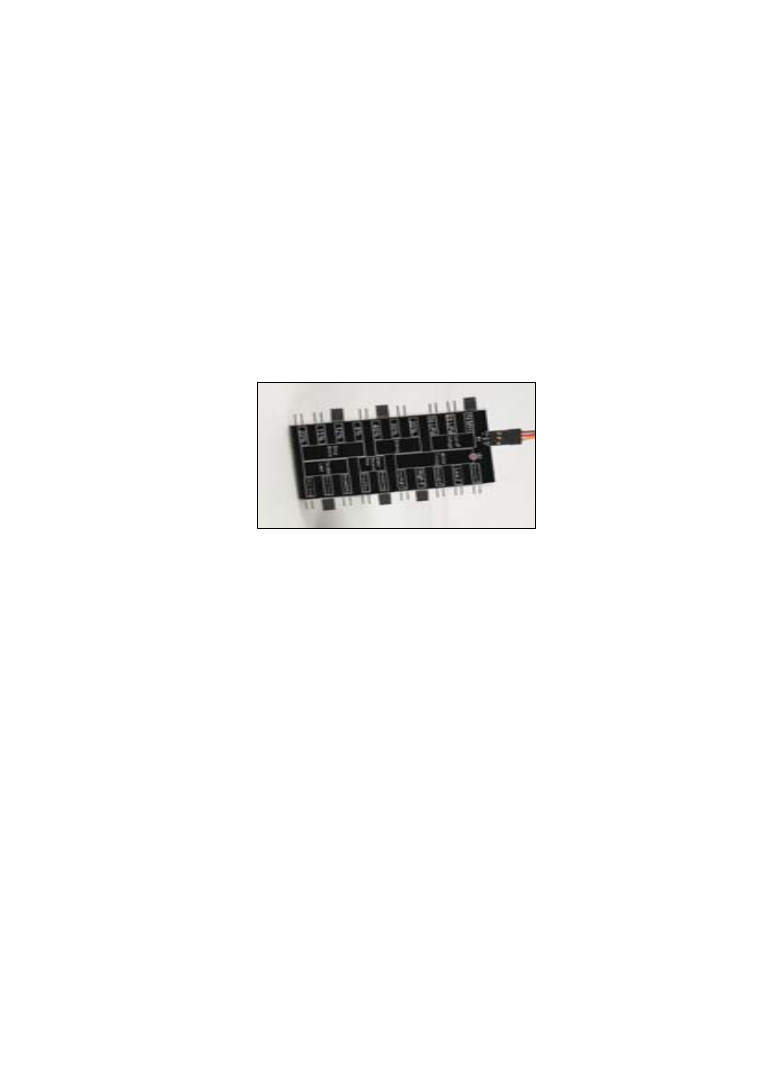

With the AQPC in your hand and the back facing you, notice the small jumper
connectors. The jumpers are used to indicate which function you want to
activate.
To change the settings rearrange the small jumpers to the desired settings.
To Upload to the ESC do the following:
1. Ensure the transmitter and vehicle are turned off.
2. Make sure a battery pack is installed that has some charge in it.
3. Connect the battery to the vehicle.
4. Turn the power on to the ESC, wait for the Blue (or Blue/Yellow) LED to
come on.
5. Disconnect the Signal wire for the ESC from the receiver.
6. Connect the Signal wire to the top of the AQPC, ensure it is connected
correctly.
