10. Interfaces - Pin Assignments Medi Client IIA - Instructions for use (Version 1.03)

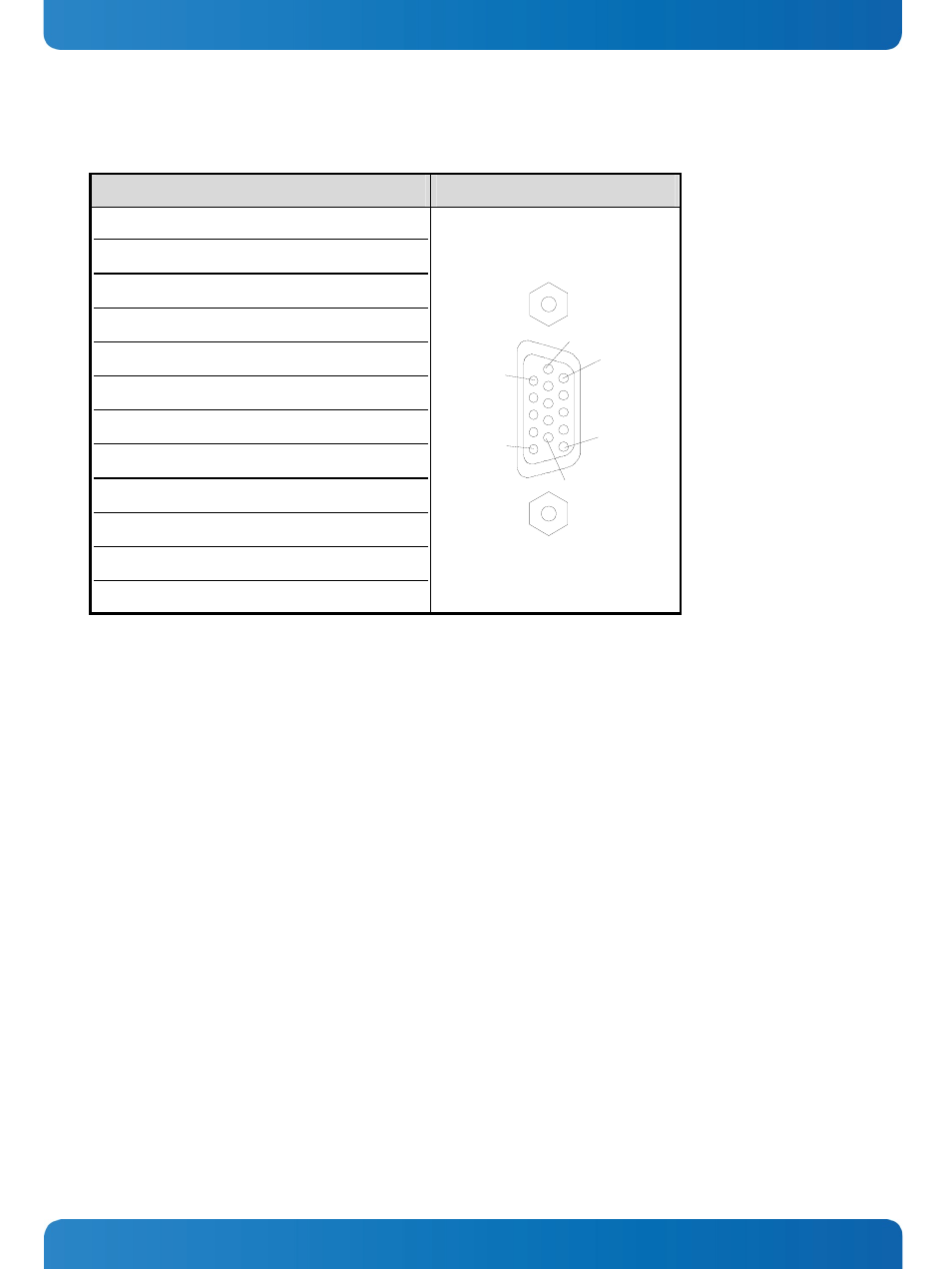

10.1.8. VGA Port (VGA)
Pin Signal Name 15-pin D-SUB Connector (female)
1 Analog red output
2 Analog green output
3 Analog blue output
4 N.C.
5–8 GND
9 +5 V (DDC)
10 GND
11 N.C.
12 SDA (DDC)
13 TTL HSync
14 TTL VSync
15 SCL (DDC)
1
5
15
11
10
6
