7. Product Description Medi Client IIA - Instructions for use (Version 1.03)
7.6. Mounting to an optional VESA ® Mounting System
The Medi Client IIA system can be mounted to an optional VESA ® 75/100 compliant mounting system.
‰ Medi Client 104 is VESA ® 75 compliant (refer to Fig. 31).
‰ Medi Client 150 is VESA ® 75/100 compliant (refer to Fig. 34).
The Medi Client IIA system is designed to be used in vertical position with the interfaces downwards.
The system may be operated in the positions permitted by the VESA ® 75/100 mounting system used but with following
restriction:
The allowed operating positions of the Medi Client IIA with VESA ® 75/100 compliant mounting system
are only between 0° and 85° as shown in Fig. 25.
Side with interfaces

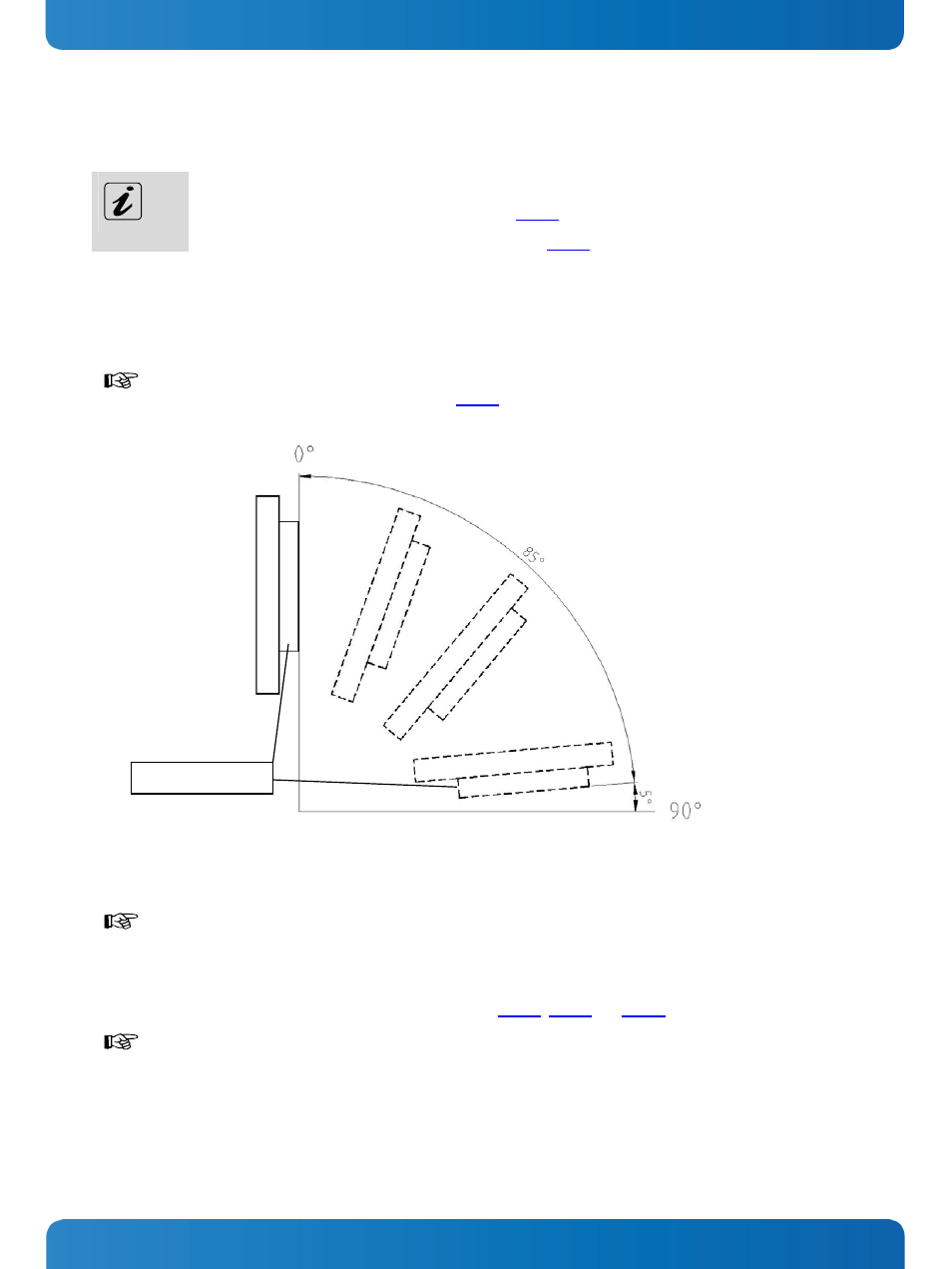

Fig. 25: Allowed operating positions of the Medi Client IIA with VESA ® 75/100 compliant mounting system (between 0° and 85°).
Use four M4 metric screws to attach the system to a VESA ® 75/100 mounting system. Depending on the
VESA ® mounting system, choose the length of the screws so that the screw-in depth of the screws
should be between 4mm (0.16") up to 7mm (0.28").
Using longer screws could damage the internal components of the Medi Client IIA system.
For VESA ® mounting details, please observe the Fig. 31, Fig. 32 and Fig. 34.
When powering on the Medi Client IIA system, make sure that the air intake and exhaust openings are
not obstructed.
In order to ensure a proper operation of the system, we recommend keeping the ambient temperature
around an operating Medi Client IIA system within the specified intended use temperature
range (0°C-40°C).
