10. Interfaces - Pin Assignments Medi Client IIA - Instructions for use (Version 1.03)

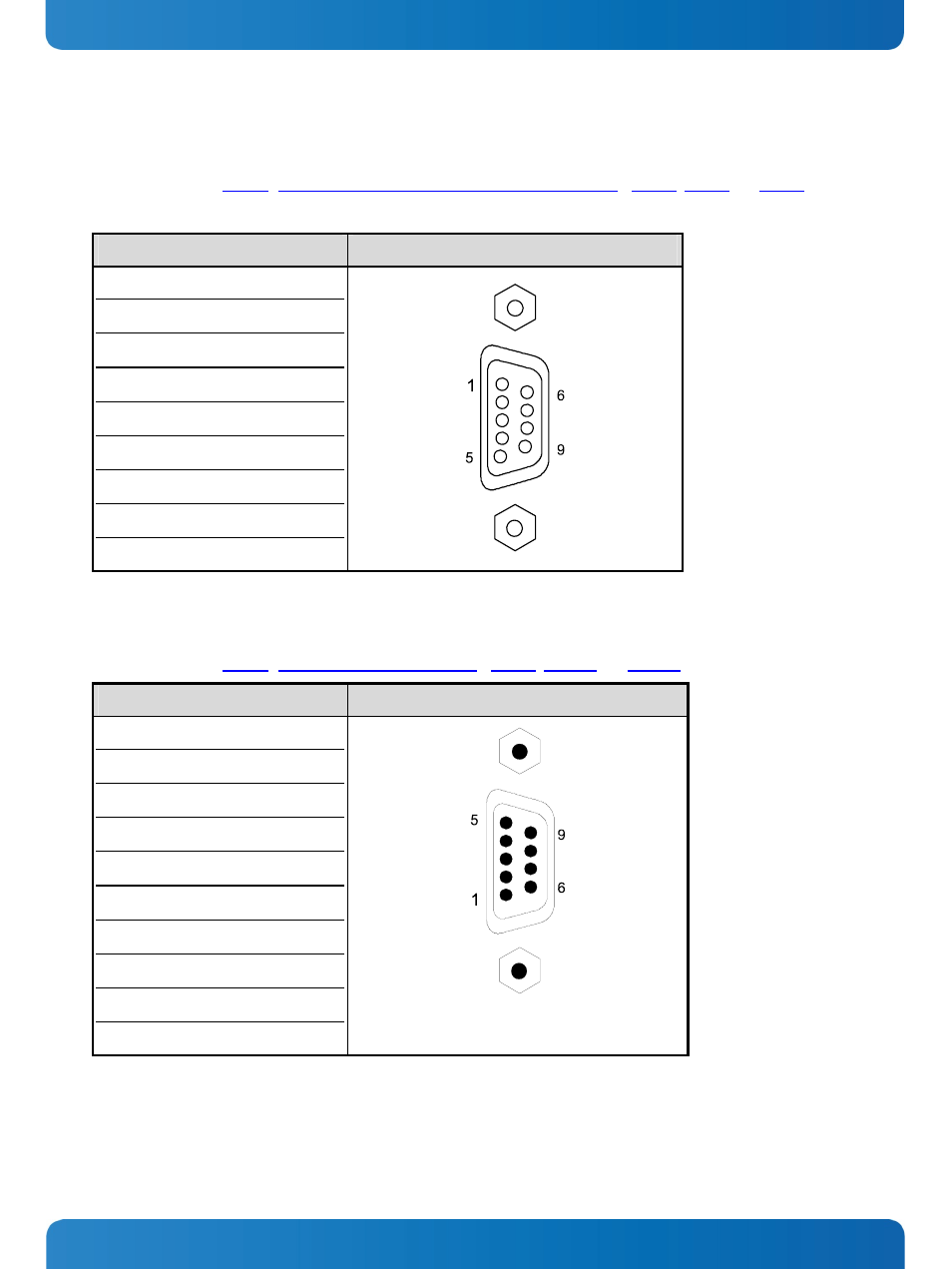

10.1.6. Serial Port (RS422/RS485) configured as RS485 (2-Wire Mode), half duplex
Refer to the chapter 7.2.5.6 “Extension as RS422/RS485 Serial Interface Connector”, Table 6, Table 7 and Table 8.
Pin Signal Name 9-pin D-SUB Connector (female)
1 Data-
2 NC
3 Data+
4 NC
5 GND (Signal Ground)
6 NC
7 NC
8 NC
9 NC
10.1.7. CAN Connector
Refer to the chapter 7.2.5.7 “Extension as CAN BUS Interface”, Table 9, Table 10 and Table 11.
Pin Signal Name 9-pin D-SUB Connector (male)
1 NC
2 CANL (galavic separated)
3 CAN0V (galavic separated)
4 NC
5 NC
6 NC
7 CANH (galavic separated)
8 NC
9 NC
case GND
