7.3. Top, Left and Right Side View
2
1

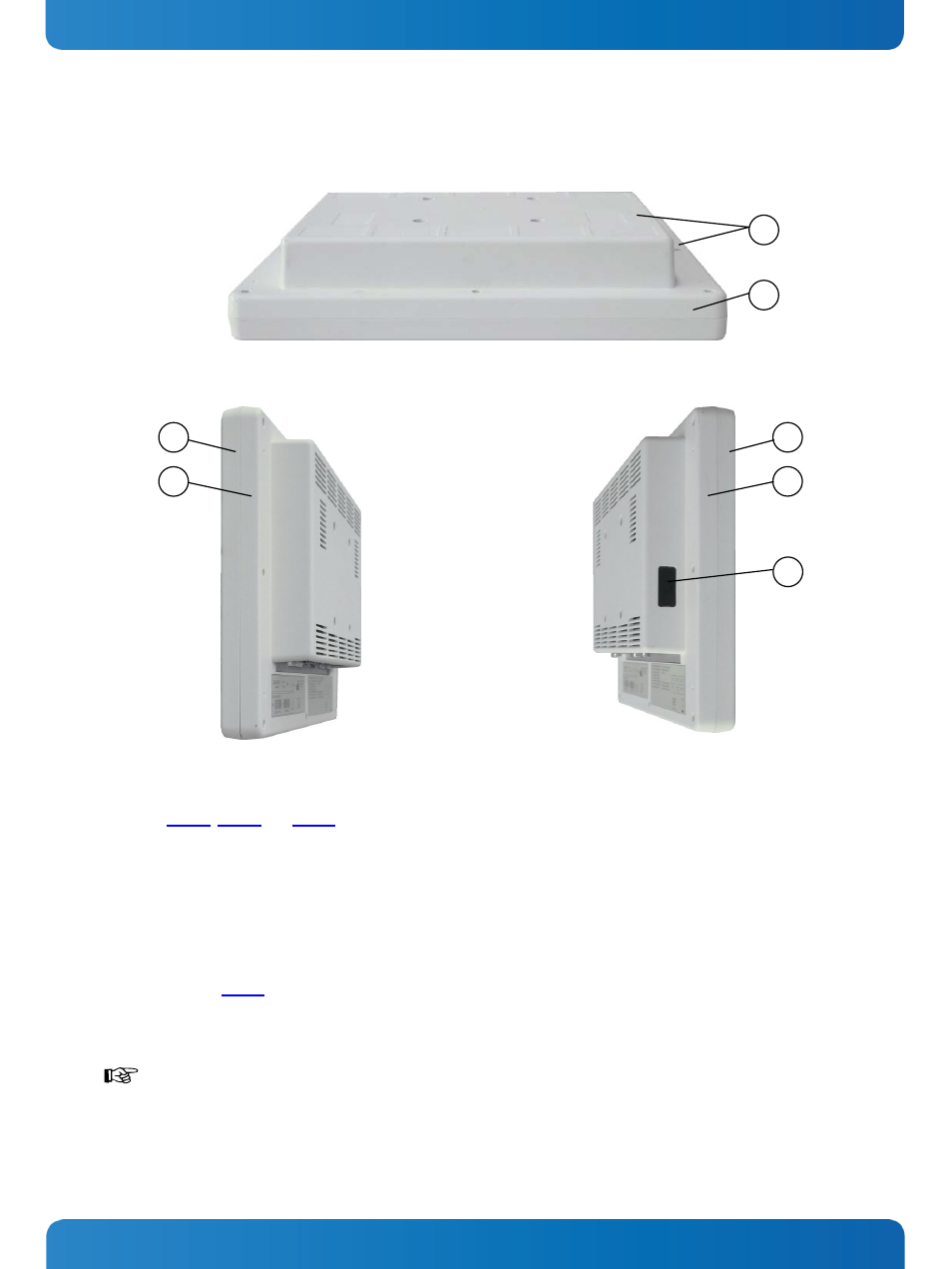

Fig. 21: Top view
1 1
2
3
2
Fig. 22: Right side of the Medi Client IIA system Fig. 23: Left side of the Medi Client IIA system
Legend for Fig. 21, Fig. 22 and Fig. 23:
1 Front part of the display/system enclosure
2 Rear part of the display/system enclosure 3 Covered USB port
7.3.1. USB Interface Connector on the Left Side of the System
The USB connector (Fig. 23, pos. 3) is covered by an elastic captive rubber coat. The rubber coat prevents the penetration
of fluid, if no device is connected.
This connector USB 2.0 allows you to connect different USB-compatible devices to the Medi Client IIA system.
The Medi Client IIA system only complies with IP21 protection class if the left side USB connector is
covered by the elastic captive rubber coat.
The front display side the Medi Client IIA system only ensures the IP65 protection class.
