7. Product Description Medi Client IIA - Instructions for use (Version 1.03)
7.7. Getting started
In order to use a DC power source as main power source, a Phoenix Power Plug Terminal for connecting a DC power cable
to the system can be ordered.
‰ Before using your system, you should first become familiar with the system components and check
that everything is connected properly.
‰ It is recommended that the last cable attached to the system should be the power cable!
7.7.1. Connecting to AC Power Source via the optional AC/DC Adapter

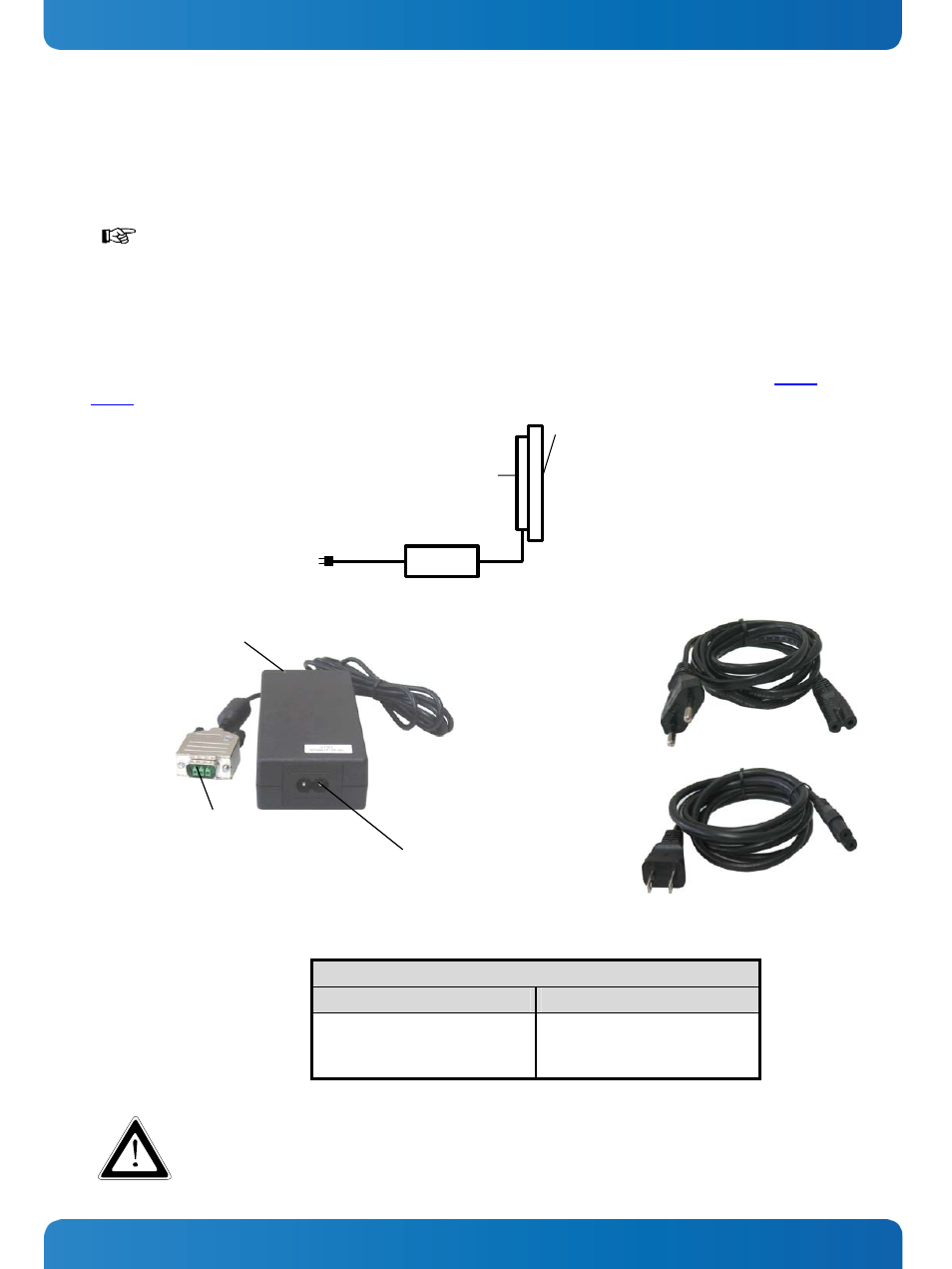

The Medi Client IIA system can be connected to the AC power source via the optional AC/DC adapter (refer to Fig. 26 and
Fig. 27).
PC-Unit
Display
10.4" or 15"
AC/DC
Adapter
Fig. 26: Connecting to AC power source via the AC/DC adapter
Power LED
EU
DC Power
Connector
AC Power Connector
US
Fig. 27: External AC/DC adapter for with AC power cord for Class II equipment (complying to the
EU / US requirements)
AC/DC Adapter for Class II equipment
AC Input DC Output
100-240 V
1.5 -0.7A
47-60 Hz 24 VDC
2.5 A
If the Medi Client IIA is used with an optional AC/DC adapter, the operation of the Medi Client IIA is
permitted only with original accessories approved by Kontron Europe:
‰
“external AC/DC adapter”, Part Number: 1036-2985
