10. Interfaces - Pin Assignments Medi Client IIA - Instructions for use (Version 1.03)
10.

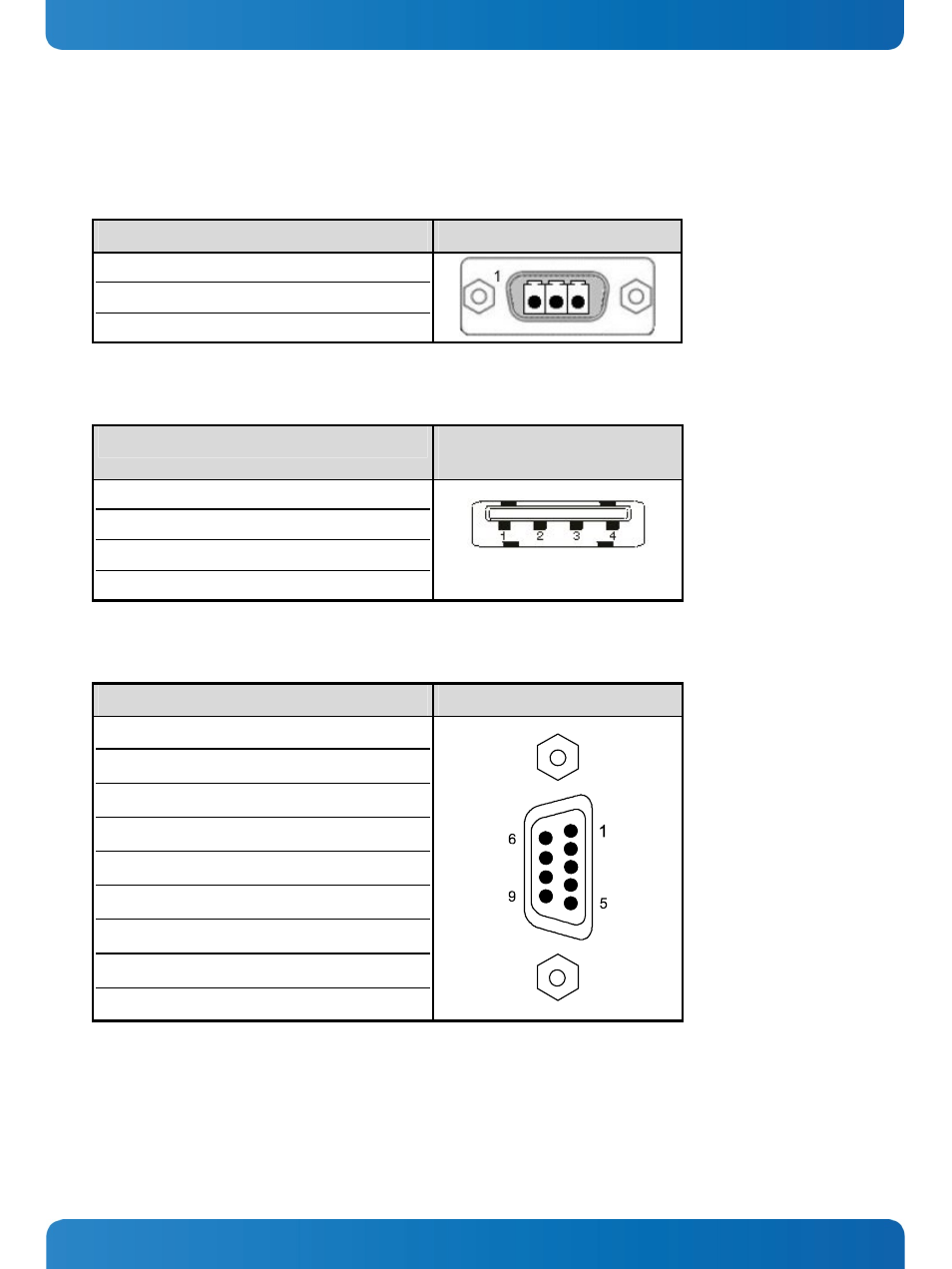

Interfaces - Pin Assignments
10.1.1. Power Connector
Pin Signal Name 3-pin POWER SUBCON (male)
1 0V input (-24 VDC polarity on the unit panel)
2 NC
3 +24 VDC (input)
10.1.2. USB Interfaces (USB)
Pin Signal Name 4-pin USB Socket
Type A Version 2.0/1.1
1 VCC
2 Data-
3 Data+
4 GND
10.1.3. Serial Port RS232
Pin Signal Name 9-pin D-SUB Plug (male)
1 DCD (Data Carrier Detect)
2 RxD (Receive Data)
3 TxD (Transmit Data)
4 DTR (Data Terminal Ready)
5 GND (Signal Ground)
6 DSR (Data Set Ready)
7 RTS (Request to Send)
8 CTS (Clear to Send)
9 RI (Ring Indicator)
