9

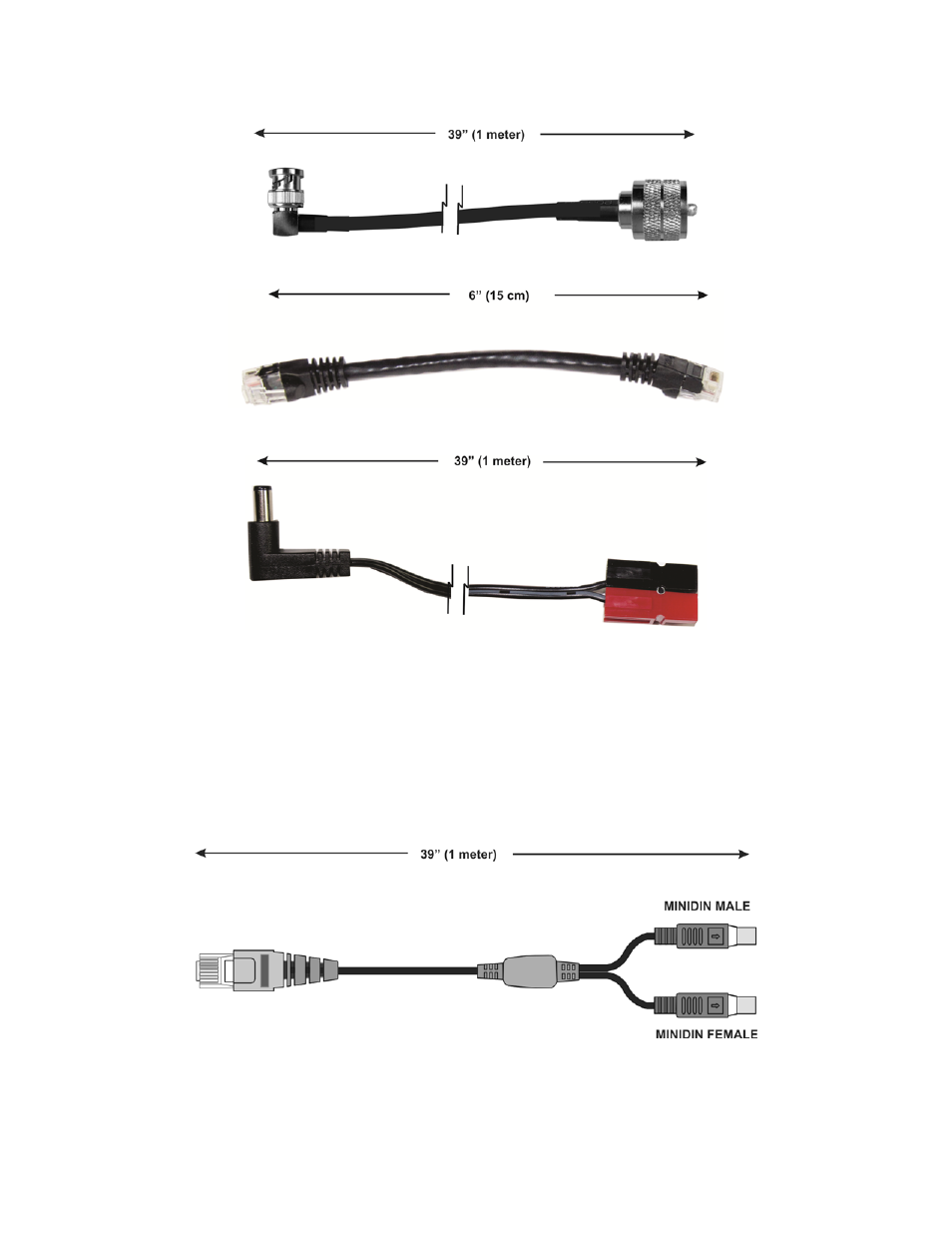

Right Angle BNC to PL-259 RF Cable
CAT6 Cable
KXPA100 to KX3 Power Cable
FT-817 Interface Cable
This cable allows closer integration of the KXPA100 with a Yaesu FT-817 transceiver or any transceiver using
the FT-817 control interface. See Amplifier Connections using the FT-817 Interface Cable on page 16 and
Operation with a Yaesu FT-817 Using the Optional FT-817 Interface Cable on page 27. The mini DIN female
connector allows you to use this cable with other equipment you may have already connected to the FT-817.
This cable is available from Elecraft (order KXFT817CBL). You can make one yourself. See the schematic
diagram on page 45.
