Operation
The location and function of each control and LED indicator are described below. Operating instructions for the
amplifier when used with the KX3 and optional KX3 to KXPA100 Adapter Cable are on page 24. Operating
instructions for using the amplifier with a Yaesu FT-817 and the optional FT-817 interface cable are on page 27.
Operating instructions for the amplifier when used with any other transceiver or with a KX3 without the
optional adapter cable are on page 27.
CAUTION
Ensure the amplifier is connected to a dummy load or antenna before
attempting to transmit. A 50-ohm dummy load capable of handling 100
watts is recommended for initial testing.
Front Panel Controls and Indicators
The front panel controls and indicators are shown in Figure 7 and are described in the following text.

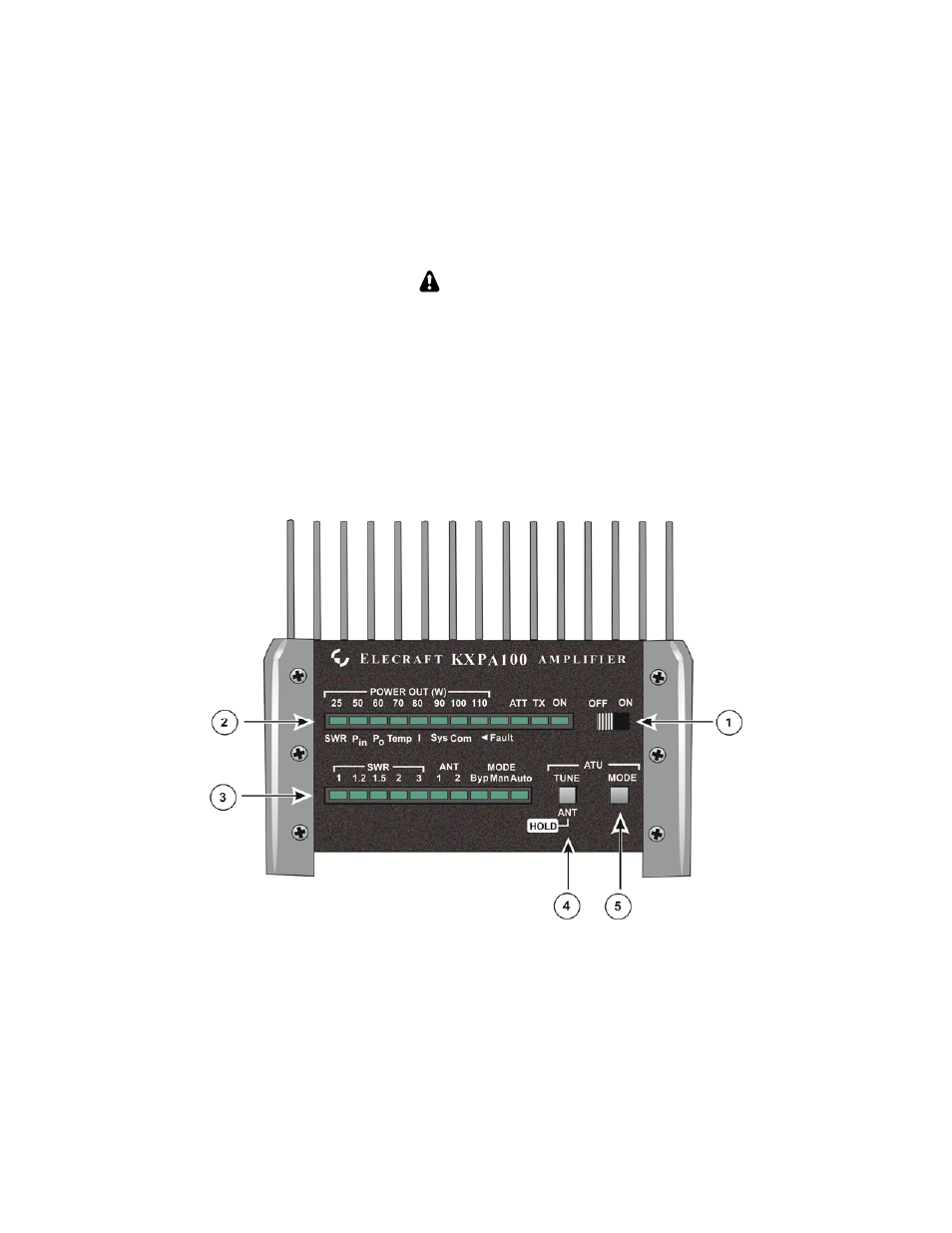

Figure 7. Front Panel Controls and Indicators
