Elecraft KXPA100 Manual User Manual
Page 50
50
After removing the bottom U-cover, be sure you have not dislodged any of the TMP connectors on the
cables leading to the rear panel connectors as shown below. As part of the ALC adjustment procedure, you will
need to attach cables to the rear panel. Be sure the TMP connectors are not dislodged in the process.
If you have the KXAT100 ATU installed, see Figure 20.
If you do not have the KXAT100 ATU installed, see Figure 21.

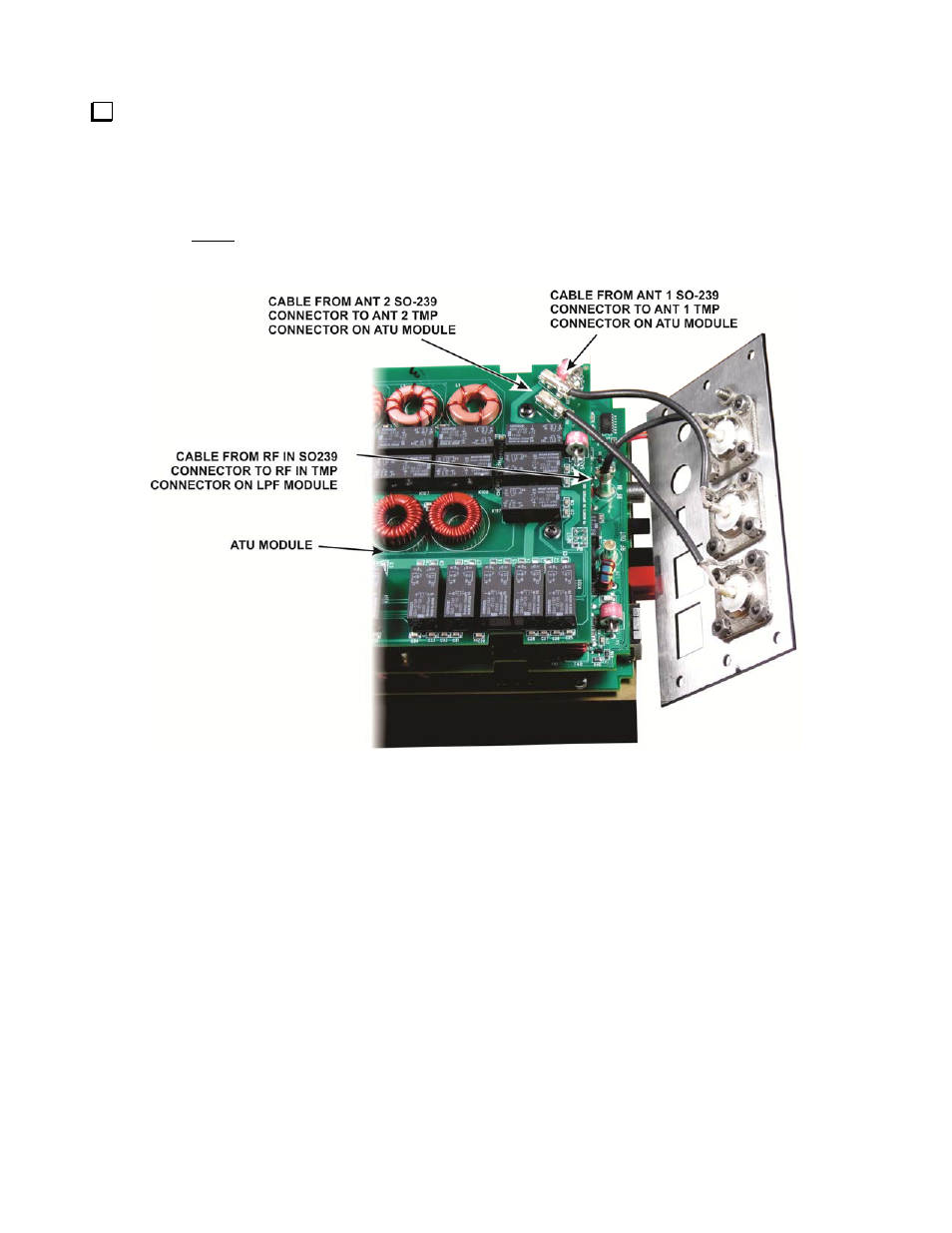

Figure 20. Rear Panel RF Cable Connections with ATU.
