Page 86

June 2012

PART NO. Y017

Page 86 of 90

Series 433 Triple Set Installation Instructions

8365

8363

8367

8368

8372

SEALANT

8372

8363

8364

8366

W102

GLASS

8393 SYM.

SEALANT

W102

SECTION IX: Glazing

(Includes Offset and Center-Set Glazing)

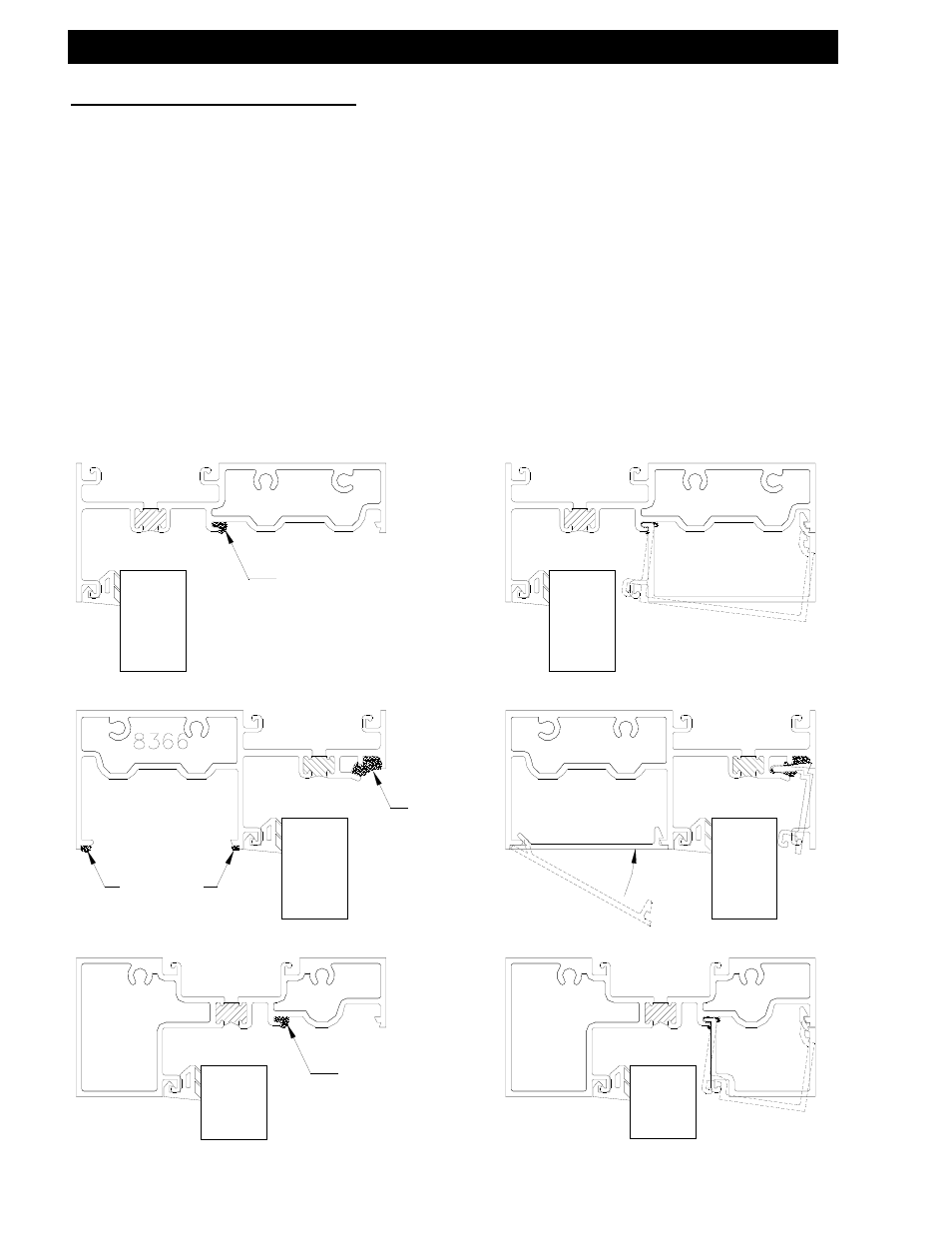

Step 11) Installing Removable Glass Stop

After the glazing unit is installed, the removable glass stop must be placed in position
before the glazing gaskets can be installed. Ensure the glass stop hook track is clean

and free of oil and dirt. Run a continuous bead of silicone sealant at the areas shown
in Figures 114 through 116 below. Before the sealant begins to cure, place the glass

stop into position and rotate the snap leg up to snap the stop into place. Strong hand
pressure or a slight tap with a mallet will ensure the glass stop snap is engaged. This

procedure applies to both inside and outside glazed configurations. (Inside glazed
shown.)

[FIG. 116]

[FIG. 115]

[FIG. 114]
