June 2012 PART NO. Y017 Page 48 of 90
Series 433 Triple Set Installation Instructions
SECTION IV: Unit Assembly

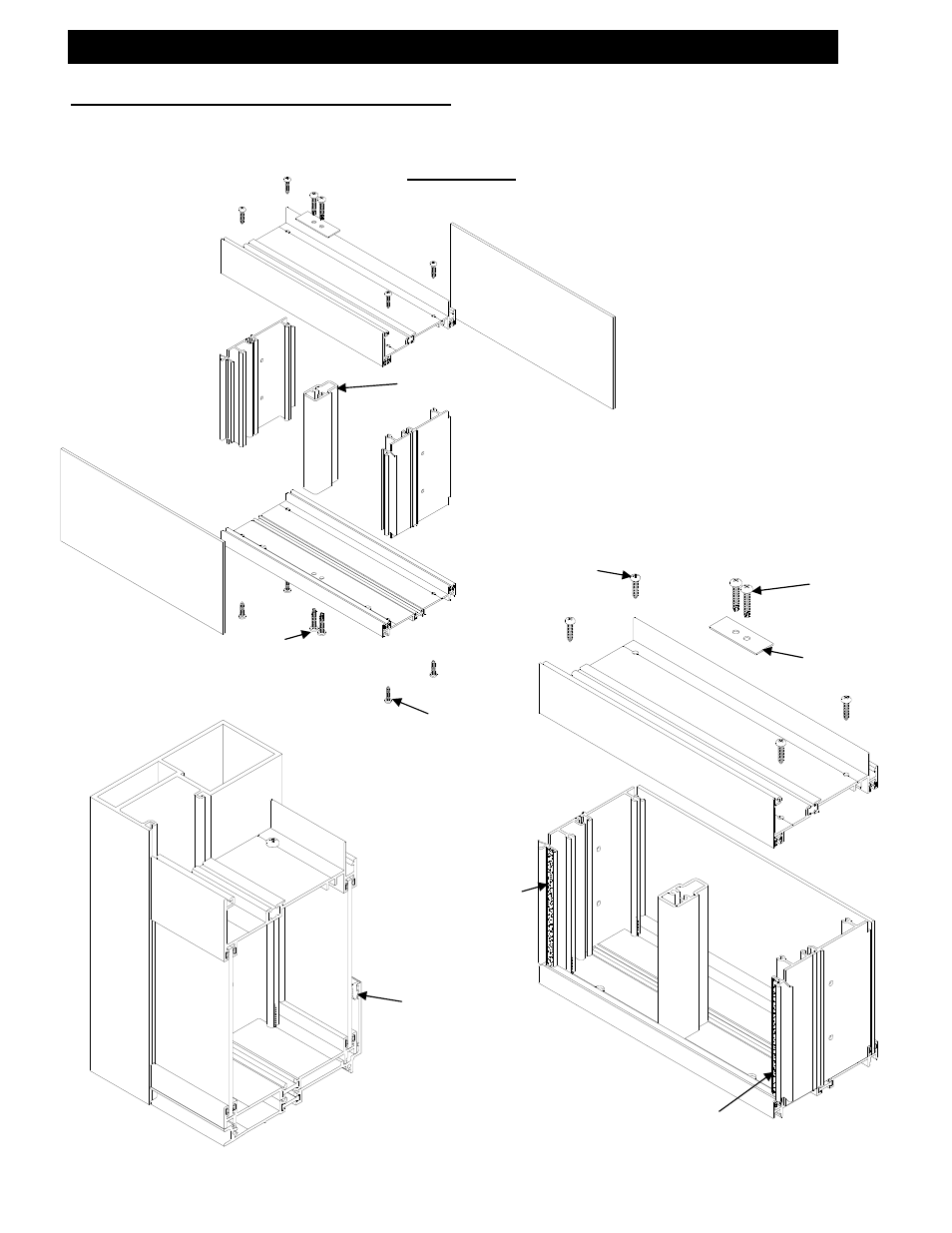

F. Adjustable Height Side Lite (Offset)
Assembly
ATTACH THE VERTICAL MEMBERS TO
THE SILL AS SHOWN. OPTIONAL DEAD
LOAD SUPPORT TUBE TO BE USED AS
NEEDED.
RUN A CONTINUOUS BEAD OF
SEALANT UP THE INTERIOR GASKET
RACEWAY FOR THE FULL LENGTH OF
THE SIDE LITE VERTICAL.
BUTTER THE ENDS OF ALL
HORIZONTALS WITH BUTYL TYPE
SEALANT PRIOR TO ASSEMBLY OF THE
UNITS.
PLACE ASSEMBLY IN THE FRAME D.L.O.
AND ATTACH TO THE JAMBS WITH
STT6 FASTENERS.
RUN A CONTINUOUS BEAD OF
SEALANT UP THE VERTICAL SEALANT
TRACK (INTERIOR & EXTERIOR).
SLIDE BREAK METAL INTO PLACE AND
ATTACH HORIZONTAL AS SHOWN
BELOW.
9838 DEAD LOAD
SUPPORT TUBE
FWB6 WASHER
S129
W161 GASKET
TO RUN D.L.O.
SPZ1
SPZ1
S129
SEALANT
SEALANT
Note: Clean off all
excess sealant after
assembly.
Note: Wax Type Lubricate may be
required @ Assembly Fasteners
