June 2012

PART NO. Y017

Page 63 of 90

Series 433 Triple Set Installation Instructions

SECTION VIII: Installation

(Includes Offset and Center-Set Glazing)

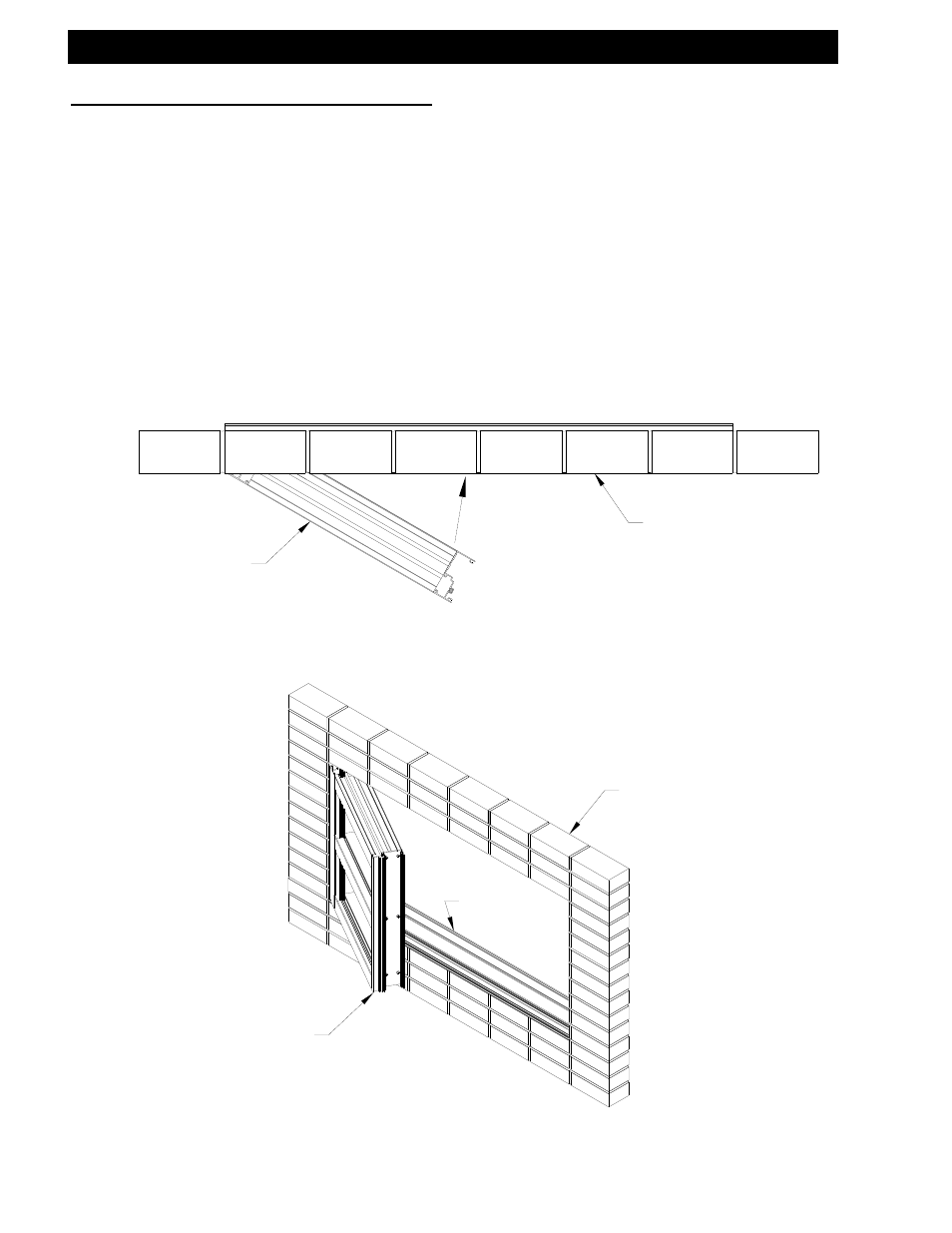

Step 2) Installing Jamb Side Ladder

Place the ladder on the subsill at an approximate 30° angle. While applying pressure
upward, rotate the ladder into the condition. See Figure 35 on page 58 for sill

placement into the subsill. When rotated correctly, the exterior face of the sill should
be flush with the exterior face of the subsill.

[FIG. 36]

[FIG. 37]

LADDER

CONDITION

2S44

SUBSILL

LADDER

CONDITION
