EFCO 433 Series - Manual (Page 42)

June 2012 PART NO. Y017 Page 42 of 90
Series 433 Triple Set Installation Instructions
SECTION IV: Unit Assembly
Use FW95 3” Dead Load Support Pin when
there is a Horizontal member on both
sides of the Transom Jamb or Vertical.
Use FW96 2” Dead Load Support Pin when
there is a Horizontal member on one side
of the Vertical or for Door Jambs with side
lites.
OTHER
DIES SIMILAR TO
ONE’S SHOWN.
8374
8349

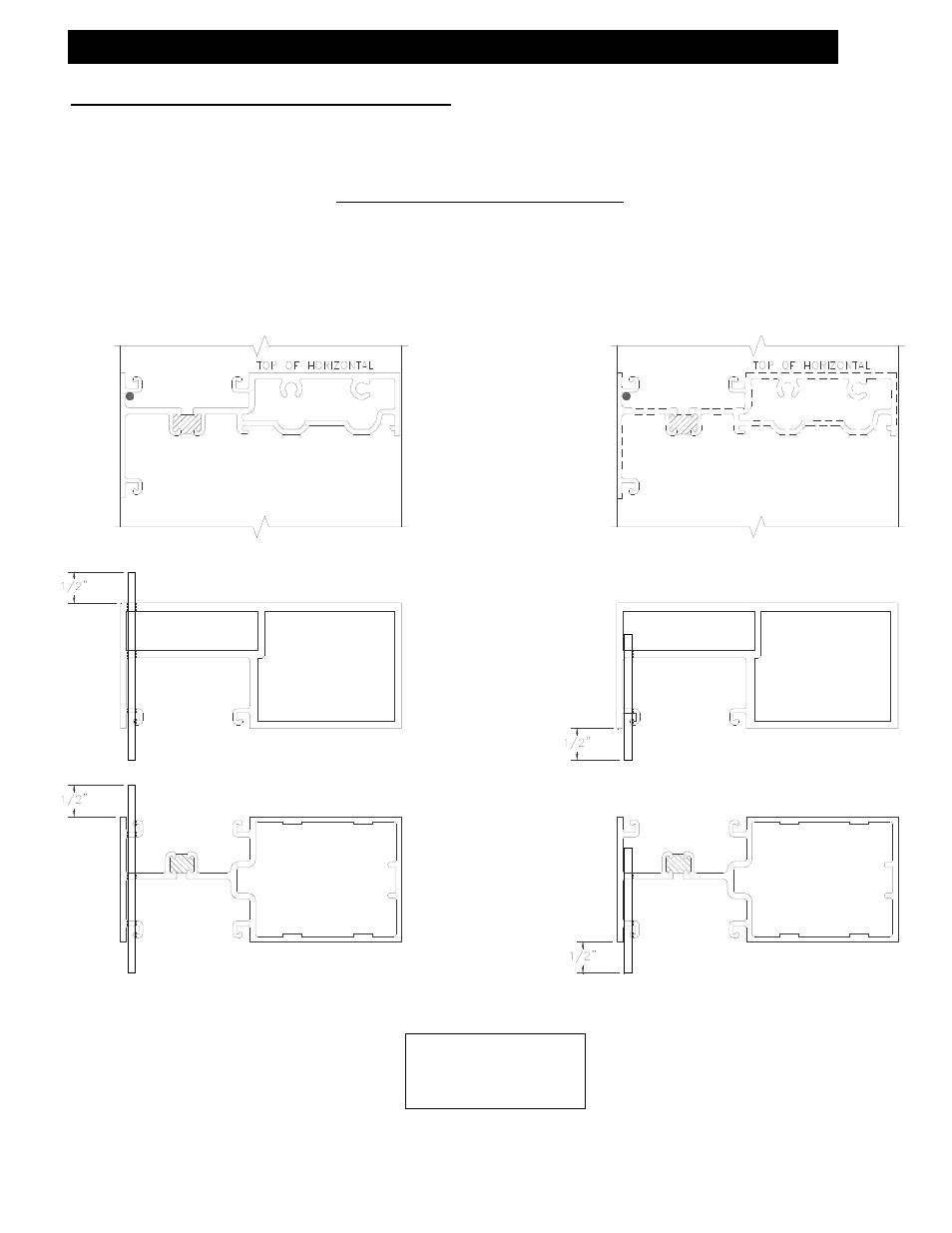

B. Shear Block (Offset and Center-Set)
Dead Load Pin Installation
Outside Set Shown
Inside Set Similar
