Page 43

June 2012

PART NO. Y017

Page 43 of 90

Series 433 Triple Set Installation Instructions

SECTION IV: Unit Assembly

Horizontal shown without

removable face for clarity

8385

8389

BUTTER THE ENDS OF ALL
HORIZONTALS WITH BUTYL TYPE
SEALANT AS SHOWN BY THE
SHADED AREAS PRIOR TO

ASSEMBLY OF THE UNITS.

EXTERIOR FACE

8362

STC8

8439

8363

STB5

Note: Clean off all

excess sealant after
assembly.

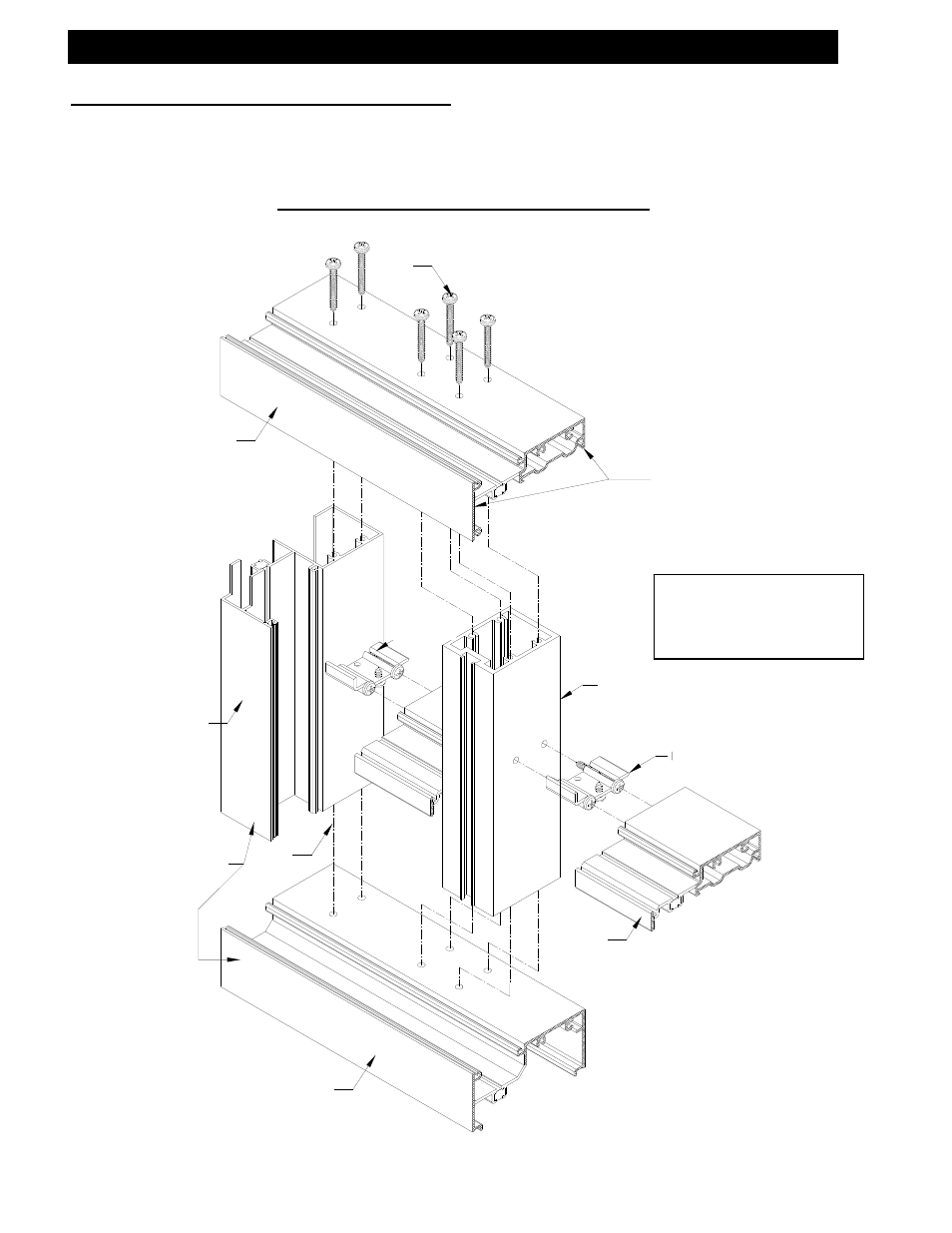

C. Head & Sill Through (Offset)

Offset Structural Glazed Assembly

Shear block packages

come with all required

fasteners.

K925

KN91 (4 ½”)

K925
KN91 (4 ½”)

Note: Wax Type Lubricate may be

required @ Assembly Fasteners
