Series 433 Triple Set Installation Instructions

SECTION IV: Unit Assembly

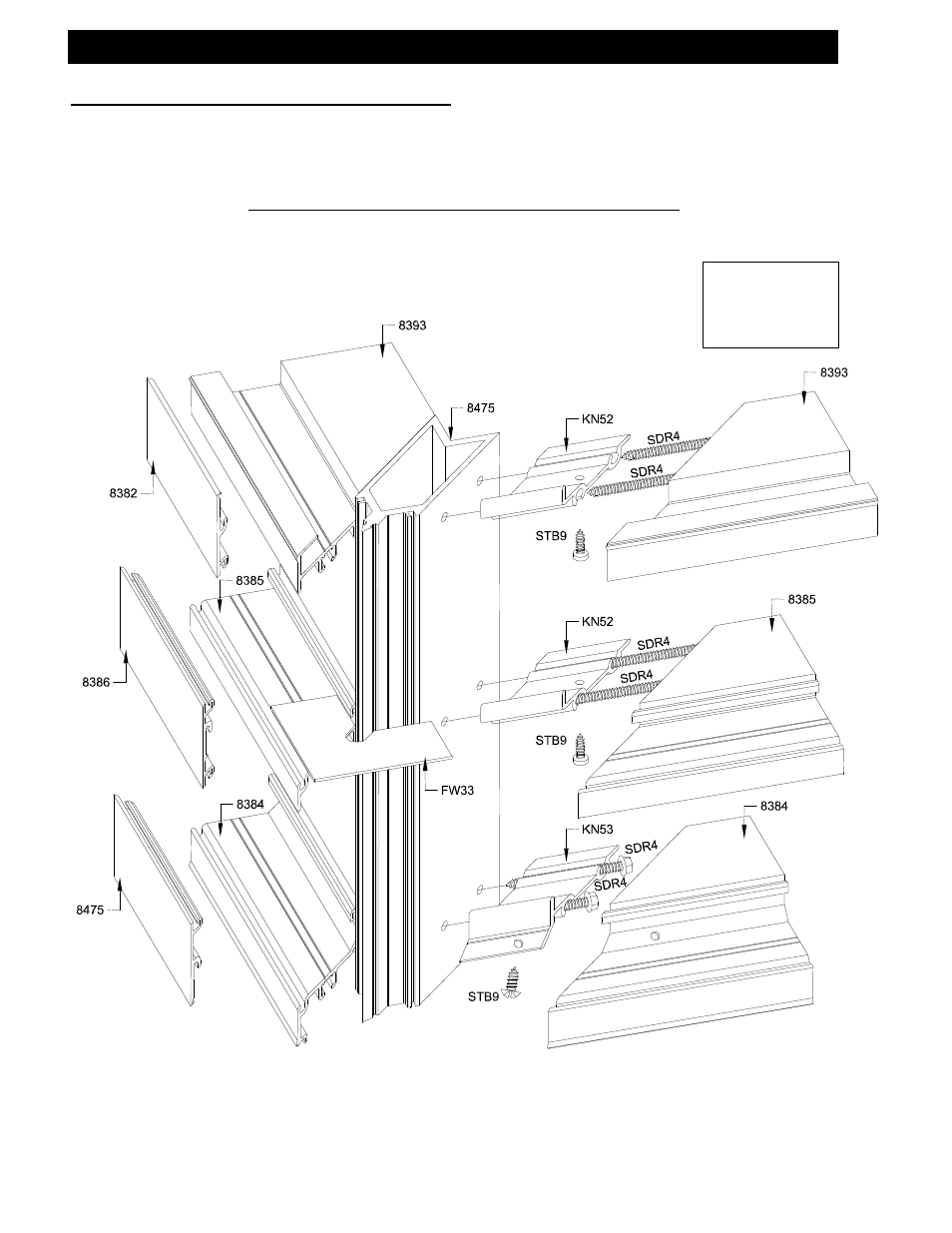

D. Screw Spline 90

 Corner (Offset)

Offset Glazed Assembly

with 90

 Mullion

Corner Mullion can be used at horizontal with removable face only.

See page 31 for sealant notes and locations.

4 ½” Head,

Horizontal &

Sill Similar

Note: Wax Type Lubricate may be

required @ Assembly Fasteners
