Series 433 Triple Set Installation Instructions

SECTION IX: Glazing

(Includes Offset and Center-Set Glazing)

OUTSIDE GLAZED SILLS

[FIG. 80]

OUTSIDE GLAZED HORIZONTALS

HN92

[FIG. 77]

[FIG. 76]

8372

8368

[FIG. 75]

8364

8366

8367

8363

8365

[FIG. 81]

8375

HN32

8362

HN32

[FIG. 79]

8362

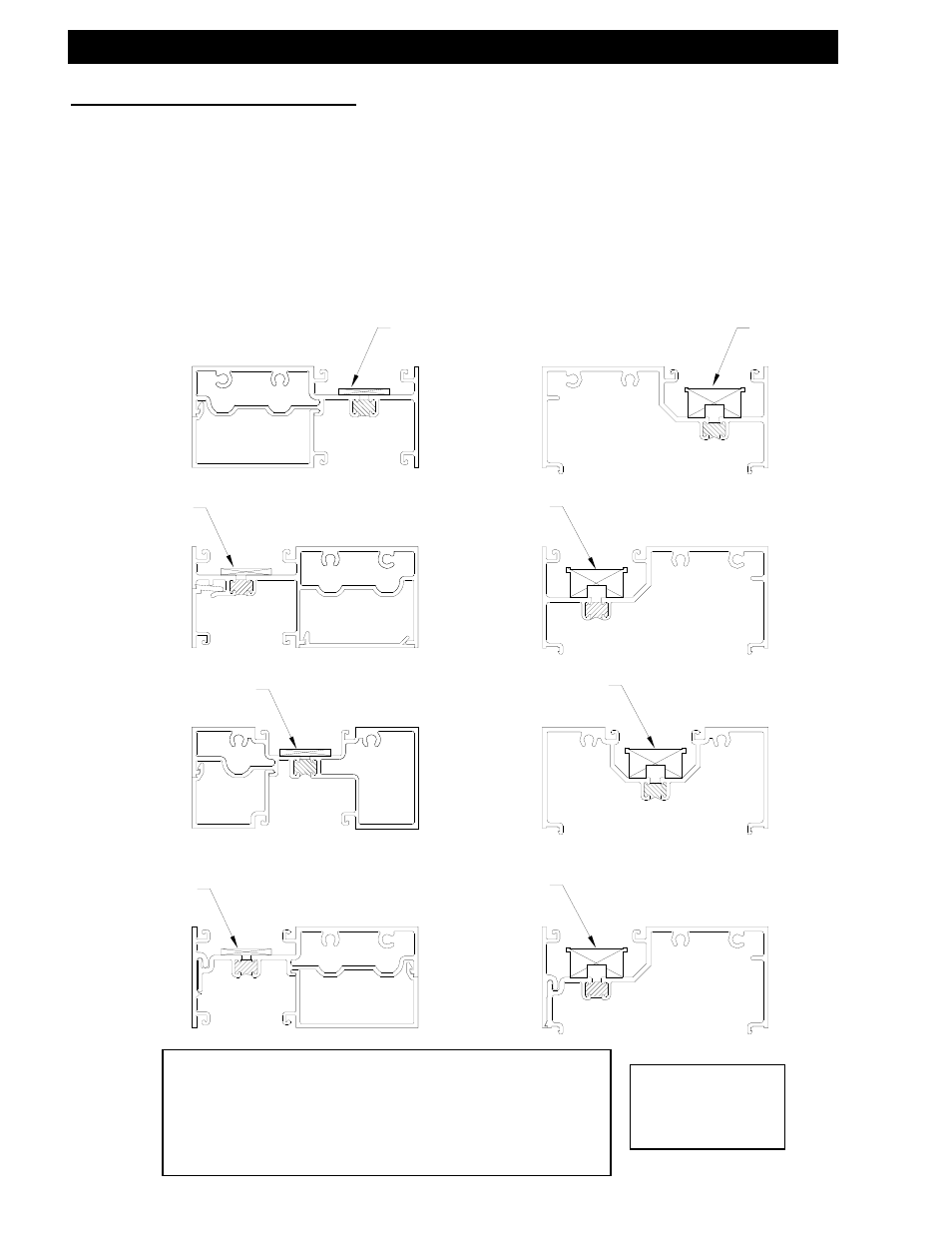

IDENTIFICATION OF GLASS POCKETS AND SETTING BLOCKS

8384

8382

HN92

HN32

HN92

8386

8365

8385

[FIG. 78]

[FIG. 82]

HN32

4 ½” SILLS &

HORIZONTALS

SIMILAR

Customer / Installer Note:

EFCO setting blocks are typically 4" in length with

different depths. If the glazing infill is "NOT BY EFCO"
and glazing sizes are larger than 40 square feet, then

the glazing details must be reviewed by the glazing

manufacturer for proper setting block size.
