Page 45: Inside or outside glazed

June 2012

PART NO. Y017

Page 45 of 90

Series 433 Triple Set Installation Instructions

SECTION IV: Unit Assembly

16C8

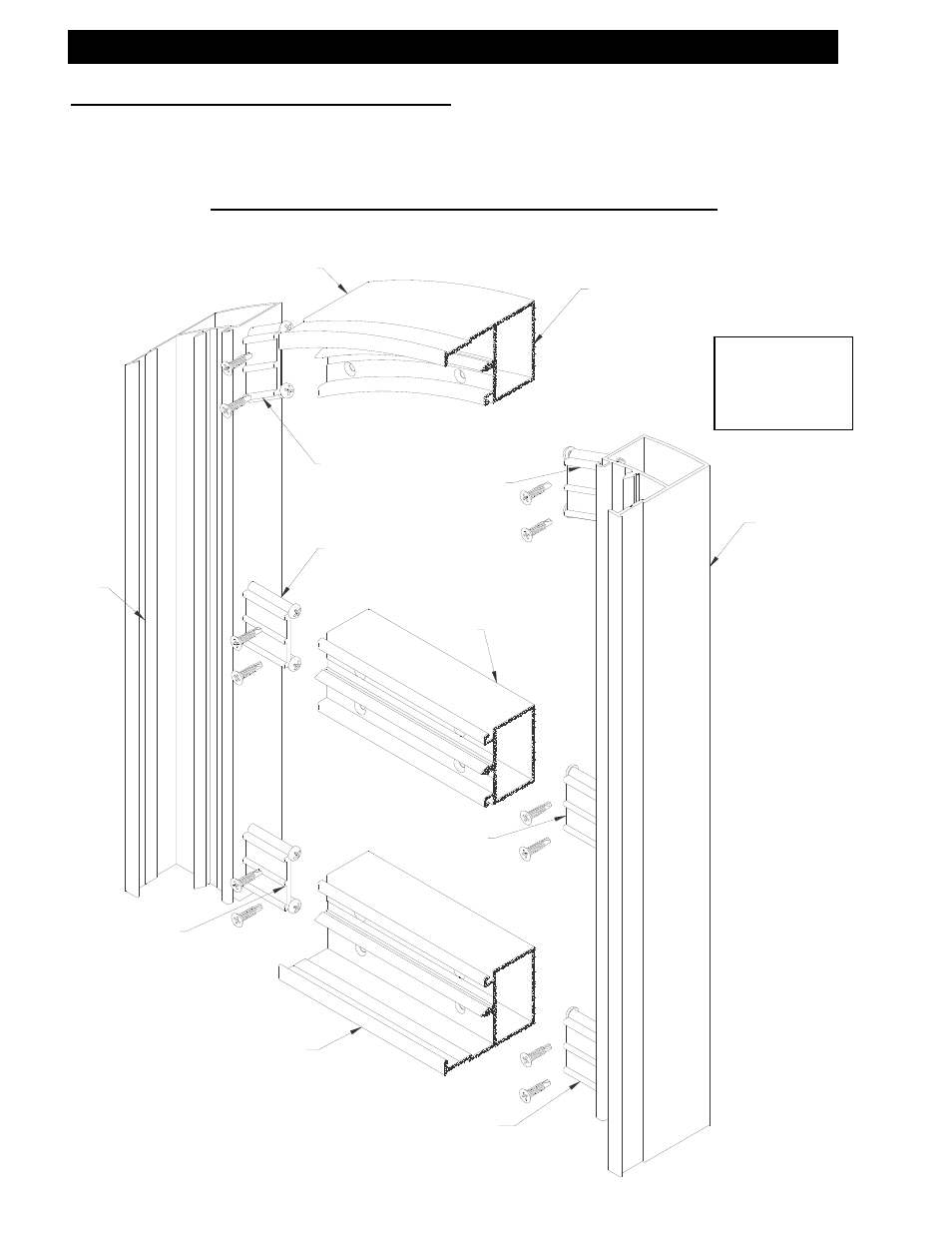

E. Rolled Arch Top & Sloped Top (Center Set)

Center Glazed Assembly for Slope or Arch Top

Inside or Outside Glazed

Shear block

packages come

with all required

fasteners.

CUSTOM

FABRICATED
SHEAR BLOCK

CUSTOM

FABRICATED

SHEAR BLOCK

KN92

16C8

16C7

16C8

ROLLED

16C8

KN92

Note: Clean off all

excess sealant after
assembly.

BUTTER THE ENDS OF ALL

HORIZONTALS WITH BUTYL TYPE

SEALANT AS SHOWN BY THE

SHADED AREAS PRIOR TO
ASSEMBLY OF THE UNITS.

Arch/Slope Top

material may be
attached to regular

Center-Set frame

material when
required.

Note: Wax Type Lubricate

may be required @

Assembly Fasteners
