3.3 Networking
Multiple prox.pad
plus Units Together
For multiple door applications, the prox.pad plus can
be networked together. When networking prox.pad
plus devices together on an RS-485 system, the
prox.pad plus units are all wired in parallel. This net-
working capability is available when connecting di-
rectly to your personal computer’s COM port or when
communicating over a computer network with the IEI
Gateway. Figure 3-10 shows an example of networking
multiple units together. The maximum number of de-
vices on a network is 32.
RS-485
ó
To Computer
Network
2-Brown (Data A)
3-White (Data B)
4-Green (Data GND)
P1
P3
P2
P5
P4
IEI Gateway

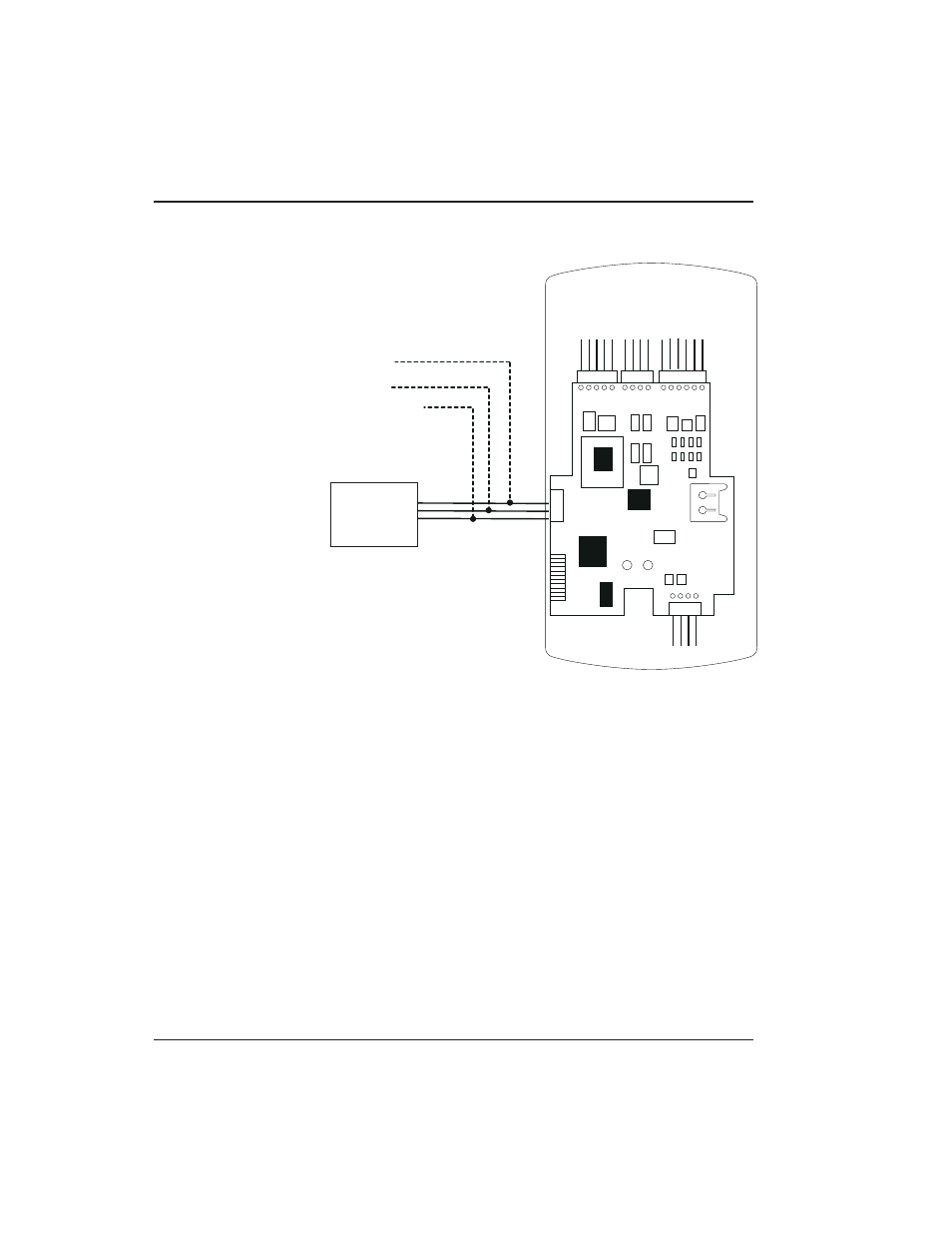

Figure 3-9 Connecting the prox.pad plus to a
Network
Chapter 3: Wiring
3.3 Networking Multiple prox.pad plus Units Together
3-14
prox.pad plus Install/Program. Manual, PPP, D4b
Part No. 6105679, Rev. 1.1
