Detex V40 EE - Manual

Detex Power Supply Catalog No: 90-800
(80-800 Battery back-up power supply available)
Centercase/Pushpad Modular SubAssembly
Owner's Copy
P/N: 100481
Pushpad Wrap
P/N: 101810-1 (3-0)
P/N: 101815-1 (4-0)
Non-Roller Strike
P/N: 100234-1
Standard
P/N: 100088
Strike Shim
P/N: 100212
Plastic Template
Centercase Cover
99 Strike *, P/N: 100855-2
P/N: 101805-1
Endcap Bracket
Plastic Template
2" Narrow Stile
P/N: 101899
Mortise
Mortise Strike
P/N: 100480
Strike Shield
P/N: 100482
Strike Shim
98 Strike *, P/N: 100855-1
INSTALLATION INSTRUCTIONS FOR ARCHITECTURAL VALUE SERIES®
DELAYED EGRESS AND "H" MODELS (HURRICANE)
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com
EE
Modular Fillerplate Subassembly

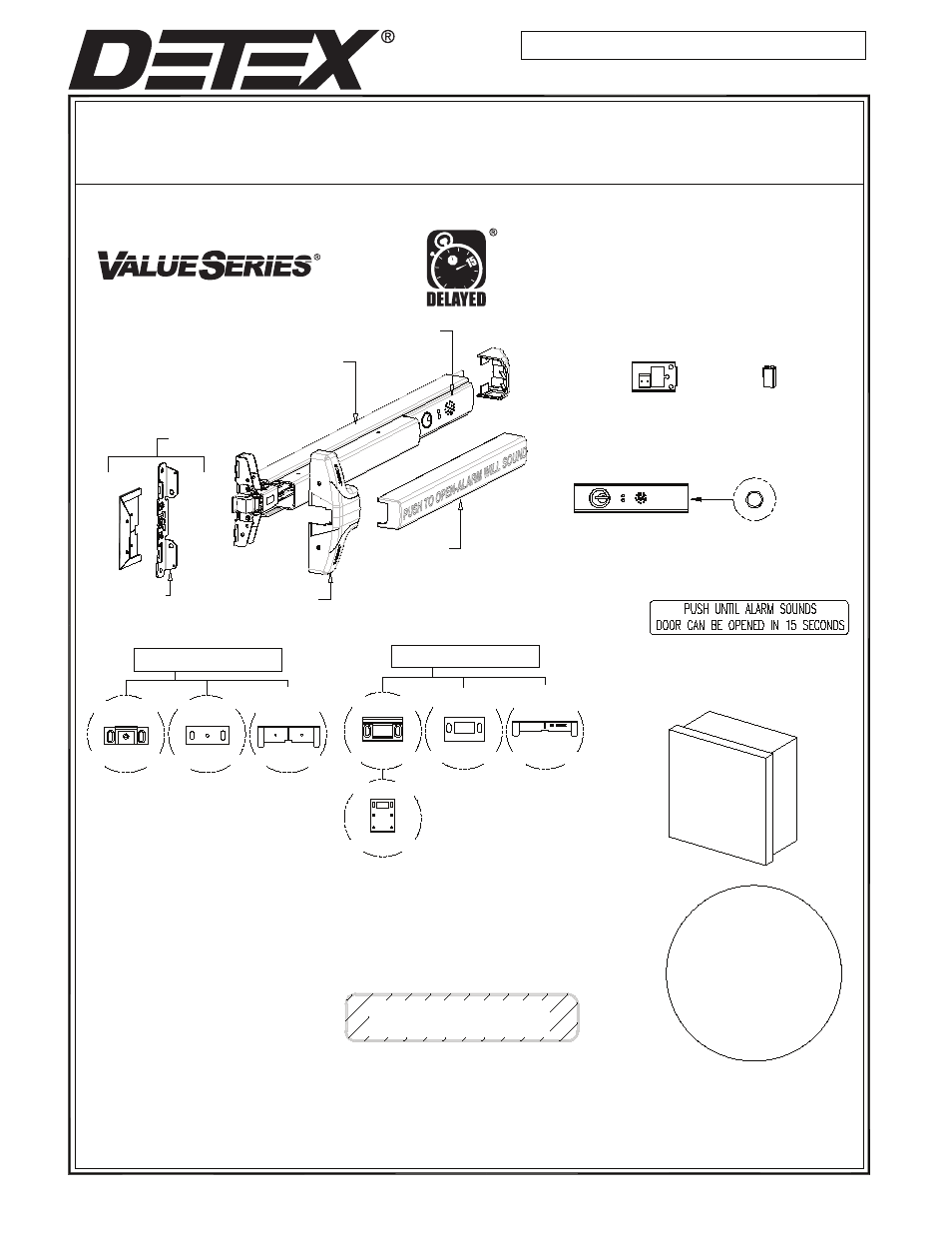

Parts Check List
V40
U.S. PATENT NUMBERS:
6009732
6205825B1
6532777B2
INTERNATIONAL PATENT NUMBER:
PCT6009732
P/N: 101822
Endcap
103185 June 3, 2010
P/N: 104360-X
P/N: ECL-395-X
Door Sign
- Glass Bead Kit
- Sex Nuts
- Tamper Kit
- Double Door Strike Kit
- Key Stop Kit
- Narrow Stile Kit
See
Optional Accessories
For:
Mortise cylinder not included with device.
Standard Yale type cam required.
DETEX
* Note:
Parts listed above will vary
according to product
configuration.
*Narrow Stile "NS" option
P/N: 101844-X
P/N: 100783
Hex Nut
FOR SPECIAL LOCKING ARRANGEMENT:
THIS PRODUCT MUST BE CONNECTED INTO A FIRE ALARM SYSTEM PER NFPA CODE OR OTHER
REGULATIONS SO THAT, IN THE EVENT OF FIRE, THE TIME DELAY WILL BE BYPASSED. CONTACT
YOUR LOCAL CODE AUTHORITY TO VERIFY COMPLIANCE WITH FIRE AND BUILDING CODES.
THE DELAYED EGRESS DEVICE SHOULD BE ROUTINELY CHECKED FOR PROPER OPERATION AND
COMPLIANCE WITH FIRE AND BUILDING CODES
P/N: 103806-X
Use for ease of installation
Mounting plate
Subassembly
P/N: 100696-1
Plastic Template
P/N: 105032-X
S & R Fillerplate
Dual Connector
P/N 104382-X
Battery
P/N: PP-5567
103185 Page 1
