INSTALLATION INSTRUCTIONS FOR EAX-3500FK FLUSH MOUNT KIT
103166 September 28, 2007
Fasten device with
(4) #8-32 screws
Fasten to wall stud
(Holes provided)
Fasten to wall stud
(Holes provided)
8-1/2"
8-1/2"
Hole Size
NOTE: Device components
not shown for clarity
WARNING: Be careful to avoid plumbing and electrical when cutting into wall.
1. Locate vertical stud.
2. Cut 8-1/2" x 8-1/2" square hole. Insure stud is located on left or right edge of hole.

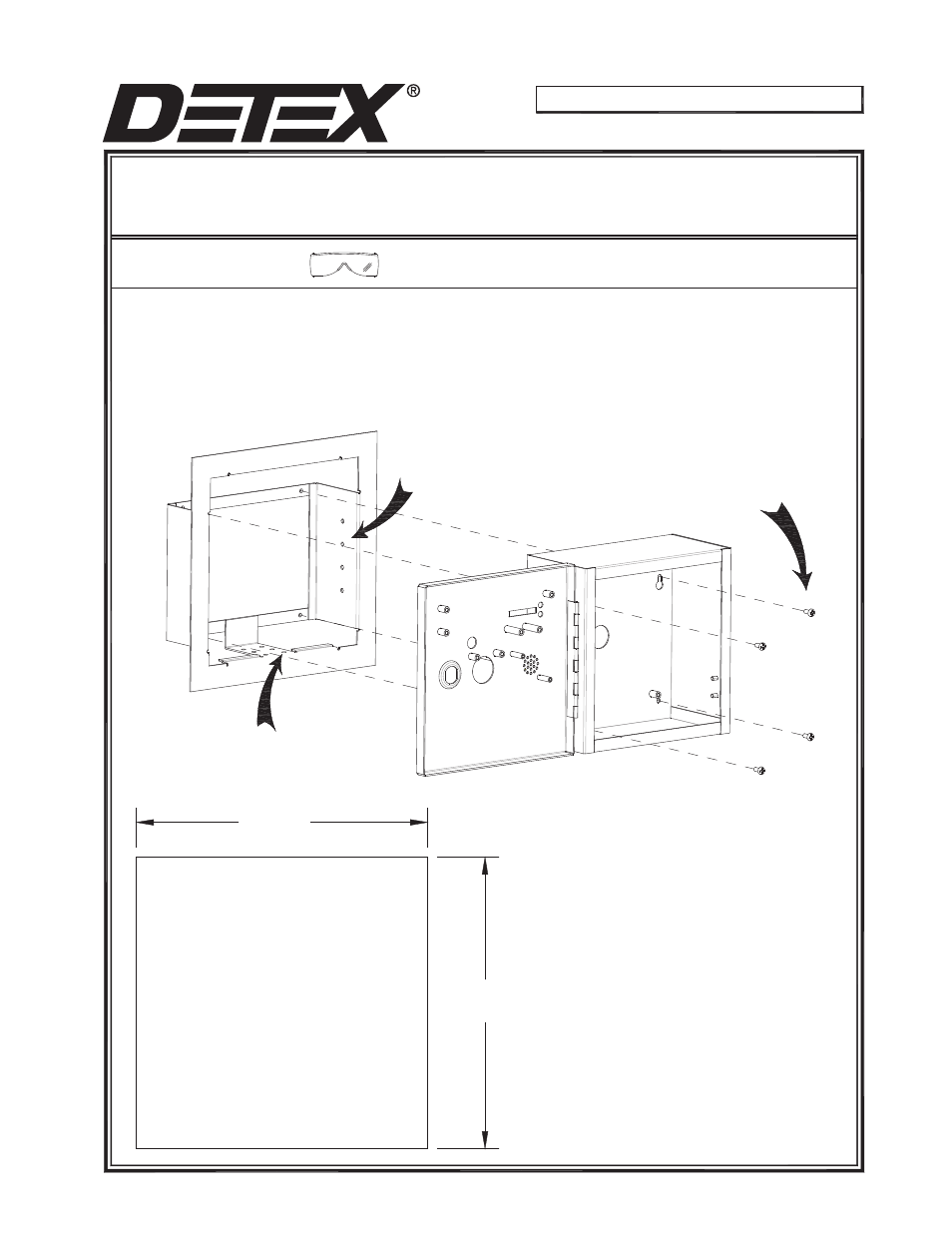

3. Adding a horizontal stud may be required. Fasten flush mount kit per illustration.
4. Take caution with screw head size due to space limitations.
