3.
Enter the following on the keypad:
46 # 00000 # 00000 # **
The yellow LED flickers for 10 seconds and then
blinks slowly.
4. Once the memory set-up is complete, re-assemble
the unit.
NOTE:
CONNECTING
DOOR
LOOP
IN-
PUT
Before powering up the prox.pad plus unit,
connect the Door Loops input to the “Loop Com-
mon.” This prevents “Forced Door” or “Propped
Door” conditions from developing upon power-up.
FORGET MASTER CODE
PCB
MASTER
CODE
SWITCH
(PROGRAM
SWITCH)
(ON REAR SIDE
OF PC BOARD)
CONTROLLER
HOUSING

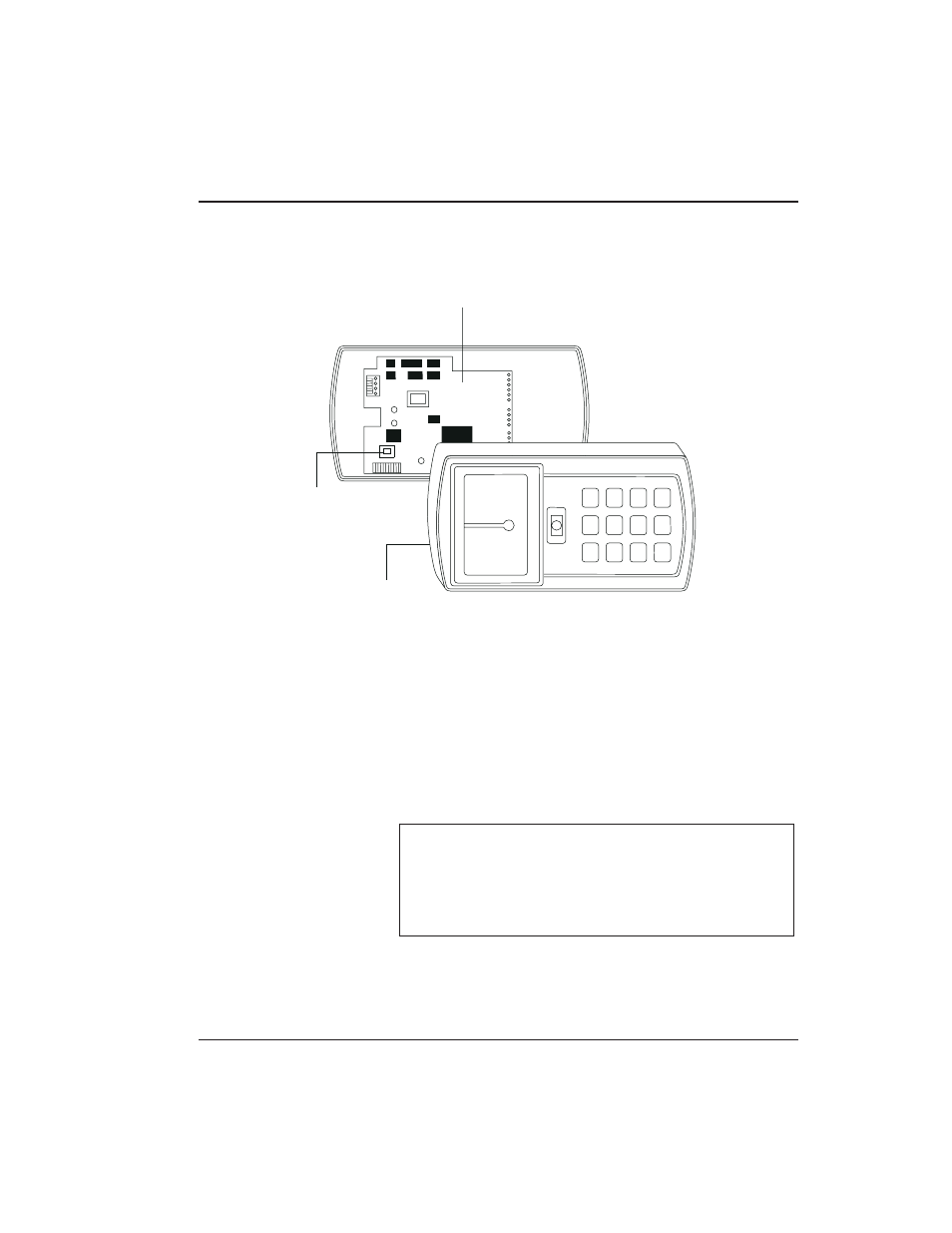

Figure 2-7 Program Button Location on Main
Circuit Board
2.6 Defaulting prox.pad plus Memory
Chapter 2: Installation
prox.pad plus Install/Program. Manual, PPP, D4b
2-17
Part No. 6105679, Rev. 1.1
